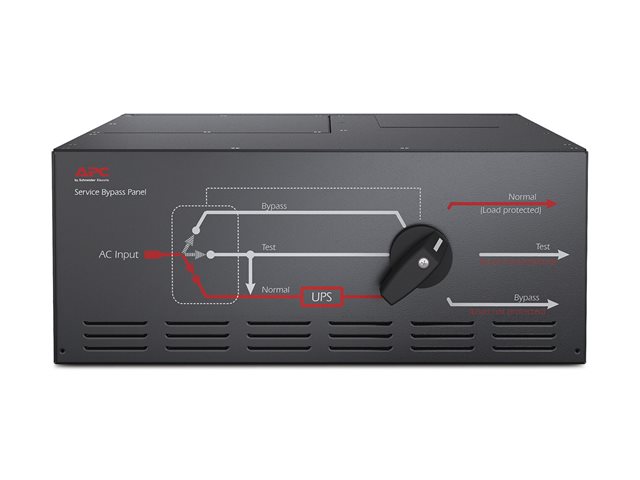

APC Service Bypass Panel

View all APC UPS Accessories - Visit the APC Store (SBP20KP) - (ECE2277719)

Service Bypass Panel 200/208/230/240V 125A HW Input/Output

(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€2859.75~~

€2164.65 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.

Features Summary

(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS

Specification Summary

Product Description

APC Service Bypass Panel - bypass switch - 20000 VA

Device Type

Bypass switch - rack-mountable

Weight

19.3 kg

Input Voltage

AC 200/208/220/230/240/380/400 V

Output Voltage

AC 200/208/220/230/240 V

Power Capacity

20000 VA

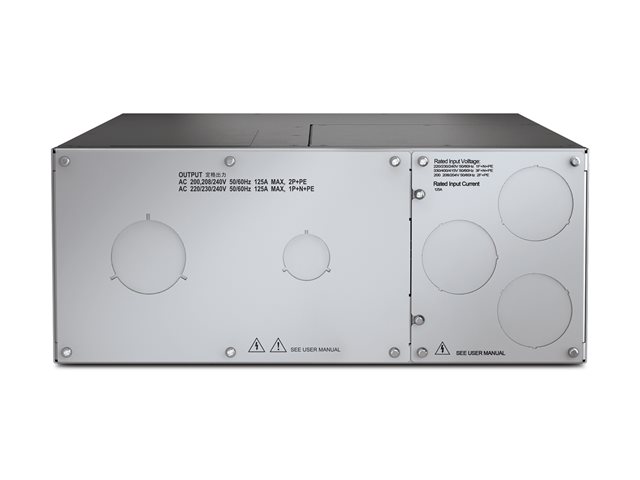

Input Connectors

3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (HN + E)

Output connectors

1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + E)

Colour

Black

Dimensions (WxDxH)

43.2 cm x 55.4 cm x 17.8 cm

Manufacturer Warranty

2-year warranty

Designed For

P/N: SURT10000XLT-1TF, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-D, SURT10000XLT-2TF3-TU, SURT10000XLTQ, SURT14KRMXLJ, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-CC, SURT8000RMXLICH, SYA12K16PXRK, SYA12K16PXR-TU2

Specifications

EAN / GTIN:

731304266952

General

Device Type

Bypass switch - rack-mountable

Colour

Black

Power Device

Input Voltage

AC 200/208/220/230/240/380/400 V

Input Voltage Range

AC 200 - 240 V

Frequency Required

50/60 Hz

Input Connectors

3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (HN + E)

Power Output Connectors Details

1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 3-wire (HN + E)

Output Voltage

AC 200/208/220/230/240 V

Max Electric Current

125 A

Power Capacity

20000 VA

Miscellaneous

Cables Included

Power cable

Rack Mounting Kit

Included

Features

Overload protection

Compliant Standards

CSA, GOST, EN 60950, UL 1778, IEC 60950, RoHS, REACH

Manufacturer Warranty

Service & Support

Limited warranty - parts - 2 years

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 95%

Dimensions & Weight

Width

43.2 cm

Depth

55.4 cm

Height

17.8 cm

Weight

19.3 kg

Dimensions & Weight (Shipping)

Shipping Width

61 cm

Shipping Depth

84.5 cm

Shipping Height

30.5 cm

Shipping Weight

31.4 kg

Compatibility Information

Designed For

P/N: SURT10000XLT-1TF, SURT10000XLT-1TF10K, SURT10000XLT-1TF3, SURT10000XLT-2TF3, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-BN, SURT10000XLT-2TF3-D, SURT10000XLT2TF3-T, SURT10000XLT-2TF3-TU, SURT10000XLT-2T-TU, SURT10000XLTQ, SURT10000XLT-TU, SURT14KRMXLJ, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLI, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-270504, SURT8000RMXLI-CC, SURT8000RMXLICH, SURT8000XLT-1TF5, SURT8000XLTW, SYA12K16P-TU, SYA12K16PXRK, SYA12K16PXR-TU, SYA12K16PXR-TU2, SYA8K16PXR-TU, SYA8K8P-TRADEUPS, SYA8K8P-TU
