Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

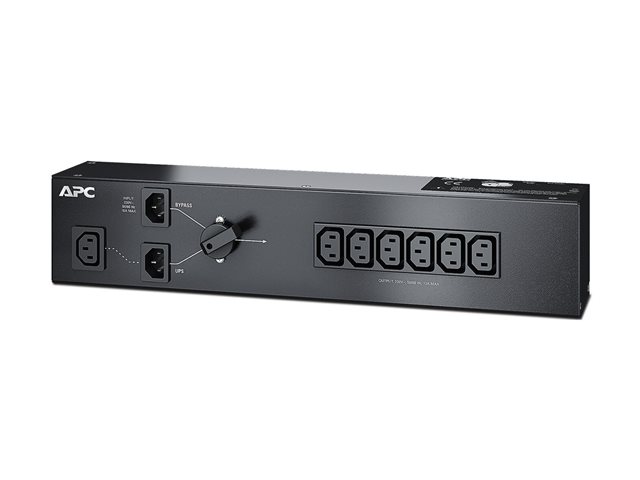

The APC Service Bypass Panel support voltage of 230V. It includes 6 IEC 60320 C13 and 1 IEC Jumpers outlets. It features a 2U rack-mount design and is rack mountable. The unit includes rack mounting brackets and user manual.


Features Summary

  • Quick Transfer Rate
    Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
  • (3) Breaker maintenance bypass panel to isolate the UPS from the critical load
    Load test port provides simple connection for full testing of a Symmetra PX UPS

Specification Summary

Product Description
APC Service Bypass Panel - power distribution unit - 1500 VA
Device Type
Power distribution unit - rack-mountable
Rack Size
2U
Weight
2 kg
Input Voltage
AC 230 V
Output Voltage
AC 230 V
Power Capacity
1500 VA
Input Connectors
2 x power IEC 60320 C14
Output connectors
7 x power IEC 60320 C13
Colour
Black
Dimensions (WxDxH)
43.2 cm x 7.6 cm x 8.9 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SMC1500I-2UC, SMC1500IC, SMT1000I-AR, SMT1000IC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI2UC, SMT1500RMI2UNC, SMT750RMI2UNC, SMX750INC, SRTL1000RMXLI, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC, SUA1000ICH-45, SUA1500I-IN, SURT1000RMXLI-NC, SURT1000XLI-NC

Specifications

EAN / GTIN:
0731304263593
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Colour
Black
Power Device
Input Voltage
AC 230 V
Input Voltage Range
AC 220 - 240 V
Frequency Required
50/60 Hz
Input Connectors
2 x power IEC 60320 C14
Power Output Connectors Details
7 x power IEC 60320 C13
Output Voltage
AC 230 V
Max Electric Current
10 A
Power Capacity
1500 VA
Miscellaneous
Cables Included
Power cable 2 m
Rack Mounting Kit
Included
Features
Built-in bypass switch, overload protection
Compliant Standards
VDE, RoHS Exemption 7b, REACH
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Dimensions & Weight
Width
43.2 cm
Depth
7.6 cm
Height
8.9 cm
Weight
2 kg
Dimensions & Weight (Shipping)
Shipping Width
46.3 cm
Shipping Depth
29.5 cm
Shipping Height
15.1 cm
Shipping Weight
3.5 kg
Compatibility Information
Designed For
P/N: SMC1500I, SMC1500I-2U, SMC1500I-2UC, SMC1500IC, SMT1000I, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1500I, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI1U, SMT1500RMI2U, SMT1500RMI2UC, SMT1500RMI2UNC, SMT750I, SMT750RMI2UNC, SMX1000I, SMX1500RMI2U, SMX1500RMI2UNC, SMX750I, SMX750INC, SRTL1000RMXLI, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC, SUA1000I, SUA1000ICH, SUA1000ICH-45, SUA1000R2ICH, SUA1000RMI1U, SUA1000RMI2U, SUA1000UXI, SUA1000UXICH, SUA1000XLI, SUA1500I, SUA1500ICH, SUA1500ICH-45, SUA1500I-IN, SUA1500IX38, SUA1500R2ICH, SUA1500RMI2U, SUA750I, SUA750ICH, SUA750ICH-45, SUA750RMI1U, SUA750RMI2U, SURT1000RMXLI, SURT1000RMXLI-NC, SURT1000UXI, SURT1000UXICH, SURT1000XLI, SURT1000XLICH, SURT1000XLI-NC
