Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The Saros PD6T model is a 2-way pendant speaker featuring a 6-1/2 inch woofer and wide-dispersion, horn-loaded 1 inch dome tweeter. A built-in 60 watt multi-tap transformer allows for use with 70 and 100 volt distributed speaker systems.
The Saros PD6T is designed to be suspended from a ceiling truss in an open-ceiling environment. Its clean, contoured enclosure achieves an attractive appearance in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, and office buildings. Weatherized construction allows for use in outdoor entertainment venues, patios, and swimming pools. To facilitate installation, a 12 ft length of wire rope with attached snap hook is supplied. Securing the wire rope to the truss and adjusting it to the desired length is accomplished quickly and easily using the provided gripple self-locking wire rope grip.

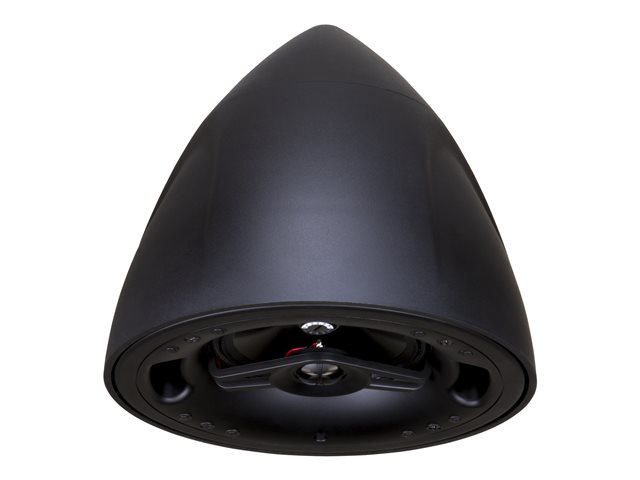

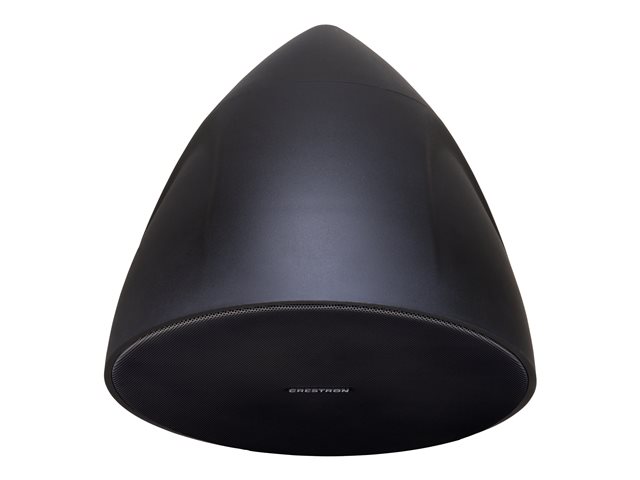

To achieve its sleek, sculpted appearance, the Saros PD6T employs a durable ABS plastic housing and "zero-bezel" frameless grille. Composed of steel, the grille is held in place by powerful magnets, eliminating any visible screws or other hardware. A safety tether is included to prevent the grille from ever presenting a falling hazard. Setting the 70/100 V transformer tap is performed via a screwdriver-adjustable control located on the speaker baffle behind the grille.
Wiring connections are provided on the top of the speaker adjacent to the suspension rigging point. Connecting the wiring is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in a multi-speaker application. A weather boot is included to protect the wiring connections from moisture.
The PD6T is topped off with a top cover, which conceals the wiring connections and suspension hardware for a very clean, contoured appearance. Saros PD6T speakers are available in white or black, and can be painted to blend with the surrounding architecture.
Features Summary
- Robust design
Crafted with a fiberglass-reinforced ABS body and featuring a paintable, textured finish, the Crestron Saros PD6T speaker is designed to withstand the elements. Its splashproof and weatherproof protection ensures durability in various environments, making it an ideal choice for both indoor and outdoor applications. - High-quality sound
The speaker offers a high-quality audio experience with a 2-way crossover system, ensuring clear sound separation. With a frequency response range of 40 - 20,000 Hz, it delivers deep bass and crisp highs. The polypropylene woofer and titanium tweeter drivers offer a balanced and immersive audio performance. - Versatile installation options
Thanks to its pendant design and detachable grilles, the Crestron Saros PD6T offers flexible installation options to suit any space. Its integrated transformer supports 70V/100V or 8 ohm operation, making it adaptable to various audio system setups.
Specification Summary
Product Description
Crestron Saros PD6T - speaker - for PA system
Product Type
Speaker - for PA system
Protection
Weatherproof, splashproof
Speaker Type
2-way - passive
Continuous Power
125 Watt
Frequency Response
40 - 20000 Hz
Integrated Transformer
70V/100V or 8 Ohm operation
Dimensions (WxDxH)
26.7 cm
Dimensions - Diameter
28.2 cm
Manufacturer Warranty
5-year warranty
