Product Type

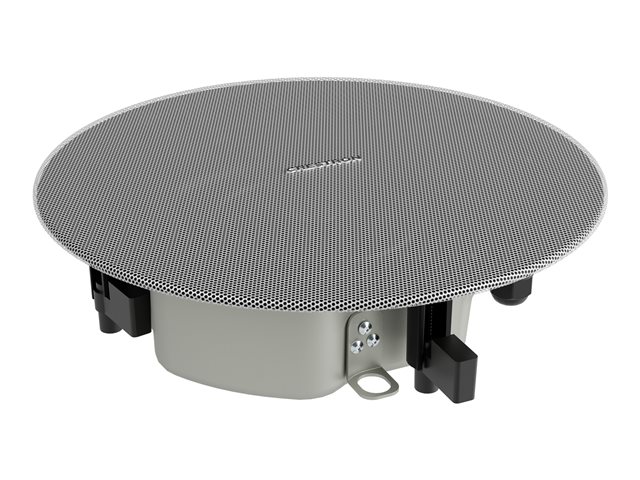

Speaker - for PA system
Protection
Splash-resistant
Enclosure Material
Zinc-plated steel, acrylonitrile butadiene styrene (ABS)
Design Features
Paintable grille, magnetically attached grilles
Grille Colour
Textured white
Speaker Type
Coaxial - 2-way - passive
Continuous Power Details
35 W (program)
Frequency Response (+/-3dB)
120 - 20000 Hz
Frequency Response (-10dB)
100 - 20000 Hz
Sensitivity
85 dB (1W@1m)
Crossover Frequency
2500Hz
Integrated Transformer
70V/100V or 8 Ohm operation
Recommended Placing
In-ceiling mounted, flush mount
Driver Details
Speaker: woofer driver - 4" - polypropylene ¦ Speaker: tweeter driver - 0.98" - titanium - dome
Connector Type
Speaker input (bare wire)
Included Accessories
Safety tether, tile bridge
Compliant Standards
IPX5, FCC Part 15 B, UL 2043, UL 1480, UL 94 V-0
Cutout & Mounting Dimensions
Service & Support
Limited warranty - parts and labour - lifetime
Min Operating Temperature
-19 °C
Max Operating Temperature
49 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
