HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4

Images Manuals

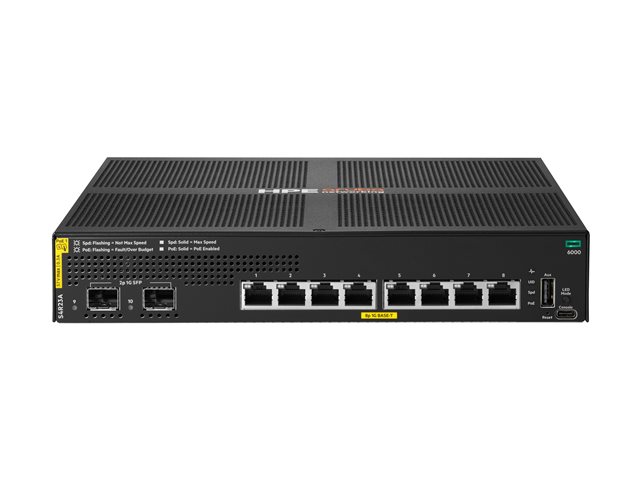

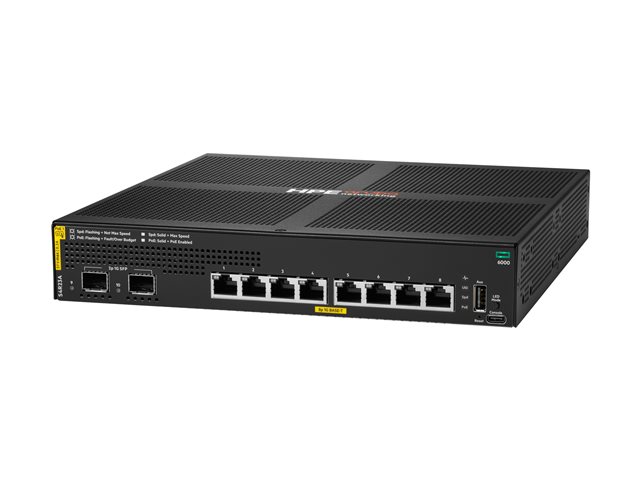

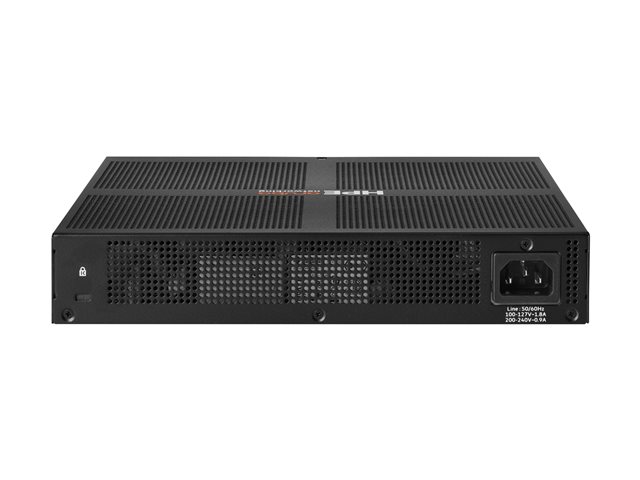

HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch

Images for illustrative purposes

HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch

View all HPE Uncategorised - Visit the HPE Store (S4R23A) - (WCES4R23A)

Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch - switch - 8 ports - Managed - rack-mountable

Robust performance
Adaptive connectivity
Flexible installation options
Enhanced security features
Resilient design

FREE Delivery on orders over €250

1 Available to Ship
Order within 5Hrs 4Mins for: FREE Delivery (8 Jun or 9 Jun)

€339.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch delivers efficient networking solutions for a variety of environments. This switch has a switching capacity of 20 Gbps and a throughput of 14.8 Mpps, ensuring seamless data transfer within the network. With support for 8 ports of 10/100/1000 Base-T PoE+ and 2 Gigabit SFP uplink ports, this switch is designed for flexibility and scalability in networking setups.

Equipped with advanced security features, including SSL encryption and multiple authentication methods like RADIUS and TACACS+, the switch provides a secure networking experience. Additionally, its fanless design contributes to quiet operation, and it is compliant with numerous standards ensuring robust performance in diverse conditions, suitable for both rack-mountable and wall-mountable installations.

Specification Summary

Product Description

HPE Aruba Networking CX 6000 8p 10M/100M/1G Class4 PoE 2p SFP 1G 67W Switch - switch - 8 ports - Managed - rack-mountable

Device Type

Switch - 8 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

67 W

Performance

Switching capacity: 20 Gbps ¦ Throughput: 14.8 Mpps ¦ Latency (1 Gbps): 3.2 µs

Capacity

Packet buffer size: 12.38 MB ¦ Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 host table (ARP): 1024 ¦ IPv6 host table (ND): 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 1914 ¦ IPv6 ACL entries (ingress): 957 ¦ MAC ACL entries (ingress): 1914

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Features

PoE Class 4, CoS, ToS, TPM, Layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support, security slot (Kensington security lock compatible), fanless

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az

Power

AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH)

25.4 cm x 25.5 cm x 4.39 cm

Weight

1.88 kg

System Requirements

AOS-CX

Pricing Type

BTO

Manufacturer Warranty

Limited lifetime warranty

Specifications

General

Device Type

Switch - 8 ports - Managed

Enclosure Type

Rack-mountable, wall-mountable 1U

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

67 W

Performance

Switching capacity: 20 Gbps ¦ Throughput: 14.8 Mpps ¦ Latency (1 Gbps): 3.2 µs

Capacity

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az

Processor

1 x ARM Cortex-A9: 1.016 GHz

RAM

2 GB DDR3 SDRAM

Flash Memory

8 GB

Expansion / Connectivity

Interfaces

8 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 ¦ 2 x Gigabit LAN SFP uplink ¦ 1 x USB-C console ¦ 1 x USB Type A host

Power

Power Device

Internal power supply

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Stand by

10.9 Watt

Miscellaneous

Rack Mounting Kit

Included

Compliant Standards

IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, KC 62386-1:2021, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3

Pricing Type

BTO

Software / System Requirements

OS Required

AOS-CX

Dimensions & Weight

Width

25.4 cm

Depth

25.5 cm

Height

4.39 cm
