Intel Server Board S2600STQR - motherboard - SSI E

Images Manuals

Images for illustrative purposes

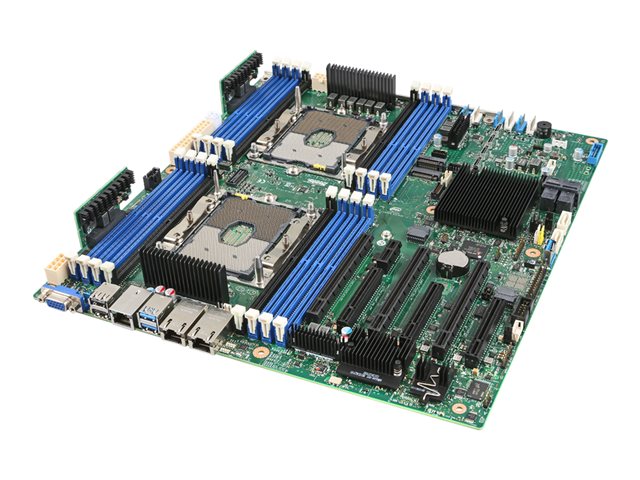

Intel Server Board S2600STQR

Name: Intel Server Board S2600STQR
Brand: INTEL
SKU: ECE6881487
Price: 965.37 EUR
Availability: OutOfStock

View all INTEL Atom/ITX Motherboards - Visit the INTEL Store (S2600STQR) - (ECE6881487)

Model: Intel Server

Server Board S2600STQR - Motherboard - SSI EEB - Intel - Socket P - 2 CPUs supported - C628 Chipset - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics

Versatile storage options
High-capacity memory support
Robust network capabilities
Enhanced system security
Advanced management features

FREE Delivery on orders over €250

0 Available to Ship
Restock 19-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€1549.33~~

€965.37 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Intel Data Center Blocks (Intel DCB) are purpose built, fully validated server systems that can help partners accelerate time to market with innovative server solutions built with the latest technology. In addition to predefined configurations, Intel will also build servers to your specifications from a list of validated components optimizing the performance and costs when a more custom system is needed.

Specification Summary

Product Description

Intel Server Board S2600STQR - motherboard - SSI EEB - Intel - Socket P - C628

Product Type

Motherboard - SSI EEB

Processor

Intel

Chipset Type

Intel C628

Processor Socket

2 x Socket P

Compatible Processors

Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt)

Max RAM Size

2 TB

RAM Supported

16 DIMM slots - DDR4, ECC, registered, Load-Reduced

Storage Ports

10 x SATA-600, 2 x NVMe port, 2 x M.2

USB / FireWire Ports

3 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 via headers)

Dedicated Video Memory

16 MB DDR4 SDRAM

LAN

2 x 10 Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

5032037151047

General

Product Type

Motherboard - SSI EEB

Processor

Intel

Chipset Type

Intel C628

Processor Socket

Socket P

Max Processors Qty

Compatible Processors

Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Maximum TDP 205 Watt)

Supported RAM

Max Size

2 TB

Technology

DDR4

Bus Clock

2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz

Supported RAM Integrity Check

ECC

Registered or Buffered

Registered, Load-Reduced

Graphics

Dedicated Video Memory

16 MB DDR4 SDRAM

LAN

Network Interfaces

2 x 10 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots

2 x CPU ¦ 16 x DIMM 288-pin (1.2 V) ¦ 3 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x8

Storage Interfaces

Intel C628: PCIe 3.0 -connectors: 2 x NVMe port ¦ Intel C628: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ Intel C628: SATA-600 / PCIe -connectors: 2 x M.2 ¦ Intel C628: SATA-600 -connectors: 2 x mini-SAS HD

RAID Features

Software RAID 0/ 1 / 10

Interfaces

2 x LAN (10Gigabit Ethernet)

Internal Interfaces

1 x USB 3.0 - Type A ¦ 1 x USB 3.0 - header ¦ 1 x serial

Features

BIOS Type

Intel

BIOS Features

IPMI 2.0 support

Hardware Features
