HPE Aruba Networking AP-755 (RW) - Campus - radio

Images Manuals

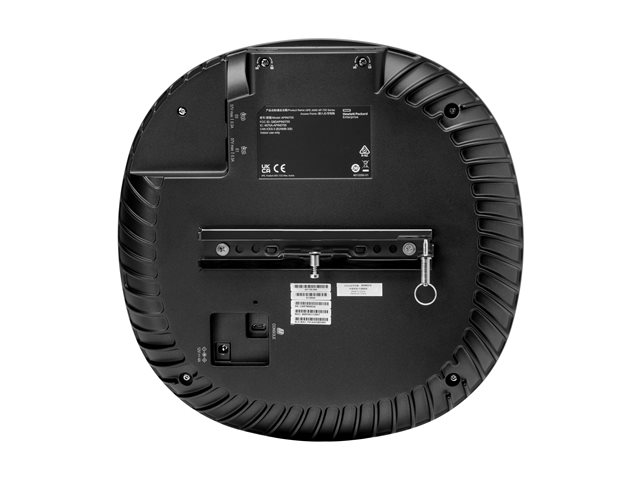

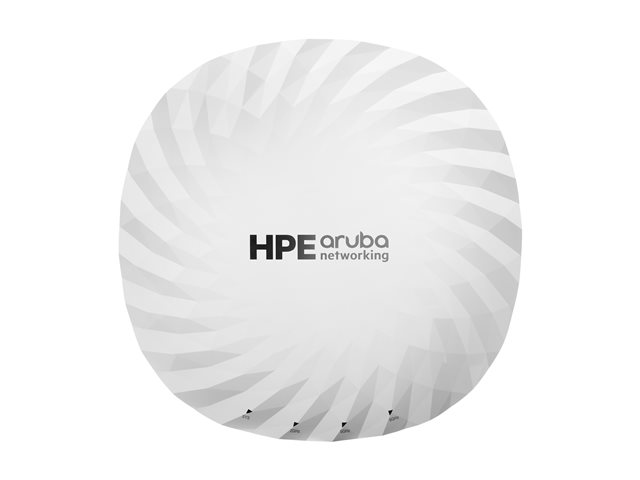

Images for illustrative purposes

HPE Aruba Networking AP-755 (RW)

Name: HPE Aruba Networking AP-755 (RW)
Brand: HPE
SKU: WCES0H10A
Price: 10655.88 EUR
Availability: InStock

View all HPE Access Points - Visit the HPE Store (S0H10A) - (WCES0H10A)

Model: HPE Aruba

Aruba Networking AP-755 (RW) - Campus - radio access point - Wi-Fi 7

Flagship Wi-Fi 7 Performance
Simplified Access with Enhanced Security
AP as an IoT Platform
Energy Saving and Self-locating

FREE Delivery on orders over €250

4 Available to Ship
Order within 10Hrs 16Mins for: FREE Delivery (8 Jun or 9 Jun)

€10655.88 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Aruba Networking 750 Series Campus Access Points are our flagship Wi-Fi 7 Access Points that deliver impressive wireless performance, strengthen network security, provide precise location-based services, and offer an IoT platform with enterprise-grade security, enabling enterprises to fully realize the value of their wireless investment and unlock operational efficiencies. This high-performance access point is designed with three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10 Gbps Ethernet ports, dual IoT radios, built-in GNSS receiver, and patented Ultra Tri-band (UTB) filtering for high capacity, fast, and resilient connectivity with enhanced security. HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central provide intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 750 series include a limited lifetime warranty.

Features Summary

Flagship Wi-Fi 7 Performance
Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multi gigabit traffic, and less interference.
With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), it delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10 GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the Access Point where it receives the strongest radio signal.
Patented Ultra Tri band filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
Simplified Access with Enhanced Security
The HPE Aruba Networking 750 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
MACsec-capable 10 GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The APs simplify policy enforcement by using the Policy Enforcement Firewall (PEF) to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking Access Points include an installed Trusted Platform Module (TPM) for protected storage of credentials, keys, and boot code.
AP as an IoT Platform
The HPE Aruba Networking 750 Series Campus Access Point can serve as flexible IoT platforms that bolsters network security and provide coverage for a broad range of IoT devices without the need for network overlays.
It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT Operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Energy Saving and Self-locating
The HPE Aruba Networking 750 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the Access Points that serve as reference points for client devices and other technologies using fine time measurement.
It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
Built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization sustainability initiatives.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent Power Monitoring provides energy consumption insights as APs continuously monitor and report hardware energy usage.

Specification Summary

Product Description

HPE Aruba Networking AP-755 (RW) - Campus - radio access point - Wi-Fi 7

Device Type

Radio access point

Packaged Quantity

5 (specifications are for single item)

Form Factor

Ceiling mountable - indoor

Data Link Protocol

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee

Frequency Band

2.4 GHz, 5 GHz, 6 GHz

Performance

Maximum data rate (5 GHz): 5.8 Gbps ¦ Maximum data rate (2.4 GHz): 1.4 Gbps ¦ Maximum data rate (6 GHz): 11.5 Gbps ¦ Maximum tri-band aggregate data rate: 18.7 Gbps

Capacity

Spatial streams: 4 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37

OS Required

ArubaOS 10.7.0.0

Power Over Ethernet (PoE) Supported

PoE Class 6

Pricing Type

BTO

Dimensions (WxDxH)

26 cm x 26 cm x 5.7 cm

Weight

1.53 kg

Manufacturer Warranty

Limited lifetime warranty

Specifications

General

Packaged Quantity

5 (specifications are for single item)

Device Type

Radio access point

Ruggedized Design

Indoor

Built-in Devices

GNSS receiver, barometric pressure sensor

Width

26 cm

Depth

26 cm

Height

5.7 cm

Weight

1.53 kg

Networking

Form Factor

Ceiling mountable

Connectivity Technology

Wireless

Line Coding Format

CCK, OFDM, BPSK, 16 QAM, 64 QAM, 256 QAM, 1024 QAM, 4096 QAM, DSSS, QPSK

Data Link Protocol

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), Bluetooth 5.4 LE, ZigBee

Spread Spectrum Method

OFDMA, DSSS, OFDM

Frequency Band

2.4 GHz, 5 GHz, 6 GHz

Performance

Maximum data rate (5 GHz): 5.8 Gbps ¦ Maximum data rate (2.4 GHz): 1.4 Gbps ¦ Maximum data rate (6 GHz): 11.5 Gbps ¦ Maximum tri-band aggregate data rate: 18.7 Gbps

Capacity

Spatial streams: 4 ¦ Associated client devices per radio: 512 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 37

Status Indicators

System, status, radio

Features

Advanced Cellular Coexistence (ACC), Intelligent Power Monitoring (IPM), Trusted Platform Module (TPM), Low Density Parity Check (LDPC), Cyclic Delay Diversity (CDD), cyclic shift diversity (CSD), packet aggregation A-MPDU, packet aggregation A-MSDU, Target Wait Time (TWT), Transmit Beam-forming (TxBF) ready, security slot (Kensington security lock compatible), Very High Throughput (VHT) support, Space Time Blocking Code (STBC), Maximum Ratio Combining (MRC), 4x4 MIMO technology, 160MHz bandwidth support, HPE SmartRate, automatic thermal shutdown, Advanced IoT Coexistence (AIC), Multi-Link Operation (MLO)

Encryption Algorithm

WPA, WPA2, WPA2-MPSK, WPA3-Enterprise, WPA3-Enhanced Open

Compliant Standards

IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11be

Aerial

Antenna

Internal

Directivity

Omni-directional

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth Low Energy (LE), Zigbee

Expansion / Connectivity

Interfaces

2 x 2.5 GBase-T - RJ-45 ¦ 2 x USB 2.0 (host) - Type A ¦ 1 x console - micro-USB

Miscellaneous

MTBF

569,000 hours

Compliant Standards

FCC, ISED, RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU, IEC/EN/UL 60950, IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2, ETS 300 019 Class 3.2, ETS 300 019 Class 2.3, UL 2043

Pricing Type

BTO

Power

Power Over Ethernet (PoE) Supported

PoE Class 6

Software / System Requirements

OS Required

ArubaOS 10.7.0.0

Dimensions & Weight (Shipping)

Shipping Width

35 cm

Shipping Depth

32 cm

Shipping Height

8.3 cm

Shipping Weight

2.13 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 95% RH
