StarTech 16 Port Rackmount KVM Console with 6ft Cables, Integrated KVM Switch with 19" LCD Monitor, Fully Featured 1U LCD KVM Drawer- OSD KVM, Durable

Images for illustrative purposes

StarTech 16 Port Rackmount KVM Console with 6ft Cables, Integrated KVM Switch with 19" LCD Monitor, Fully Featured 1U LCD KVM Drawer- OSD KVM, Durable

Name: StarTech 16 Port Rackmount KVM Console with 6ft Cables, Integrated KVM Switch with 19" LCD Monitor, Fully Featured 1U LCD KVM Drawer- OSD KVM, Durable
Brand: STARTECH.COM
SKU: MMEV934368
Price: 1782.95 EUR
Availability: InStock

View all STARTECH.COM Monitors - Visit the STARTECH.COM Store (RKCONS1916K) - (MMEV934368)

Model: StarTech

StarTech 16 Port Rackmount KVM Console with 6ft Cables, Integrated KVM Switch with 19" LCD Monitor, Fully Featured 1U LCD KVM Drawer- OSD KVM, Durable 50,000 MTBF, USB + VGA Support - 19in. LCD KVM Console (RKCONS1916K) - KVM console - 19"

Maximize your IT budget, minimize your hassle
Maximize your screen space
Clutter-free monitoring
Hassle-free system integration

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

8 Available to Ship
Order within 7Hrs 35Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1921.12~~

€1782.95 Incl Vat

Bulk Pricing from €1756.21

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

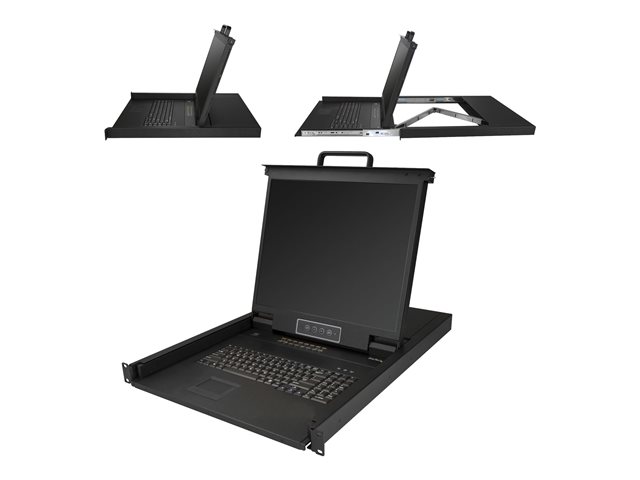

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Features Summary

Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity.
Clutter-free monitoring

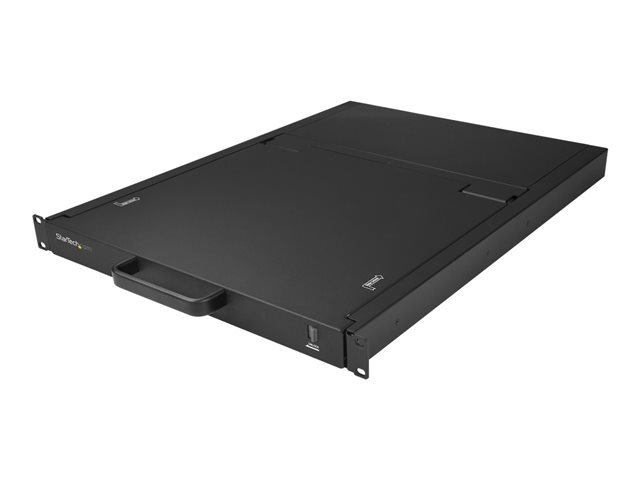

The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.

Specification Summary

Product Description

Device Type

KVM console - 19"

KVM Switch

PS/2, USB - 16 ports

Keyboard Layout

Daisy Chaining

Yes

Features

Keyboard, touchpad, 16 port KVM switch

Aspect Ratio

5:4

Native Resolution

1280 x 1024

Pixel Pitch

0.264 mm

Brightness

250 cd/m²

Contrast Ratio

1000:1

Colour Support

16.7 million colours

Input Connectors

VGA

Colour

Black

Dimensions (WxDxH)

48.3 cm x 64.3 cm x 4.3 cm

Height (Rack Units)

Weight

13.5 kg

Localisation

Australia, Japan, New Zealand, North America, United Kingdom, Europe

Compliant Standards

UL, FCC, RoHS, WEEE, PSE Mark, RCM

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030872539

General

Display Type

KVM console / TFT active matrix

Diagonal Size

19"

Daisy Chaining

Yes

Built-in Devices

16 port KVM switch

Aspect Ratio

5:4

Native Resolution

1280 x 1024

Pixel Pitch

0.264 mm

Brightness

250 cd/m²

Contrast Ratio

1000:1

Colour Support

16.7 million colours

Colour

Black

Dimensions (WxDxH)

48.3 cm x 64.3 cm x 4.3 cm

Height (Rack Units)

Weight

13.5 kg

Input

Type

Keyboard, touchpad

KVM

Type

KVM switch - 16 ports

Keyboard / Mouse Interface

PS/2, USB

Max Resolution

1280 x 1024

Connectivity

Interfaces

2 x VGA ¦ 2 x USB 2.0 ¦ 16 x KVM ¦ 2 x PS/2

Miscellaneous

Included Accessories

8 x M5 cage nuts, 8 x M5 screws, 4 x mounting rails

Cables Included

16 x keyboard / mouse / video cable

Rack Mounting Kit

Included

MTBF

50,000 hour(s)

Compliant Standards

UL, FCC, RoHS, WEEE, PSE Mark, RCM

Localisation

Australia, Japan, New Zealand, North America, United Kingdom, Europe

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
