Zyxel RGS200-12P - switch - 12 ports - Managed - r

Images Manuals

Images for illustrative purposes

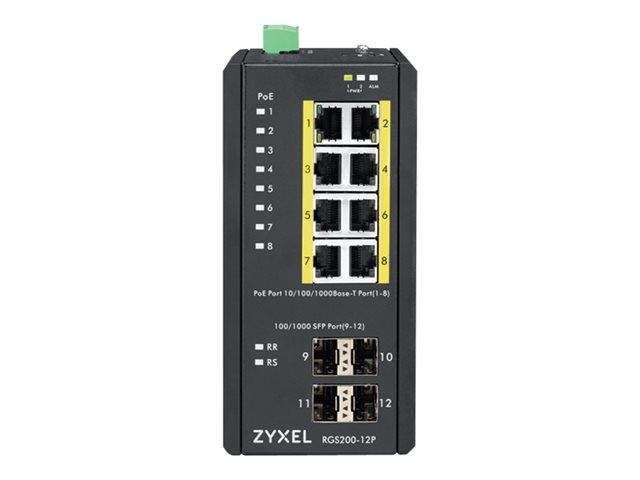

Zyxel RGS200-12P

View all ZYXEL Network Switches - Visit the ZYXEL Store (RGS200-12P-ZZ0101F) - (MMEB775510)

RGS200-12P - switch - 12 ports - Managed - rack-mountable

Rugged and reliable design for harsh environments
Quick failover for stable connectivity
Trouble-free installation and easy extendibility

FREE Delivery on orders over €250

2 Available to Ship
Order within 1Hrs 52Mins for: FREE Delivery (8 Jun or 9 Jun)

€1183.51 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the ultimate RGS Series of PoE switches with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The special mechanism enables RGS200-12P to operate in outdoor, factory or other harsh environments for surveillance. In addition, it is also easy to manage RGS200-12P through a user-friendly Webbased GUI.

Features Summary

Rugged and reliable design for harsh environments
Equipped with fanless and IP30 standard metal mechanism, the Zyxel RGS200-12P is able to deliver great thermal control and tolerate the dustiest deployments with ease, whether installed on a DIN rail or wall mounted for the most efficient use of cabinet space. Designed to handle temperatures ranging from -40°C to 75°C, the RGS200-12P can be placed in a variety of challenging environments and be adapted to broad range of field applications. When switching is applied normally in outdoor settings, ESD (electrostatic discharge), DC and Ethernet surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.
Quick failover for stable connectivity
When deployed in harsher conditions, such as factory or outdoor settings, the Zyxel RGS200-12P creates fault-tolerant networks with redundant ring technology and rapid self-recovery capability to prevent interruptions. In the event of downtime caused by a network error, the rapid failover will restore normal operation in less than 20 ms. The switch's dual DC power inputs and reverse power protection feature ensure continuous uptime and reliable operation.
Trouble-free installation and easy extendibility
This rugged L2 Managed PoE switch comes with eight (8) 10/100/1000 Base-T copper PoE ports and four (4) 100/1000-Base-X SFP fiber interfaces. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30 W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

Specification Summary

Product Description

Zyxel RGS200-12P - switch - 12 ports - Managed - rack-mountable

Device Type

Switch - 12 ports - Managed

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 4 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

240 W

Performance

Switching capacity: 24 Gbps ¦ Forwarding performance: 17.86 Mpps

Capacity

Layer 2 multicast groups: 256 ¦ ACL: 256 ¦ Queues per port: 8

MAC Address Table Size

8K entries

Jumbo Frame Support

9KB

Routing Protocol

IGMP, IGMPv2, IGMPv3

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, CLI, Telnet, SSH-2

Features

512KB packet buffer, fanless, CoS, full duplex mode, half duplex mode, flow control, Back Pressure Support, store and forward, auto-negotiation, Traffic Control, VLAN Stacking, tagged VLAN, Static Link Aggregation, port isolation, Storm Control, Unicast Storm Control, Broadcast Storm Control, failover protection, STP support, RSTP support, MSTP support, IGMP snooping, MLD snooping, ACL support, Port Security, MAC address filtering, RADIUS support, ARP inspection, QoS, LLDP support, SPQ, WRR queuing, DSCP support, ICMP, Syslog support, MIB, MIB II, IPv6 support, firmware upgradable, DHCP client, DHCP relay, DHCP snooping, SNTP support, schedule PoE, port mirroring, reset button, dual firmware images, Cable Diagnostics Function, 2 KV ligthning surge protection, 8KV ESD Protector

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab (LLDP)

Power

DC 12 - 58 V

Dimensions (WxDxH)

7.7 cm x 12.73 cm x 15.4 cm

Weight

1.45 kg

Localisation

Europe

Specifications

EAN / GTIN:

4718937592050

General

Device Type

Switch - 12 ports - Managed

Enclosure Type

DIN rail mountable, rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 4 x SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

240 W

Performance

Switching capacity: 24 Gbps ¦ Forwarding performance: 17.86 Mpps

Capacity

Layer 2 multicast groups: 256 ¦ ACL: 256 ¦ Queues per port: 8

MAC Address Table Size

8K entries

Jumbo Frame Support

9KB

Routing Protocol

IGMP, IGMPv2, IGMPv3

Remote Management Protocol

SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, CLI, Telnet, SSH-2

Encryption Algorithm

2048-bit SSL, SHA-2

Authentication Method

TACACS+

Features

Compliant Standards

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 PoE+ ¦ 4 x SFP

Power

Power Device

Internal power supply

Installed Qty

Max Supported Qty

Voltage Required

DC 12 - 58 V

Power Consumption Operational

255 watt

Miscellaneous

Included Accessories

DIN-rail mounting kit

Rack Mounting Kit

Included

MTBF

568,430 hours

Compliant Standards

IP30

Localisation

Europe

Dimensions & Weight

Width

7.7 cm

Depth

12.73 cm

Height

15.4 cm

Weight

1.45 kg

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C

Humidity Range Storage

5 - 90% (non-condensing)
