HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch

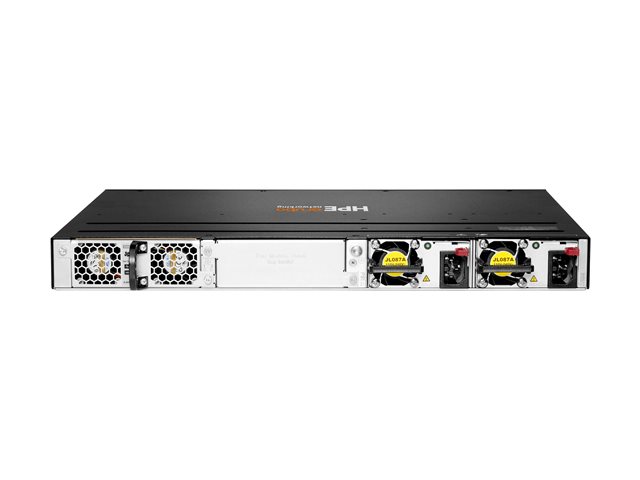

Images for illustrative purposes

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch

Name: HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
Brand: HPE
SKU: WCER8Q71A
Price: 7559.75 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (R8Q71A) - (WCER8Q71A)

Model: HPE Aruba

Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch - switch - Max. Stacking Distance 10 kms - 48 ports - Managed - rack-mountable

Automation and Analytics
Performance and Power
Smarter Segmentation

FREE Delivery on orders over €250

14 Available to Ship
Order within 5Hrs 44Mins for: FREE Delivery (8 Jun or 9 Jun)

€7559.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

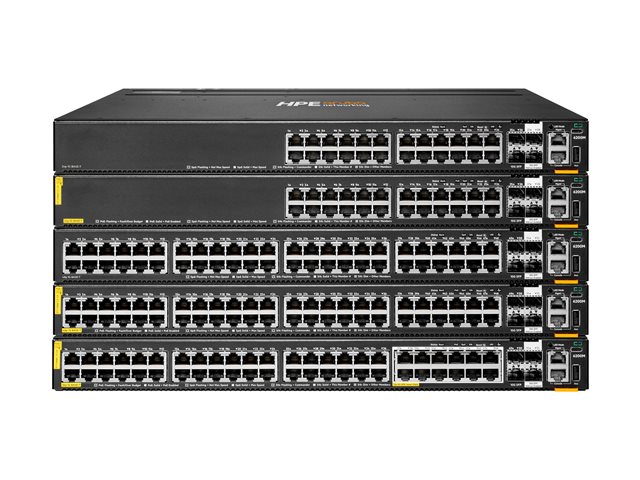

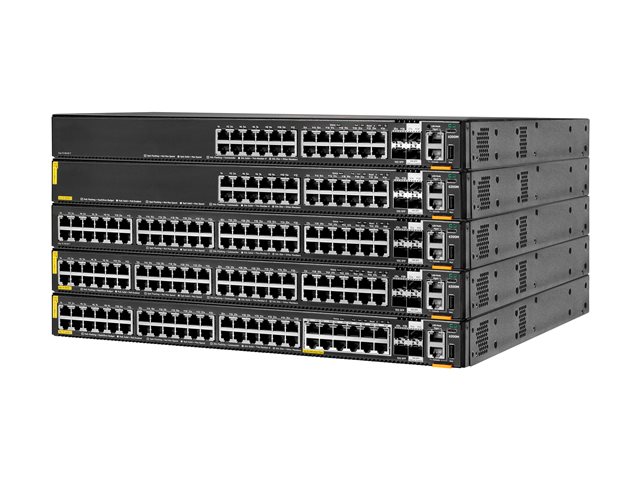

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Network Analytics Engine, the HPE Aruba Networking CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow's unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.

Specification Summary

Product Description

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch - switch - Max. Stacking Distance 10 kms - 48 ports - Managed - rack-mountable

Device Type

Switch - 48 ports - L3 - Managed - stackable

Enclosure Type

Front and side to back rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

36 x 10/100/1000 (4PPoE) + 12 x 1/2.5/5GBase-T (4PPoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)

Power Over Ethernet (PoE)

4PPoE

PoE Budget

1440 W

Performance

Switching capacity: 272 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Packet buffer size: 8 MB ¦ Stacking bandwidth: 40 Gbps

Capacity

Switched virtual interfaces (SVIs): 128 ¦ IPv4 host table capacity: 8000 ¦ IPv6 host table capacity: 8000 ¦ IPv4 routes (Unicast): 2000 ¦ IPv6 routes (Unicast): 2000 ¦ IGMP groups: 1000 ¦ MLD groups: 1000 ¦ IPv4 ACL entries (ingress): 1000 ¦ IPv6 ACL entries (ingress): 1000 ¦ MAC ACL entries (ingress): 1000 ¦ IPv4 ACL entries (egress): 512 ¦ IPv6 ACL entries (egress): 256 ¦ MAC ACL entries (egress): 512

MAC Address Table Size

16000 entries

Jumbo Frame Support

9220 bytes

Routing Protocol

OSPF, OSPFv2, OSPFv3, RIP-2, ECMP

Remote Management Protocol

SNMP, SNMP 2c, SNMP 3, CLI

Features

UTM, Auto MDIX, UDLD, VRRP support, Layer 2 switching, QoS, DWRR, CoS, ToS, DiffServ support, EQS, MIB, NTP, UDLD, RPVST+, BPDU, IGMP support, ARP support, DNS support, ECMP, TPM, web GUI management portal, SSM, security slot (Kensington security lock compatible)

Compliant Standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1s

Power

AC 100-120/200-240 V (50/60 Hz)

Dimensions (WxDxH)

44.2 cm x 38.5 cm x 4.4 cm

Weight

6.31 kg

System Requirements

AOS-CX

Pricing Type

BTO

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0190017535043

General

Device Type

Switch - 48 ports - L3 - Managed - stackable

Enclosure Type

Front and side to back rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

36 x 10/100/1000 (4PPoE) + 12 x 1/2.5/5GBase-T (4PPoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)

Power Over Ethernet (PoE)

4PPoE

PoE Budget

1440 W

Performance

Switching capacity: 272 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1 Gbps): 2.28 µs ¦ Latency (10 Gbps): 1.46 µs ¦ Packet buffer size: 8 MB ¦ Stacking bandwidth: 40 Gbps

Capacity

MAC Address Table Size

16000 entries

Jumbo Frame Support

9220 bytes

Max Units In A Stack

Routing Protocol

OSPF, OSPFv2, OSPFv3, RIP-2, ECMP

Remote Management Protocol

SNMP, SNMP 2c, SNMP 3, CLI

Encryption Algorithm

FIPS 140-2, MD5, SSL

Authentication Method

RADIUS, TACACS+

Features

Compliant Standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1s

Processor

1 x ARM: 1.8 GHz

RAM

8 GB DDR4 SDRAM

Flash Memory

16 GB

Expansion / Connectivity

Interfaces

36 x 10/100/1000 Base-T (4PPoE) RJ-45 PoE Class 6 ¦ 12 x 1/2.5/5GBase-T (4PPoE) RJ-45 PoE Class 6 ¦ 4 x 1/10Gbit LAN SFP+ 2x LRM; 2x LRM/MACSec 256 ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x USB Type A host

Power

Power Device

Internal power supply (not installed)

Max Supported Qty

Voltage Required

AC 100-120/200-240 V (50/60 Hz)

Power Consumption Operational

74 Watt

Power Consumption Stand by

59 Watt

Miscellaneous

Included Accessories

Rack kit (2 post), fan tray (field replaceable, hotswappable)

Compliant Standards

EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., BS EN 62368-1:2014 + A11:2017 2nd Ed, BS EN 62368-1:2020 + A11:2020 3rd Ed, UL 62368-1 Third Edition, CSA 22.2 No.62368-1 Third Edition, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 62368-1:2014 2nd Ed, IEC 62368-1:2018 Third Edition, CNS 15598-1:2020, EN 55032:2015 + A11:2020 Class A, EN 55035:2017+A11:2020, EN 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, FCC 47 CFR part 15B:2014 Class A, ICES-003 Class A, VCCI Class A, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, EN 60825-1:2014, IEC 60825-1:2014 Class 1, Laser Class 1, CISPR 35, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-2, EN 61000-3-3, RoHS, WEEE

Pricing Type

BTO

Software / System Requirements

OS Required

AOS-CX

Dimensions & Weight

Width

44.2 cm

Depth

38.5 cm

Height

4.4 cm

Weight

6.31 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

15 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

15 - 90% (non-condensing)
