HPE Aruba Networking CX 6000 24p 10M/100M/1G Class

Images Manuals

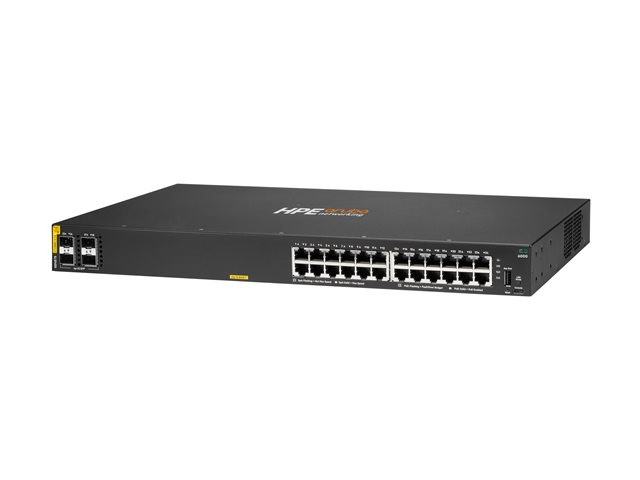

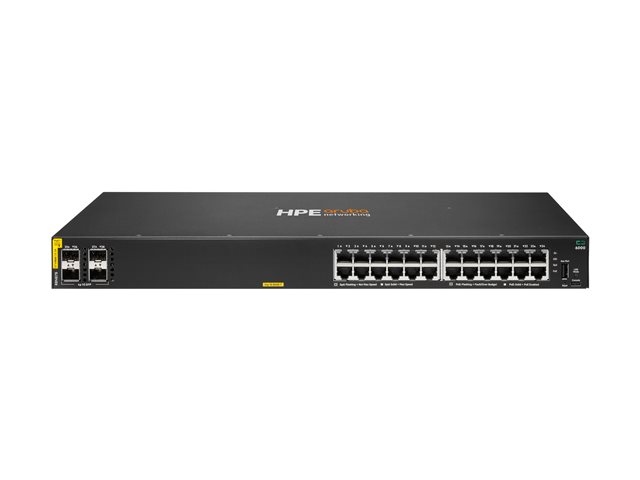

HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch

Images for illustrative purposes

HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch

Name: HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch
Brand: HPE
SKU: WCER8N87B
Price: 796.74 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (R8N87B) - (WCER8N87B)

Model: HPE Aruba

Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch - switch - 24 ports - Managed - rack-mountable

Efficient performance
Robust power management
Extensive protocol support
Comprehensive security options
Versatile installation options

FREE Delivery on orders over €250

69 Available to Ship
Order within 5Hrs 44Mins for: FREE Delivery (8 Jun or 9 Jun)

€796.74 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Aruba Networking CX 6000 24p 10M/100M/1G Class 4 PoE 4p SFP 1G 370 W Switch provides a solution for businesses looking to enhance their networking capabilities. With a switching capacity of 56 Gbps and 24 ports supporting 10/100/1000 Base-T, this switch ensures seamless connectivity and efficient data handling. The inclusion of 4 additional Gigabit SFP uplink ports allows for flexible network expansion, making it suitable for various network architectures.

Adaptability is key with this switch, as it supports Power over Ethernet (PoE+) with a budget of 370 W. This means that devices such as IP cameras and phones can be powered directly through the network cable, reducing the clutter of additional power sources. Designed for environments with operational temperature ranges from 0°C to 45°C and equipped with side-to-side airflow for efficient cooling, it is built to perform reliably in demanding settings. Security features including support for SSL encryption and multiple authentication methods such as RADIUS and TACACS+ ensure that your network is secure and manageable.

Specification Summary

Product Description

HPE Aruba Networking CX 6000 24p 10M/100M/1G Class4 PoE 4p SFP 1G 370W Switch - switch - 24 ports - Managed - rack-mountable

Device Type

Switch - 24 ports - Managed

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 56 Gbps ¦ Throughput: 41.6 Mpps ¦ Latency (1 Gbps): 1.5 µs

Capacity

Packet buffer size: 12.38 MB ¦ Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 host table (ARP): 1024 ¦ IPv6 host table (ND): 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 1914 ¦ IPv6 ACL entries (ingress): 957 ¦ MAC ACL entries (ingress): 1914

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Features

PoE Class 4, CoS, ToS, TPM, Layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az

Power

AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH)

44.25 cm x 26.82 cm x 4.39 cm

Weight

3.68 kg

System Requirements

AOS-CX

Pricing Type

BTO

Manufacturer Warranty

Limited lifetime warranty

Specifications

General

Device Type

Switch - 24 ports - Managed

Enclosure Type

Side to side airflow rack-mountable, wall-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

370 W

Performance

Switching capacity: 56 Gbps ¦ Throughput: 41.6 Mpps ¦ Latency (1 Gbps): 1.5 µs

Capacity

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features

PoE Class 4, CoS, ToS, TPM, Layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support

Compliant Standards

IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3az

Processor

1 x ARM Cortex-A9: 1.016 GHz

RAM

2 GB DDR3 SDRAM

Flash Memory

8 GB

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 ¦ 4 x Gigabit LAN SFP uplink ¦ 1 x USB-C console ¦ 1 x USB Type A host

Power

Power Device

Internal power supply

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Stand by

16 Watt

Miscellaneous

Rack Mounting Kit

Included

Compliant Standards

IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, KC 62386-1:2021, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35: 2016, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3

Pricing Type

BTO

Software / System Requirements

OS Required

AOS-CX

Dimensions & Weight

Width

44.25 cm

Depth

26.82 cm

Height

4.39 cm
