HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SF

Images Manuals

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch

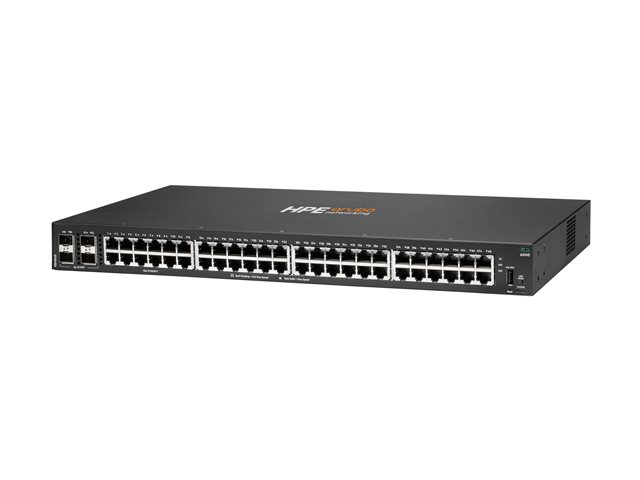

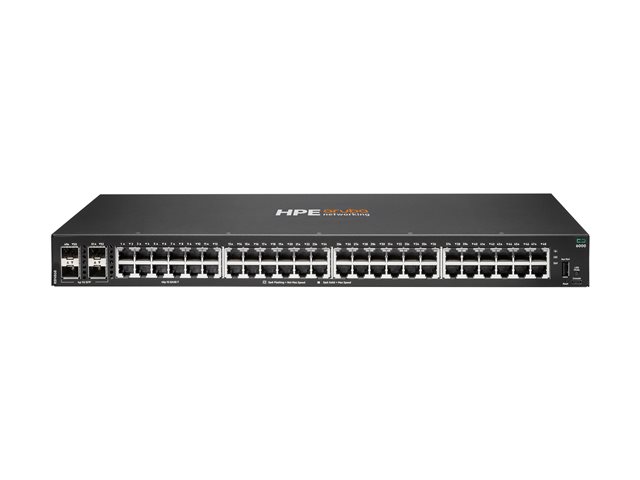

Images for illustrative purposes

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch

Name: HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch
Brand: HPE
SKU: WCER8N86B
Price: 689.75 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (R8N86B) - (WCER8N86B)

Model: HPE Aruba

Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch - switch - 48 ports - Managed - rack-mountable

Robust performance
Versatile connectivity options
Enhanced security features
Effective thermal management
Comprehensive remote management

FREE Delivery on orders over €250

35 Available to Ship
Order within 6Hrs 30Mins for: FREE Delivery (9 Jun or 10 Jun)

€689.75 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch delivers connectivity and advanced networking capabilities to meet diverse business needs. With a switching capacity of 104 Gbps and a throughput of 77.3 Mpps, this switch ensures performance for high-demand environments. It features 48 10/100/1000 Base-T ports and 4 Gigabit SFP uplink ports, providing scalable networking options for growing infrastructures.

Designed with reliability in mind, the switch incorporates side-to-side airflow for thermal management, operating efficiently in temperatures ranging from 0°C to 45°C. It includes essential security features such as SSL encryption and multiple authentication methods like RADIUS and TACACS+. Additionally, the built-in remote management support, including SNMP, MIB, and CLI, allows for integration and management within existing network frameworks.

Specification Summary

Product Description

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch - switch - 48 ports - Managed - rack-mountable

Device Type

Switch - 48 ports - Managed

Enclosure Type

Side to side airflow rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x Gigabit SFP (uplink)

Performance

Switching capacity: 104 Gbps ¦ Throughput: 77.3 Mpps ¦ Latency (1 Gbps): 1.9 µs

Capacity

Packet buffer size: 12.38 MB ¦ Switched virtual interfaces (SVIs) (dual stack): 16 ¦ IPv4 host table (ARP): 1024 ¦ IPv6 host table (ND): 512 ¦ IPv4 routes (Unicast): 512 ¦ IPv6 routes (Unicast): 512 ¦ IGMP groups: 512 ¦ MLD groups: 512 ¦ IPv4 ACL entries (ingress): 1914 ¦ IPv6 ACL entries (ingress): 957 ¦ MAC ACL entries (ingress): 1914

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Features

CoS, ToS, TPM, Layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support

Compliant Standards

IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x

Power

AC 100-127/200-240 V (50/60 Hz)

Dimensions (WxDxH)

44.25 cm x 24.65 cm x 4.39 cm

Weight

2.98 kg

System Requirements

AOS-CX

Pricing Type

BTO

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0190017784946

General

Device Type

Switch - 48 ports - Managed

Enclosure Type

Side to side airflow rack-mountable, wall-mountable 1U

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x Gigabit SFP (uplink)

Performance

Switching capacity: 104 Gbps ¦ Throughput: 77.3 Mpps ¦ Latency (1 Gbps): 1.9 µs

Capacity

MAC Address Table Size

8192 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

Remote Management Protocol

MIB, CLI, RMON, SNMP, SNMP 2, SNMP 3

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)

Features

CoS, ToS, TPM, Layer 2 switching, layer 3 routing, Address Resolution Protocol, LLDP, UTM, UDLD, RPVST+, RSTP support, MSTP support

Compliant Standards

IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3x

Processor

1 x ARM Cortex-A9: 1.016 GHz

RAM

2 GB DDR3 SDRAM

Flash Memory

8 GB

Expansion / Connectivity

Interfaces

48 x 10/100/1000 Base-T RJ-45 ¦ 4 x Gigabit LAN SFP uplink ¦ 1 x USB-C console ¦ 1 x USB Type A host

Power

Power Device

Internal power supply

Voltage Required

AC 100-127/200-240 V (50/60 Hz)

Power Consumption Stand by

18.9 Watt

Miscellaneous

Rack Mounting Kit

Included

Compliant Standards

IEC/EN 62368-1:2014, IEC/EN 62368-1:2018, UL 62368-1:2019 Ed.3, CSA C22.2 No. 62368-1:19 Third Edition, CNS 15598:2020, VCCI-CISPR 32 Class A, CNS 15936 Class A, FCC CFR 47 Part 15 Class A, EN 55032:2015/A11:2020, CISPR-32 Class A, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32:2015 Class A, IEC/EN 60825-1:2014 Class 1, Laser Class 1, CISPR 35:2017, EN 55035:2017/A11:2020, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3

Pricing Type

BTO

Software / System Requirements

OS Required

AOS-CX

Dimensions & Weight

Width

44.25 cm

Depth

24.65 cm

Height

4.39 cm
