HPE Aruba 9004 (EG) - gateway - ZigBee, NFC, Bluet

Images Manuals

Images for illustrative purposes

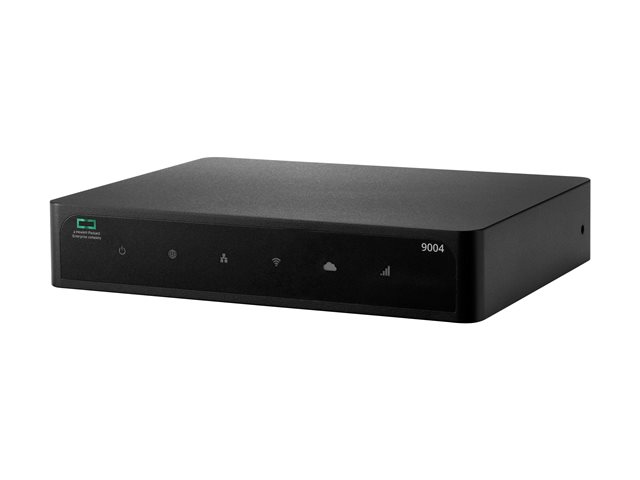

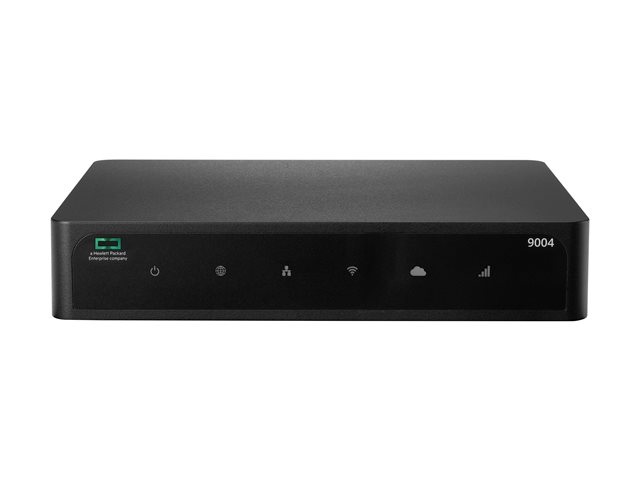

HPE Aruba 9004 (EG)

Name: HPE Aruba 9004 (EG)
Brand: HPE
SKU: ECE11761234
Price: 1544.39 EUR
Availability: InStock

View all HPE Other Network Devices - Visit the HPE Store (R1B24A) - (ECE11761234)

Model: HPE Aruba

Aruba 9004 (EG) - Gateway - 4 ports - 1GbE - ZigBee, NFC, Bluetooth - cloud-managed - BTO

Versatile, Cost-effective Performance
Flexible Deployments with Enhanced Security
AI-powered Cloud-based Management
Lower Cost and Greater Efficiency with SD-Branch

FREE Delivery on orders over €250

SPO - THIS ITEM CANNOT BE RETURNED AS UNWANTED AS IT IS A SPECIAL ORDER DIGITAL DOWNLOAD PRODUCT. **

Electronic Delivery By Email
Order within 15Hrs 56Mins for: FREE Delivery (8 Jun or 9 Jun)

€1544.39 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.

Specification Summary

Product Description

HPE Aruba 9004 (EG) - gateway - ZigBee, NFC, Bluetooth - cloud-managed

Device Type

Gateway

Form Factor

External

Ports Qty

Data Link Protocol

Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0

Performance

Firewall throughput: 2 Gbps ¦ Bridged throughput: 4 Gbps

Capacity

Number of supported devices: 2048 ¦ Active firewall sessions: 32426

Power

AC 120/230 V (50/60 Hz)

Pricing Type

BTO

Dimensions (WxDxH)

19.85 cm x 15.31 cm x 3.82 cm

Weight

1.143 kg

Manufacturer Warranty

1-year warranty

Specifications

EAN / GTIN:

190017325002

General

Device Type

Gateway

Width

19.85 cm

Depth

15.31 cm

Height

3.82 cm

Weight

1.143 kg

Networking

Form Factor

External

Ports Qty

Connectivity Technology

Wireless, wired

Data Link Protocol

Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0

Cloud-Managed

Yes

Performance

Firewall throughput: 2 Gbps ¦ Bridged throughput: 4 Gbps

Capacity

Number of supported devices: 2048 ¦ Active firewall sessions: 32426

Status Indicators

Status, WAN, LAN

Features

Firewall protection, Deep Packet Inspection (DPI), Quality of Service (QoS), fanless, gateway mode, SD-WAN support

Internet of Things (IoT)

Internet of Things (IoT) Compatible

Yes

Communications Technology

Bluetooth, NFC, Zigbee

Expansion / Connectivity

Interfaces

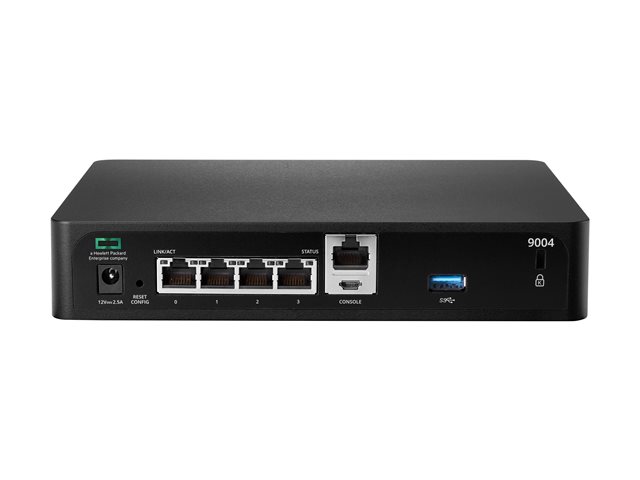

4 x Ethernet 1000 - RJ-45 ¦ 1 x USB 3.0 ¦ 1 x console - RJ-45/micro-USB

Miscellaneous

Compliant Standards

EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class B, CCC, FCC Part 15, UL 60950-1, ANATEL, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, NCC, EN 301 489-1, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 55032 Class B, CNS 13438 Class B, KN32 Class B, EN 60950:2005, CISPR 32 Class B, EN 301 489-17, RED 2014/53/EU

Pricing Type

BTO

Power

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

25 Watt

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 1 year

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)
