Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

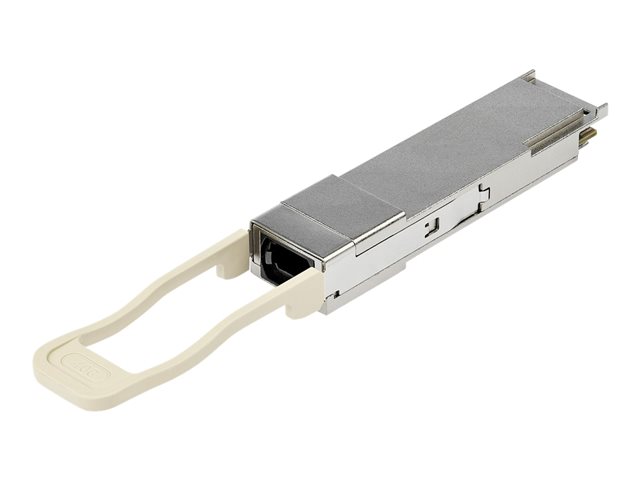

40 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty. The QSFP-40G-ESR4-ST is an MSA compatible fiber transceiver module that has been designed, programmed and tested to work with MSA brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-SR4 compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 40 Gbps
Type: Multi Mode Fiber

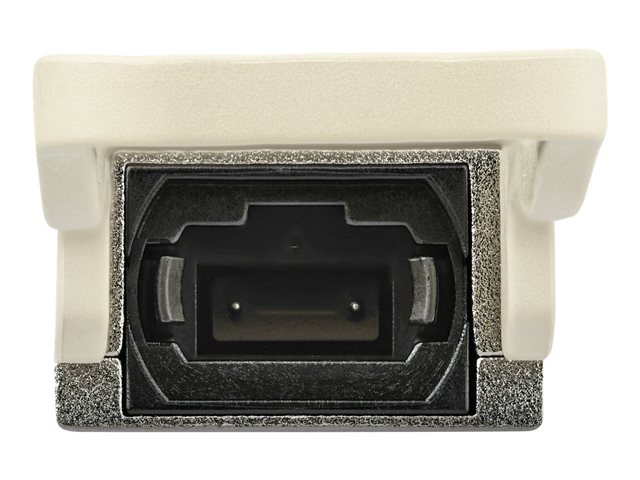

Connection Type: MPO
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 498,745,585 hours
Power Consumption: Low power consumption
Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
Specification Summary
Product Description
Startech MSA Uncoded Compatible QSFP+ Module, 40GBASE-SR4, 40Gbps Multi Mode (MMF) Fiber, 40GE Gigabit Ethernet QSFP+, MPO Connector, 300m, 850nm, 40GbE QSFP Plus Transceiver Module - Lifetime Warranty (QSFP-40G-ESR4-ST) - QSFP+ transceiver module - 40GbE
Device Type
QSFP+ transceiver module - MPO multi-mode
Form Factor
Plug-in module
Data Transfer Rate
40 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
300 m
Dimensions (WxDxH)
12.2 cm x 1.86 cm x 0.85 cm
Manufacturer Warranty
Limited lifetime warranty
