Startech 4-Port 2.5Gbps NBASE-T PCIe Network Card,

Images Manuals

Startech 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card,

Images for illustrative purposes

Startech 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card,

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (PR42GI-NETWORK-CARD) - (ECE8543431)

Startech 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V Chip, Quad Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface Card, PCI Express 2.0 (PR42GI-NETWORK-CARD) - Network adapter - PCIe 2.0 x4 -

Increased Network Speed
Enhance Existing Hardware

FREE Delivery on orders over €250

7 Available to Ship
Order within 10Hrs 2Mins for: Delivery (8 Jun or 9 Jun)

€237.53 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

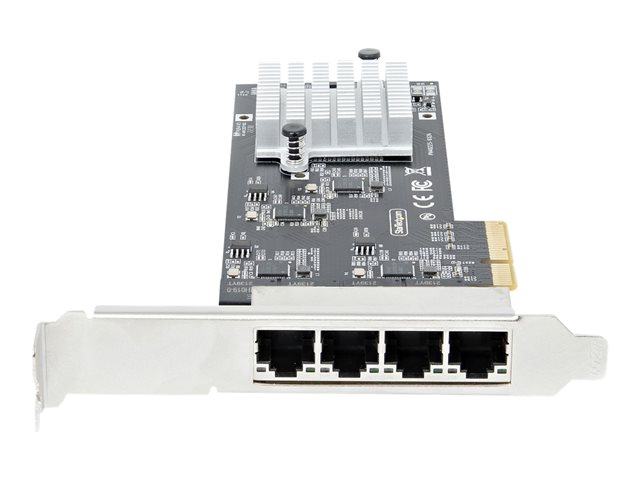

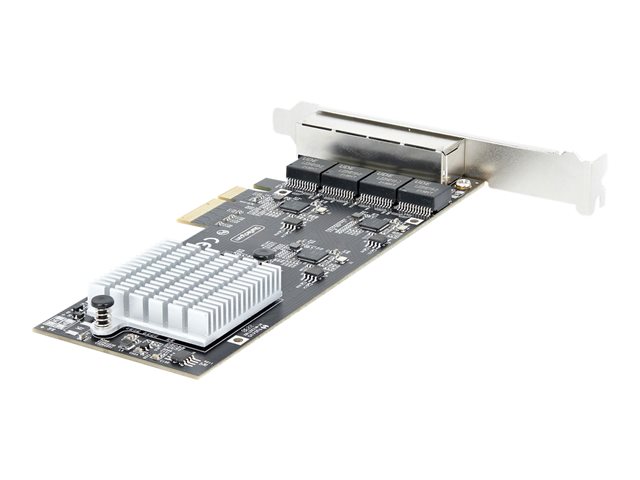

This quad-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Features Summary

Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux. This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Specification Summary

Product Description

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 2.0 x4

PCI Specification Revision

PCIe 2.0

Ports

10M/100M/1G/2.5 Gigabit Ethernet x 4

Dimensions (WxDxH)

2.2 cm x 18 cm x 12 cm

Weight

100 g

Cabling Type

Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T

Data Link Protocol

10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE

Data Transfer Rate

2.5 Gbps

Capacity

Jumbo frame size: 9000

Processor

Intel I225-V

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.1as, IEEE 802.3bz, IEEE P802.3az

Colour

Black

System Requirements

Microsoft Windows Server 2019, VMware ESXi 7.0, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 5.8.x or later (LTS versions only)

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030898157

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express 2.0 x4

PCI Specification Revision

PCIe 2.0

Networking

Ports

10M/100M/1G/2.5 Gigabit Ethernet x 4

Connectivity Technology

Wired

Cabling Type

Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Data Transfer Rate

2.5 Gbps

Capacity

Jumbo frame size: 9000

Status Indicators

Link/activity, link/speed

Features

Full duplex capability, auto-negotiation, VLAN support, WOL, VLAN Tagging, Intel vPro Technology support, Auto MDIX, PXE boot, bus powered

Compliant Standards

IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.1as, IEEE 802.3bz, IEEE P802.3az

Processor / Memory

Processor

Intel I225-V

Expansion / Connectivity

Interfaces

4 x 2.5 GBase-T - RJ-45

Miscellaneous

Included Accessories

Low-profile bracket

Compliant Standards

FCC, WEEE, IEEE 1588

Colour

Black

Software / System Requirements

OS Required

Microsoft Windows Server 2019, VMware ESXi 7.0, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, Linux 5.8.x or later (LTS versions only)

Dimensions & Weight

Width

2.2 cm

Depth

18 cm

Height

12 cm

Weight

100 g

Dimensions & Weight (Shipping)

Shipping Weight

130 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years ¦ Technical support - assistance - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

55 °C

Humidity Range Operating

5 - 90% RH
