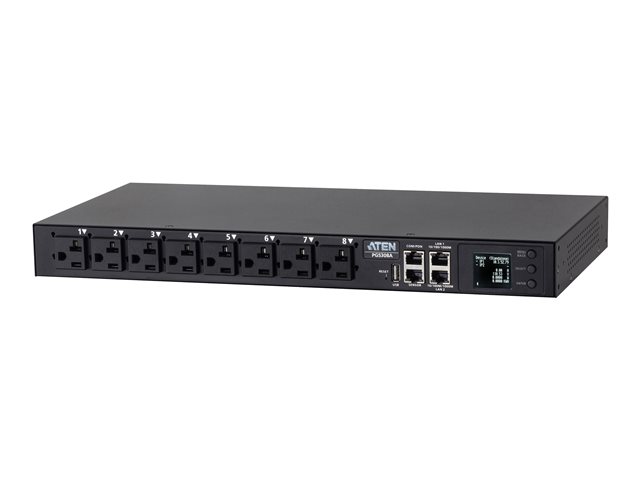

Device Type
Power distribution unit - rack-mountable
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
2 x power IEC 60320 C19 16 A ¦ 6 x power IEC 60320 C13 10 A
Output Voltage
AC 100-240 V
Circuit Protection
Circuit breaker
Remote Management Interface
Ethernet 10/100/1000
Remote Management Protocol
TCP/IP, UDP, HTTP, HTTPS, DHCP, SMTP, NTP, DNS, SNMP 1, SNMP 2, SNMP 3, Telnet, Modbus, IPv6, JSON-RPC, RADIUS, LDAP, TACACS+
Interfaces
2 x management (Gigabit Ethernet) - RJ-45 ¦ Serial - RJ-45 ¦ Sensor - RJ-45 ¦ USB 2.0 - Type A
Included Accessories
Mounting kit, full-panel colored sticker, footpad set
Cables Included
Power cable 3 m ¦ RJ-45 to DB-9 cable
Features
KWh monitoring, PF monitoring, bank level current monitoring, voltage monitoring, 1% metering accuracy, rotatable LCD panel
Compliant Standards
EMC, UCKA
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Humidity Range Operating
0 - 80% RH (non-condensing)
