Startech 4-Port USB 3.0 PCI Express Card Adapter -

Images Manuals

Images for illustrative purposes

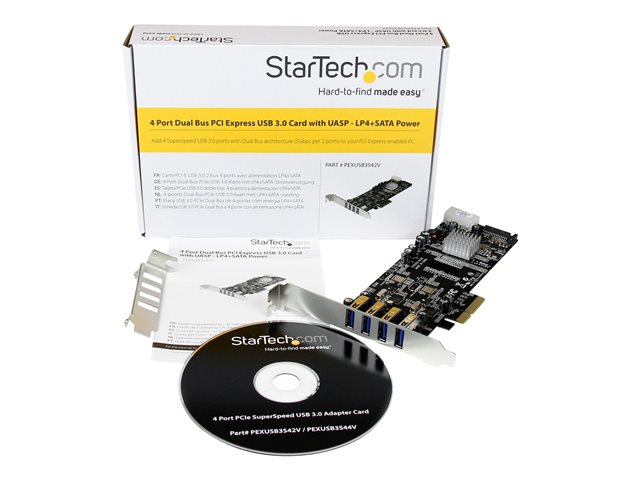

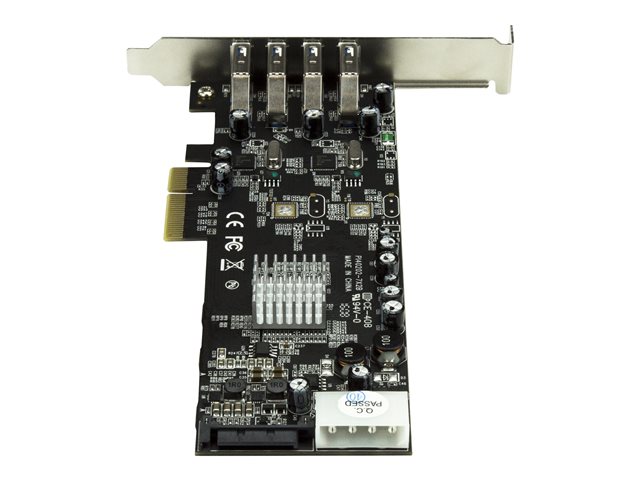

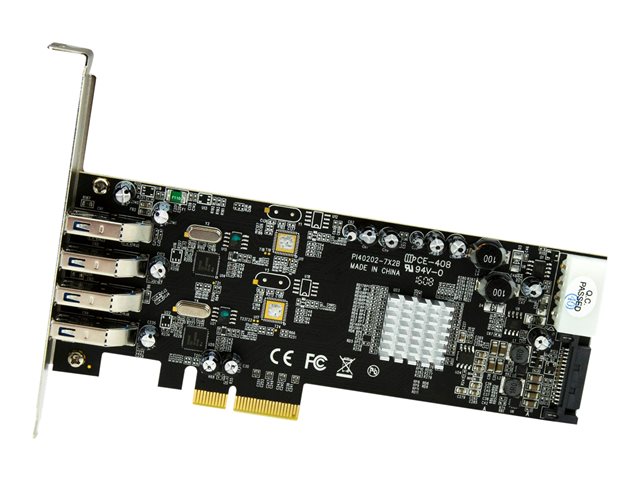

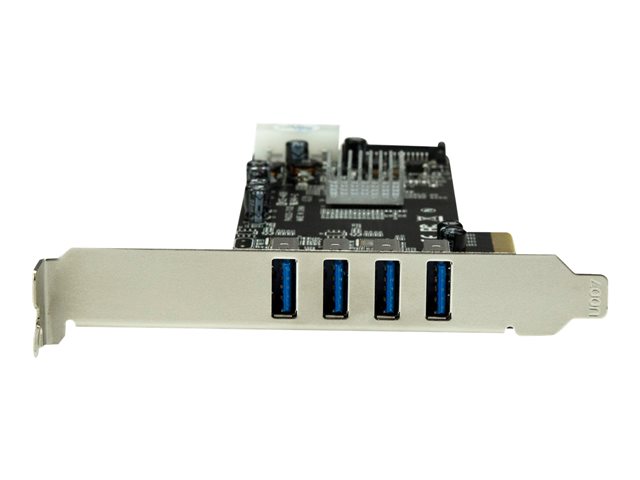

Startech 4-Port USB 3.0 PCI Express Card Adapter

Name: Startech 4-Port USB 3.0 PCI Express Card Adapter
Brand: STARTECH.COM
SKU: MMEV933014
Price: 68.93 EUR
Availability: InStock
Rating: 4.4 (31 reviews)

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (PEXUSB3S42V) - (MMEV933014)

4.4(31)

Startech 4-Port USB 3.0 PCI Express Card Adapter - PCIe SuperSpeed USB 3.0 Expansion Card w/ 2 Dedicated 5Gbps Channels (PEXUSB3S42V) - USB adapter - PCIe x4 - USB 3.0 x 4

Improved Performance with UASP

FREE Delivery on orders over €250

15 Available to Ship
Order within 6Hrs 48Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€94.49~~

€68.93 Incl Vat

Bulk Pricing from €64.38

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

4 Port USB 3.0 PCIe Card w/ 2 Dedicated Channels - 5Gbps - UASP (PEXUSB3S42V).

Features Summary

Improved Performance with UASP
In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Specification Summary

Product Description

Startech 4-Port USB 3.0 PCI Express Card Adapter - PCIe SuperSpeed USB 3.0 Expansion Card w/ 2 Dedicated 5Gbps Channels (PEXUSB3S42V) - USB adapter - PCIe x4 - USB 3.0 x 4

Device Type

USB adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express x4

Ports

USB 3.0 x 4

Dimensions (WxDxH)

6.7 cm x 12.1 cm x 1.9 cm

Weight

90 g

Data Link Protocol

USB, USB 2.0, USB 3.0

Data Transfer Rate

5 Gbps

Processor

NEC uPD720202

Compliant Standards

USB 1.1, USB 2.0, USB 3.0

System Requirements

Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Linux Kernel 2.6.31 or later, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)

Manufacturer Warranty

2-year warranty

Designed For

P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3

Specifications

EAN / GTIN:

0065030854597

General

Device Type

USB adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express x4

Networking

Ports

USB 3.0 x 4

Connectivity Technology

Wired

Data Link Protocol

USB, USB 2.0, SuperSpeed USB 3.0

Data Transfer Rate

5 Gbps

Compliant Standards

USB 1.1, USB 2.0, USB 3.0

Processor / Memory

Processor

NEC uPD720202

Expansion / Connectivity

Interfaces

4 x USB 3.0 - 9 pin USB Type A (external)

Miscellaneous

Included Accessories

Low-profile bracket

Compliant Standards

FCC, RoHS

Software / System Requirements

Software Included

Drivers & Utilities

OS Required

Dimensions & Weight

Width

6.7 cm

Depth

12.1 cm

Height

1.9 cm

Weight

90 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 85%

Compatibility Information

Designed For

P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3
