Startech 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet

Images for illustrative purposes

Startech 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (PEXUSB3S3GE) - (MMEV933453)

Startech 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Fits Standard & Low-Profile PCs - UASP Supported - Optional SATA Power (PEXUSB3S3GE) - network / USB adapter - PCIe 2.0 - USB 3.0 x 3 + 1000Base-T x 1

Combo-card convenience and cost-savings
Flexible install options and legacy device support
Gigabit connectivity and network management
Effective USB 3.2 Gen 1 performance enhanced by UASP

FREE Delivery on orders over €250

4 Available to Ship
Order within 5Hrs 16Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€80.70~~

€59.67 Incl Vat

Bulk Pricing from €55.12

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This PCIe USB 3.2 Gen 1 card couples your peripheral and network connections into a single, scalable solution. By combining three USB 3.2 Gen 1 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.

Features Summary

Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC. This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.2 Gen 1 and Gigabit Ethernet adapters.
Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases. The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it's backward compatible with USB 2.0 and 1.x, so you won't have to replace all of your existing USB devices.
Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi is unavailable or unreliable. Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
Effective USB 3.2 Gen 1 performance enhanced by UASP
This high-performance SuperSpeed USB 3.2 Gen 1 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure. The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specification Summary

Product Description

Device Type

Network / USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 2.0 x1

Ports

USB 3.0 x 3 + 1000Base-T x 1

Dimensions (WxDxH)

1.8 cm x 7.7 cm x 12 cm

Weight

150 g

Data Link Protocol

USB, 1GbE, USB 2.0, USB 3.0

Data Transfer Rate

5 Gbps

Processor

Renesas uPD720201

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az

System Requirements

Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Linux 2.6.31 or later, Microsoft Windows Server 2012, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Windows 10 (32/64 bits)

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030860796

General

Device Type

Network / USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 2.0 x1

Networking

Ports

USB 3.0 x 3 + 1000Base-T x 1

Connectivity Technology

Wired

Data Link Protocol

USB, Gigabit Ethernet, USB 2.0, SuperSpeed USB 3.0

Data Transfer Rate

5 Gbps

Features

Built-in SATA power connector, UASP

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, USB 1.1, USB 2.0, USB 3.0, IEEE 802.3az

Processor / Memory

Processor

Renesas uPD720201

Expansion / Connectivity

Interfaces

3 x USB 3.0 - 9 pin USB Type A (external) ¦ 1 x 1000Base-T - RJ-45 (external)

Miscellaneous

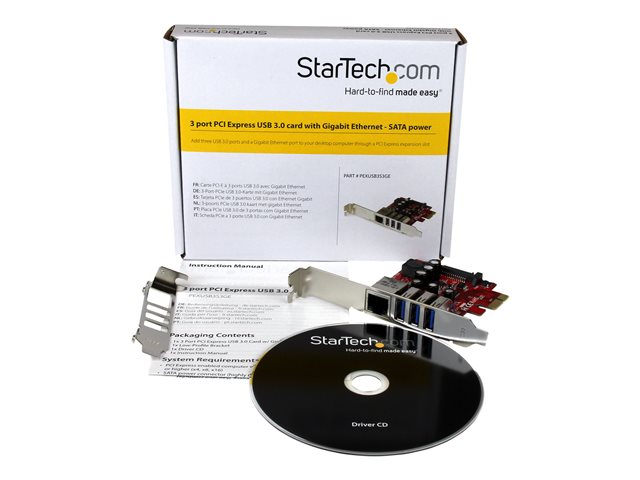

Included Accessories

Low-profile bracket

MTBF

1,920,042 hour(s)

Compliant Standards

FCC, RoHS

Software / System Requirements

Software Included

Drivers & Utilities

OS Required

Dimensions & Weight

Width

1.8 cm

Depth

7.7 cm

Height

12 cm

Weight

150 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

50 °C

Humidity Range Operating

20 - 80%
