Startech USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps

Images Manuals

Images for illustrative purposes

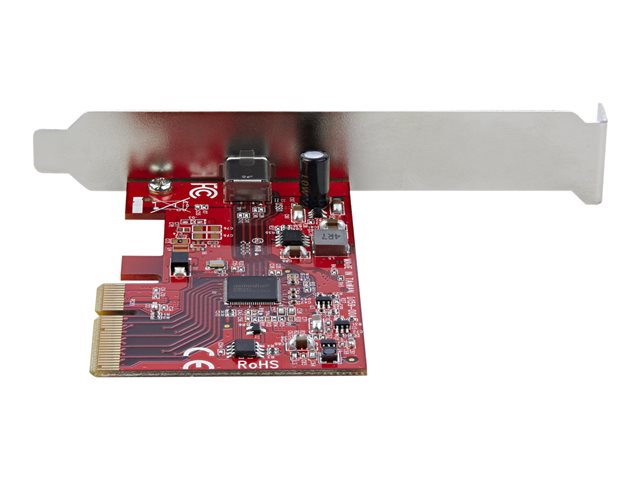

Startech USB 3.2 Gen 2x2 PCIe Card

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (PEXUSB321C) - (MMECA76232)

Startech USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2x2 x 1

Add a 20 Gbps USB Type-C Port to Your Desktop Computer
SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance
Wide Installation Compatibility

FREE Delivery on orders over €250

6 Available to Ship
Order within 3Hrs 24Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€82.18~~

€60.64 Incl Vat

Bulk Pricing from €56.09

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C (20Gbps) port.

Specification Summary

Product Description

Startech USB 3.2 Gen 2x2 PCIe Card - USB-C 20Gbps PCI Express 3.0 x4 Controller - USB Type-C Add-On PCIe Expansion Card -Windows/Linux - USB adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2x2 x 1

Device Type

USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x4

Ports

USB-C 3.2 Gen 2x2 x 1

Dimensions (WxDxH)

8 cm x 5.1 cm x 2.2 cm

Weight

37 g

Data Link Protocol

USB 3.2 Gen 2x2

Data Transfer Rate

20 Gbps

Processor

ASMedia ASM3242

Compliant Standards

USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2

System Requirements

Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS 10.13 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Windows 8 / 8.1 / 10 / 11, Apple macOS 13.0

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030891264

General

Device Type

USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x4

Networking

Ports

USB-C 3.2 Gen 2x2 x 1

Connectivity Technology

Wired

Data Link Protocol

USB 3.2 Gen 2x2

Data Transfer Rate

20 Gbps

Compliant Standards

USB 2.0, USB 3.0, USB 3.1, USB 3.1 Gen 2, xHCI 1.1, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 3.2 Gen 2x2

Processor / Memory

Processor

ASMedia ASM3242

Expansion / Connectivity

Interfaces

1 x USB 3.2 Gen 2x2 - 24 pin USB-C

Miscellaneous

Included Accessories

Low-profile bracket

MTBF

3,126,209 hours

Compliant Standards

FCC, RoHS, UASP (USB Attached SCSI Protocol)

Software / System Requirements

OS Required

Dimensions & Weight

Width

8 cm

Depth

5.1 cm

Height

2.2 cm

Weight

37 g

Dimensions & Weight (Shipping)

Shipping Width

14.2 cm

Shipping Depth

17 cm

Shipping Height

3 cm

Shipping Weight

101 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

85 °C

Humidity Range Operating

15 - 90%
