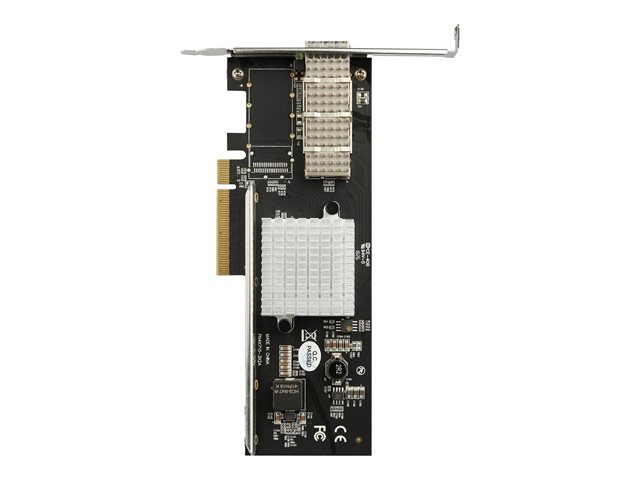

Startech Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card,

Images for illustrative purposes

Startech Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card,

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (PEX40GQSFPI) - (MMEV934508)

Startech Dual Port 40G QSFP+ Network Card, Intel XL710 Open QSFP+ Converged Adapter, PCIe 40 Gigabit Ethernet Server NIC, 40GbE Fiber Optic LAN Card, Dell PowerEdge HPE ProLiant, 40Gb - Network Interface Card (PEX40GQSFPI)

Increase Your Network Speed
Add Scalable Network Connections
Enhance Your Network Capabilities
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

2 Available to Ship
Order within 8Hrs 34Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€473.93~~

€445.25 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Get fast, high-bandwidth connectivity with this QSFP+ server network card. The converged network adapter adds an open QSFP+ slot to your server or workstation. The 40Gb NIC features an Intel controller and provides reliable performance. It's ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Features Summary

Increase Your Network Speed
This QSFP+ server NIC lets you take advantage of the speed and stability of a 40 Gigabit Ethernet network, with data transfers of up to 40Gbps.
Add Scalable Network Connections
With an open QSFP+ slot, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance Your Network Capabilities
The 40Gb NIC uses an Intel XL710 chipset, providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Mac Address Pass-Through Utility : To improve network security. •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Specification Summary

Product Description

Device Type

Network adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCIe 3.0

Ports

40 Gigabit QSFP+ x 1

Dimensions (WxDxH)

12.1 cm x 18.1 cm x 2 cm

Weight

112 g

Cabling Type

Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4

Data Link Protocol

40GbE

Capacity

Jumbo frame size: 9000

Network / Transport Protocol

IPv4, IPv6

Processor

Intel

Compliant Standards

IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba

Colour

Black

System Requirements

Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.6.24 - 4.11.x (64-bit) LTS versions

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030872706

General

Device Type

Network adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x8

PCI Specification Revision

PCIe 3.0

Networking

Ports

40 Gigabit QSFP+ x 1

Connectivity Technology

Wired

Cabling Type

Ethernet 40GBASE-SR4, Ethernet 40GBase-LR4

Data Link Protocol

40 Gigabit Ethernet

Capacity

Jumbo frame size: 9000

Network / Transport Protocol

IPv4, IPv6

Status Indicators

Link/activity

Features

Flow control, full duplex capability, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, Link Aggregation, VLAN Tagging

Compliant Standards

IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ba

Processor / Memory

Processor

Intel

Expansion / Connectivity

Interfaces

1 x 40GBase-LR4/40GBase-SR4 - QSFP+ - female

Miscellaneous

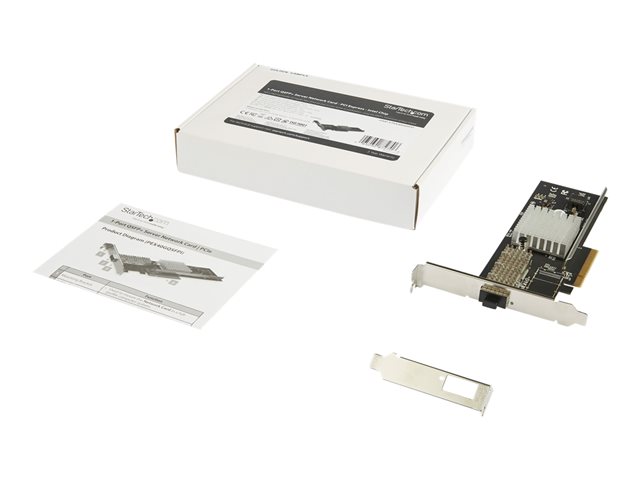

Included Accessories

Low-profile bracket

Compliant Standards

FCC, RoHS

Colour

Black

Software / System Requirements

OS Required

Dimensions & Weight

Width

12.1 cm

Depth

18.1 cm

Height

2 cm

Weight

112 g

Dimensions & Weight (Shipping)

Shipping Weight

200 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

57 °C

Humidity Range Operating

5 - 95%
