Device Type

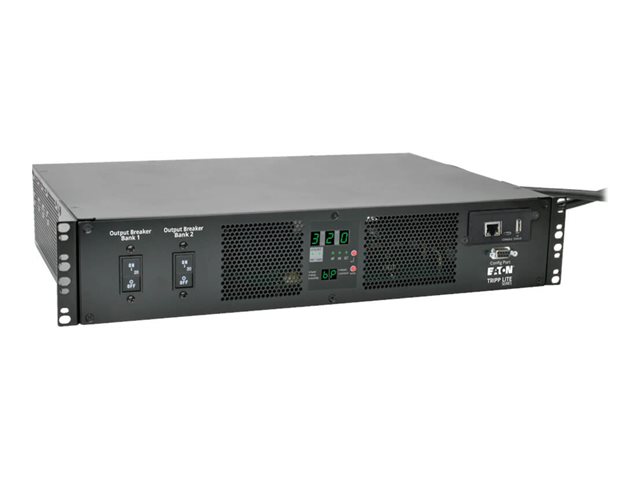

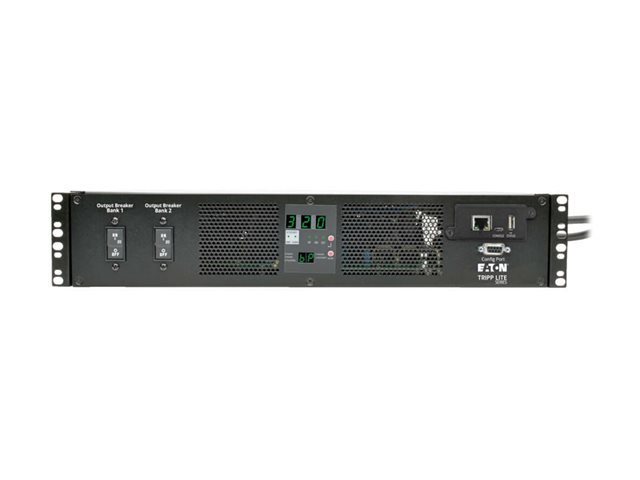

Power distribution unit - rack-mountable
Input Voltage
AC 200/208/220/230/240 V
Frequency Provided
50/60 Hz

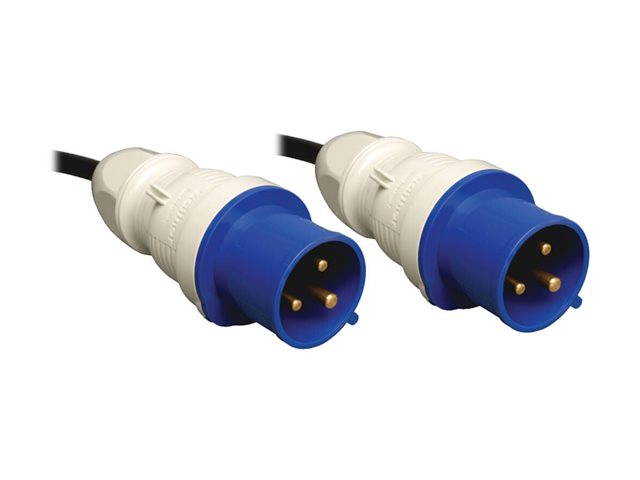

Input Connectors
2 x power IEC 60309 32A

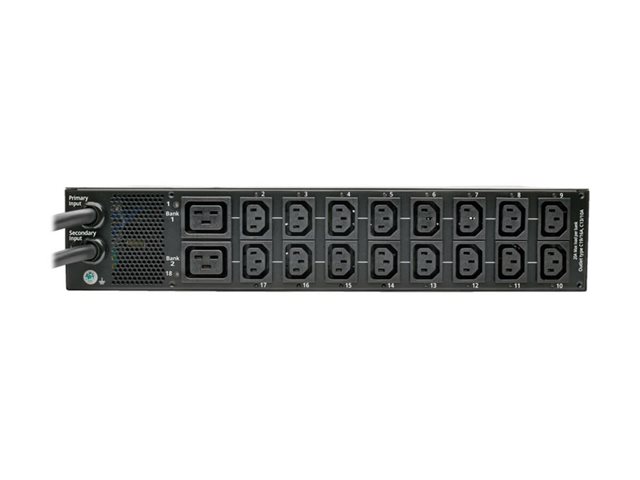

Power Output Connectors Details
16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Max Electric Current
32 A
Circuit Protection
Circuit breaker
Remote Management Interface
Ethernet
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x management - 9 pin D-Sub (DB-9)
Included Accessories
Cable ties
Cables Included
2 x power cable - integrated - 3 m
Rack Mounting Kit
Included
Features

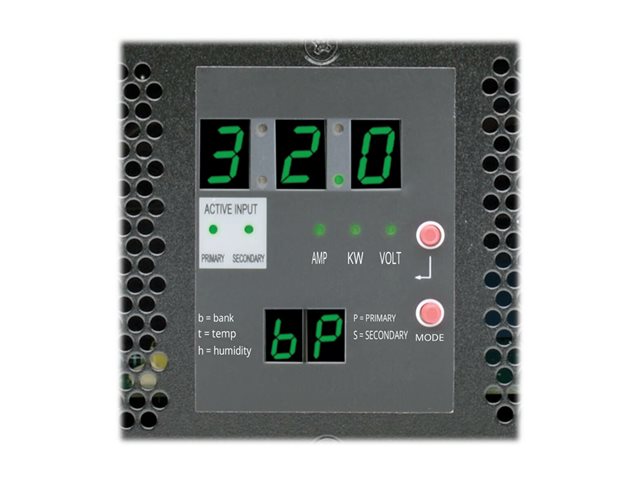

LED display, amp meter, Automatic Transfer Switch (ATS), AC frequency monitoring, power factor metre
Compliant Standards
FCC Class A certified, RoHS, UL 60950-1, CSA 22.2 No. 60950-1
Software / System Requirements
Software Included
TrippLite PowerAlert
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-15 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight (Shipping)
