Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.

The product can be connected to a PC through the serial port to perform local control of the ATS PDU.


Specification Summary

Product Description

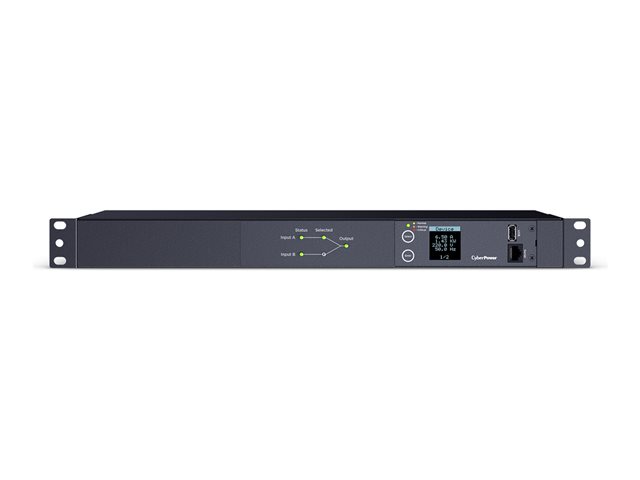

CyberPower Metered ATS Series PDU24005 - power distribution unit
Device Type
Power distribution unit - rack-mountable
Cord Length
3.05 m
Rack Size
1U
Weight
3.2 kg
Input Wiring
1-phase
Input Voltage
AC 200-240 V
Input Connectors
2 x 2 x power IEC 60320 C20
Output connectors
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Networking
Serial
Included Accessories
Cord retention tray, rack mount brackets, screws, cable ties
Colour
Black
Dimensions (WxDxH)
43.3 cm x 21.5 cm x 4.4 cm
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
4711027799797
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
1U
Cord Length
3.05 m
Colour
Black
Power Device
Input Voltage
AC 200-240 V
Input Wiring
1-phase
Frequency Required
50/60 Hz
Input Connectors
2 x 2 x power IEC 60320 C20
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Max Electric Current
16 A
Circuit Protection
Circuit breaker
Networking
Remote Management Interface
Serial
Expansion / Connectivity
Interfaces
1 x serial - RJ-45 ¦ 1 x USB - 4 pin USB Type A
Miscellaneous
Included Accessories
Cord retention tray, rack mount brackets, screws, cable ties
Cables Included
2 x power cable - external - 3.05 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display, Automatic Transfer Switch (ATS), firmware upgradable
Compliant Standards
FCC Class A certified, UL 62368, EN 55032 Class A, IEC 62368, RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Width
43.3 cm
Depth
21.5 cm
Height
4.4 cm
Weight
3.2 kg
Dimensions & Weight (Shipping)
Shipping Width
55 cm
Shipping Depth
39.8 cm
Shipping Height
12.5 cm
Shipping Weight
6 kg
