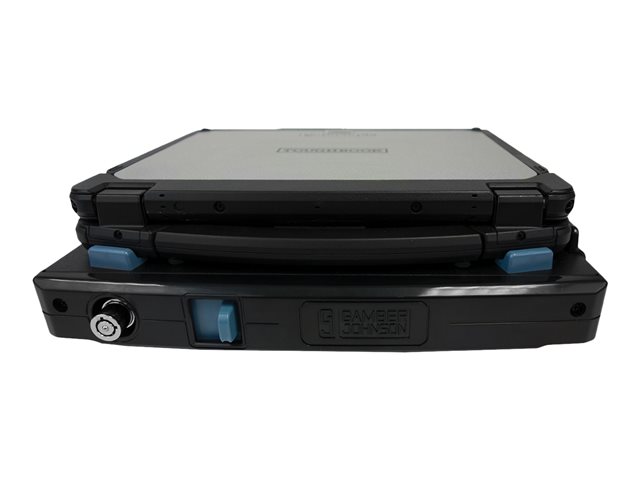

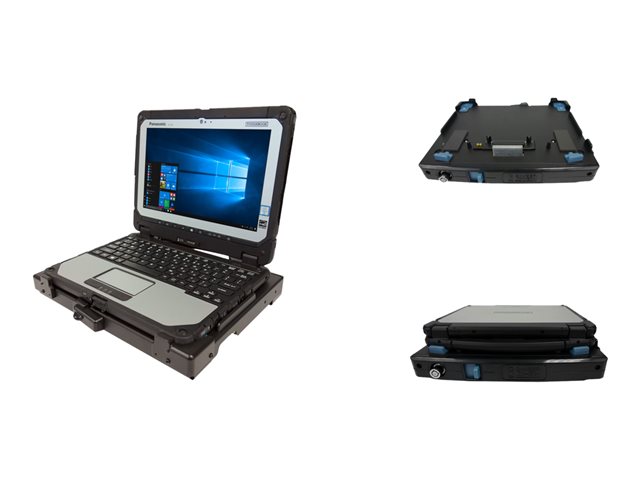

Gamber-Johnson Vehicle Dock PCPE-GJ20V07

Images for illustrative purposes

Gamber-Johnson Vehicle Dock PCPE-GJ20V07

View all PANASONIC Docking | Replicator - Visit the PANASONIC Store (PCPE-GJ20V07) - (ECE5086918)

Gamber-Johnson Vehicle Dock PCPE-GJ20V07 - Port replicator - VGA, HDMI - for Toughbook 20, CF-20 Standard

Robust connectivity options
Enhanced durability
Secure locking mechanism
Compliance with standards
Versatile port replicator design

FREE Delivery on orders over €250

0 Available to Ship
Restock 10-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€1275.10 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

A ruggedized vehicle docking solution, specifically designed for the TOUGHBOOK CF-20 notebook, offering full port replication and optional dual antenna pass-through. A secondary locking arm acts as an additional securing mechanism for the CF-20 while docked. The dock allows the CF-20 to be secured in notebook mode or in convertible mode for access to job routing, GPS software and other critical applications.

Features Summary

Robust connectivity options
Equipped with a range of interfaces including HDMI, VGA, SuperSpeed USB 3.0, and Ethernet, this vehicle dock allows for seamless communication between devices, enhancing overall productivity.
Enhanced durability
Designed to withstand harsh conditions, the dock features shock and vibration resistance, ensuring reliable performance during transportation and use in challenging environments.
Secure locking mechanism
The inclusion of a key lock feature provides an additional layer of security, allowing users to secure their devices while docked, preventing unauthorized access.
Compliance with standards
Built to meet compliance standards such as RoHS and MIL-STD 810G, this dock assures users of its safety and reliability in various applications.
Versatile port replicator design
This vehicle dock functions as a port replicator, facilitating easy connections with multiple devices and peripherals, making it a practical solution for mobile professionals.

Specification Summary

Product Description

Gamber-Johnson Vehicle Dock PCPE-GJ20V07 - port replicator - VGA, HDMI

Product Type

Port replicator

Video Interfaces

VGA, HDMI

Dimensions (WxDxH)

29 cm x 27.7 cm x 7.6 cm

Weight

2.8 kg

Power

Power supply DC 16 V

Manufacturer Warranty

1-year warranty

Designed For

Toughbook 20, CF-20 Standard

Specifications

EAN / GTIN:

5054444259048

General

Product Type

Port replicator

Width

29 cm

Depth

27.7 cm

Height

7.6 cm

Weight

2.8 kg

Expansion / Connectivity

Interfaces

1 x network - Ethernet - RJ-45 ¦ 2 x SuperSpeed USB 3.0 - SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x serial - 9 pin D-Sub (DB-9) ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A

Miscellaneous

Features

Key lock, shock-resistant, VESA 75 x 75 mm, vibration-resistant

Compliant Standards

C-Tick, FCC, RoHS, MIL-STD 810G, E Mark

Power

Power Device

Power supply

Voltage Required

DC 16 V

Manufacturer Warranty

Service & Support
