Ricoh fi-7600 - document scanner - desktop - USB 3

Images Manuals

Images for illustrative purposes

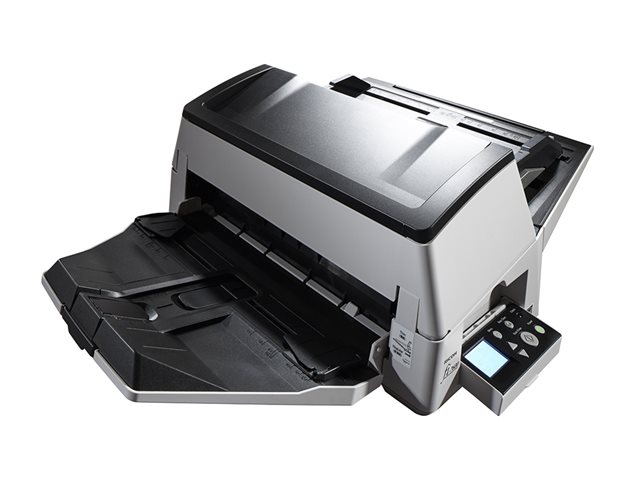

Ricoh fi-7600

View all RICOH Document Scanners - Visit the RICOH Store (PA03740-B501) - (ECE4200518)

fi-7600 fi7600 fi 7600 100ppm / 200ipm A3 ADF duplex document scanner. Includes PaperStream IP, PaperStream Capture, ScanSnap Manager for fi-series, 2D Barcode module for PaperStream and 12 months On-Site Next Business Day warranty.

Efficient scanning capabilities
Advanced image processing
Versatile document handling
High-speed performance
Energy-efficient design

FREE Delivery on orders over €250

2 Available to Ship
Order within 1Hrs 32Mins for: FREE Delivery (8 Jun or 9 Jun)

€4809.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

With scanning speeds of 100 ppm/200 ipm (200/300 dpi), the fi-7600 greatly improves process efficiency. Large volumes of information can be captured from various media types, including thin paper, plastic cards, envelopes and long page documents.

The fi-7600 automatically adjusts to paper weights from 20-413 g/m². The straight paper path reduces the load on a document and assures reliable scanning regardless of the condition and type of a document. By simply sliding a lever to non-separation mode, you can easily scan thick and long documents folded in half, multi-layered document sets and envelopes.

Skew Reducer automatically handles sheets of paper in a stack individually, so that if one sheet is fed-in skewed, subsequent sheets are not forced into physical skew. This ensures that all information in the documents is captured correctly, even in batches with mixed document formats. The Paper Protection function monitors document movement and automatically stops feeding when any irregularities are detected.

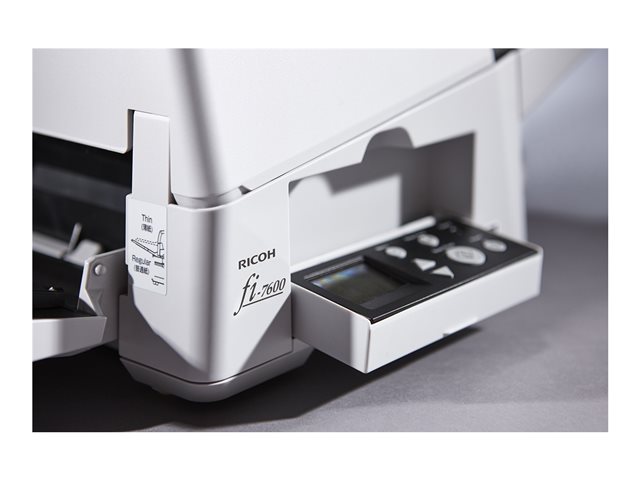

The fi-7600 is equipped with an operation panel on both sides allowing for right and left handed use. The LCD on the operation panel reveals the scanner status at a glance and enables instant operation.

The Automatic Document Feeder's (ADF) independent side guides move to exactly the position required for each batch. The adjustable stacker side guides support neat alignment of processed documents.

The fi-7600 comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.

Features Summary

Efficient scanning capabilities
The fi-7600 delivers remarkable scanning capabilities, offering an impressive duty cycle of 30,000 scans per day. Its automatic duplexing feature allows for scanning both sides of a document simultaneously, maximizing productivity.
Advanced image processing
Equipped with Advanced DTC, Barcode Detection, and Ultrasonic multifeed sensor, the fi-7600 ensures high-quality scans. Features like Blank Page Detection and RGB Color Dropout enhance scan accuracy, making it ideal for diverse document types.
Versatile document handling
This scanner accommodates a wide range of document sizes, from small cards to large formats up to 304.8 x 5588 mm. Its 300-sheet feeder capacity and support for embossed cards and plastic cards make it highly versatile for professional use.
High-speed performance
Achieve efficiency with scan speeds of up to 100 ppm/200 ipm in color and black and white. The fi-7600's ability to handle high volumes quickly makes it a valuable asset for fast-paced environments.
Energy-efficient design
ENERGY STAR certification and a power-efficient operation, with a sleep mode consuming only 1.7 watts, underscore the fi-7600's commitment to environmental sustainability without compromising on performance.

Specification Summary

Product Description

Ricoh fi-7600 - document scanner - desktop - USB 3.1 Gen 1

Device Type

Document scanner - desktop

Interface Type

USB 3.1 Gen 1

Scanning Sensor Type

Dual CCD

Light Source

White LED array

Additional Functions

Scan to SharePoint

Max Supported Document Size

304.8 x 431.8 mm

Input Type

Colour

Grayscale / Color Depth (External)

8-bit (256 grey levels) / 24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Max Document Scan Speed

100 ppm (mono) / 100 ppm (colour)

Max Document Size

304.8 mm x 5588 mm

Automatic Duplexing

Yes

Supported Document Type

Plain paper, plastic card, envelope, embossed card

Document Feeder Type

Automatic

Document Storage Capacity

300 sheets

Duty Cycle

30000 scans per day

Power

AC 120/230 V

System Requirements

Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)

Dimensions (WxDxH)

23.6 cm x 43.2 cm x 21.4 cm

Weight

11 kg

Environmental Standards

ENERGY STAR Qualified

Manufacturer Warranty

1-year warranty

Specifications

EAN / GTIN:

4939761309021

General

Type

Document scanner - desktop

Interface Type

USB 3.1 Gen 1

Additional Functions

Scan to SharePoint

Max Supported Document Size

304.8 x 431.8 mm

Scanner

Input Type

Colour

Grayscale Depth (External)

8-bit (256 grey levels)

Colour Depth (External)

24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Automatic Duplexing

Yes

Scanning Sensor Type

Dual CCD

Bulb / Light Source Type

White LED array

Max Document Scan Speed B/W

100 ppm

Max Document Scan Speed Colour

100 ppm

Duty Cycle

30000 scans per day

Scanner Speed Details

100 ppm - landscape - A4 - 200 dpi ¦ 100 ppm - landscape - A4 - 300 dpi ¦ 200 ipm - duplex - landscape - A4 - 200 dpi ¦ 200 ipm - duplex - landscape - A4 - 300 dpi ¦ 80 ppm - portrait - A4 - 200 dpi ¦ 80 ppm - portrait - A4 - 300 dpi ¦ 160 ipm - duplex - portrait - A4 - 200 dpi ¦ 160 ipm - duplex - portrait - A4 - 300 dpi

Scanner Features

Paper Protection Function, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, Barcode Detection, Ultrasonic multifeed sensor, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, RGB Color Dropout, Punch Hole Removal, Deskew, Blank Page Detection

Compliant Standards

TWAIN, ISIS

Media Handling

Max Document Size

304.8 mm x 5588 mm

Supported Document Type

Plain paper, plastic card, envelope, embossed card

Supported Document Size Details

ADF - up to 304.8 x 431.8 mm ¦ Long document - up to 304.8 x 5588 mm

Document Feeder Type

Automatic

Document Storage Capacity

300 sheets

Expansion / Connectivity

Interfaces Details

USB 3.1 Gen 1 - Type B

Miscellaneous

Cables Included

1 x USB cable

Compliant Standards

RoHS

Environmental Standards

ENERGY STAR Certified

Yes

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V

Power Consumption Operational (Standby)

64 Watt

Power Consumption Stand by

0.35 Watt

Power Consumption Sleep

1.7 Watt

Software / System Requirements

Software Included

Drivers & Utilities, ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture, 2D Barcode for PaperStream, Error Recovery Guide

OS Required

Dimensions & Weight

Width

23.6 cm

Depth

43.2 cm

Height

21.4 cm

Weight

11 kg

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80% (non-condensing)
