Ricoh fi-7700S - document scanner - desktop - USB

Images Manuals

Images for illustrative purposes

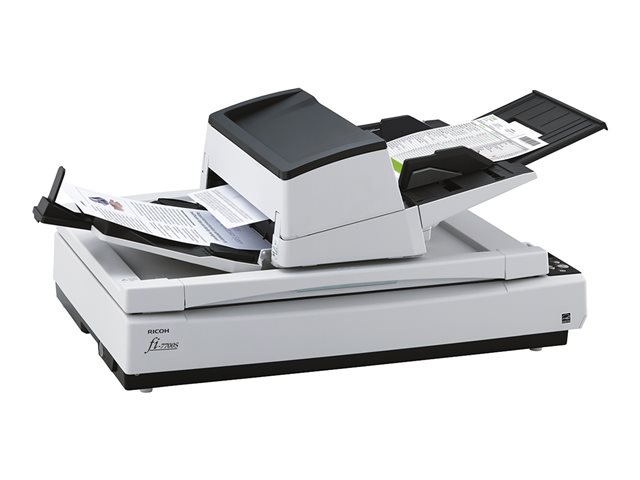

Ricoh fi-7700S

View all RICOH Document Scanners - Visit the RICOH Store (PA03740-B301) - (ECE4319481)

fi-7700S fi 7700S fi7700S - Document scanner - Dual CCD - ARCH B - 600 dpi x 600 dpi - up to 75 ppm (mono) / up to 75 ppm (colour) - ADF (300 sheets) - USB 3.1 Gen 1

Efficient document handling
Versatile scanning capabilities
Advanced imaging technology
High-speed performance
Energy-efficient design

FREE Delivery on orders over €250

0 Available to Ship
Restock 02-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€3269.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

With scanning speeds of 75 ppm (200/300 dpi), the fi-7700S greatly improves process efficiency. Large volumes of information can be captured from various media, including thin paper, plastic cards, envelopes and long page documents.

The fi-7700S automatically adjusts to paper weights from 20-413 g/m². The straight paper path reduces the load on a document and assures reliable scanning regardless of the condition and type of a document. By simply sliding a lever to non-separation mode, you can easily scan thick and long documents folded in half, multi-layered document sets and envelopes.

Skew Reducer automatically handles sheets of paper in a stack individually, so that if one sheet is fed-in skewed, subsequent sheets are not forced into physical skew. This ensures that all information in the documents is captured correctly, even in batches with mixed document formats. The Paper Protection function monitors document movement and automatically stops feeding when any irregularities are detected.

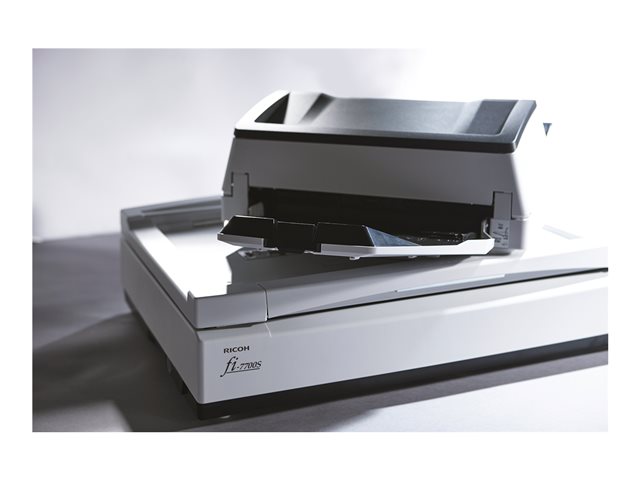

The fi-7700S's ADF unit slides to either side or rotates by 180 degrees. The LCD on the operation panel reveals the scanner status at a glance and enables instant operation.

The Automatic Document Feeder's (ADF) independent side guides move to exactly the position required for each batch. The adjustable stacker side guides support neat alignment of processed documents. The fi-7700S flatbed consecutively scans thick, fragile or bound documents even with the document cover open.

The fi-7700S comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.

Features Summary

Efficient document handling
The Ricoh fi-7700S scanner is designed to enhance productivity with its automatic document feeder capable of handling up to 300 sheets, ensuring seamless scanning of bulk documents without constant manual intervention.
Versatile scanning capabilities
This scanner supports a wide range of document types including bulk objects, embossed cards, envelopes, plain paper, and plastic cards, making it a versatile choice for diverse scanning needs.
Advanced imaging technology
Equipped with Dual CCD scanning sensors and a white LED array, the fi-7700S delivers high-quality scans with a color depth of 24-bit and grayscale depth of 8-bit, ensuring vivid and accurate color reproduction.
High-speed performance
Achieve scanning efficiency with speeds of up to 75 pages per minute in both black and white and color, complemented by features like barcode detection and ultrasonic multifeed sensor for optimal workflow.
Energy-efficient design
ENERGY STAR certified and featuring a low power consumption mode, the fi-7700S combines performance with energy efficiency, making it an eco-friendly addition to any office.

Specification Summary

Product Description

Ricoh fi-7700S - document scanner - desktop - USB 3.1 Gen 1

Device Type

Document scanner - desktop

Interface Type

USB 3.1 Gen 1

Scanning Sensor Type

Dual CCD

Light Source

White LED array

Max Supported Document Size

ARCH B (304.8 x 457.2 mm)

Input Type

Colour

Grayscale / Color Depth (External)

8-bit (256 grey levels) / 24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Max Document Scan Speed

75 ppm (mono) / 75 ppm (colour)

Max Document Size

304.8 mm x 5588 mm

Supported Document Type

Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card

Document Feeder Type

Automatic

Document Storage Capacity

300 sheets

Power

AC 120/230 V (50/60 Hz)

System Requirements

Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)

Dimensions (WxDxH)

70.6 cm x 50 cm x 34.5 cm

Weight

35 kg

Environmental Standards

ENERGY STAR Qualified

Specifications

EAN / GTIN:

4939761309069

General

Type

Document scanner - desktop

Interface Type

USB 3.1 Gen 1

Max Supported Document Size

ARCH B (304.8 x 457.2 mm)

Scanner

Input Type

Colour

Grayscale Depth (External)

8-bit (256 grey levels)

Colour Depth (External)

24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Scanning Sensor Type

Dual CCD

Bulb / Light Source Type

White LED array

Max Document Scan Speed B/W

75 ppm

Max Document Scan Speed Colour

75 ppm

Scanner Speed Details

75 ppm - landscape - A4 - 200 dpi ¦ 75 ppm - landscape - A4 - 300 dpi ¦ 0.6 sec/scan - landscape flatbed - A4 - 200 dpi ¦ 0.6 sec/scan - landscape flatbed - A4 - 300 dpi ¦ 58 ppm - portrait - A4 - 200 dpi ¦ 58 ppm - portrait - A4 - 300 dpi ¦ 0.9 sec/scan - portrait flatbed - A4 - 200 dpi ¦ 0.9 sec/scan - portrait flatbed - A4 - 300 dpi

Scanner Features

Paper Protection Function, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, Barcode Detection, Ultrasonic multifeed sensor, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, RGB Color Dropout, Punch Hole Removal, Deskew, Blank Page Detection

Compliant Standards

TWAIN, ISIS

Media Handling

Max Document Size

304.8 mm x 5588 mm

Supported Document Type

Plain paper, bulk objects (such as books, magazines and other bound materials), plastic card, envelope, embossed card

Supported Document Size Details

ADF - up to 304.8 x 431.8 mm ¦ Flatbed - up to ARCH B (304.8 x 457.2 mm) ¦ Long document - up to 304.8 x 5588 mm

Document Feeder Type

Automatic

Document Storage Capacity

300 sheets

Expansion / Connectivity

Interfaces Details

USB 3.1 Gen 1 - Type B

Miscellaneous

Included Accessories

ADF paper chute, stacker

Cables Included

1 x USB cable

Compliant Standards

RoHS

Environmental Standards

ENERGY STAR Certified

Yes

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational (Standby)

55 Watt

Power Consumption Stand by

0.35 Watt

Power Consumption Sleep

1.7 Watt

Software / System Requirements

Software Included

ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture, Error Recovery Guide

OS Required

Dimensions & Weight

Width

70.6 cm

Depth

50 cm

Height

34.5 cm

Weight

35 kg

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80% (non-condensing)
