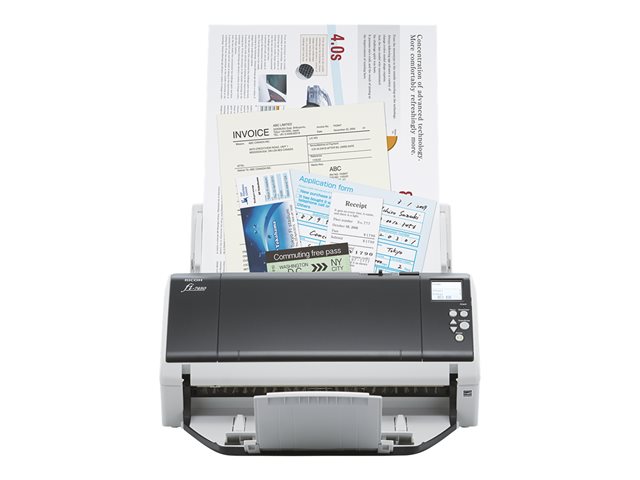

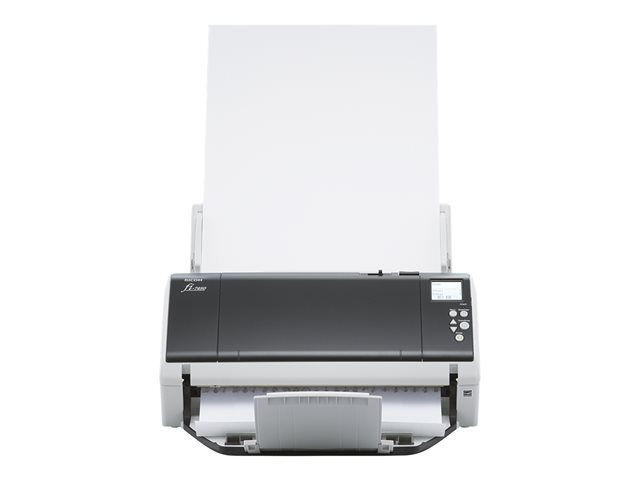

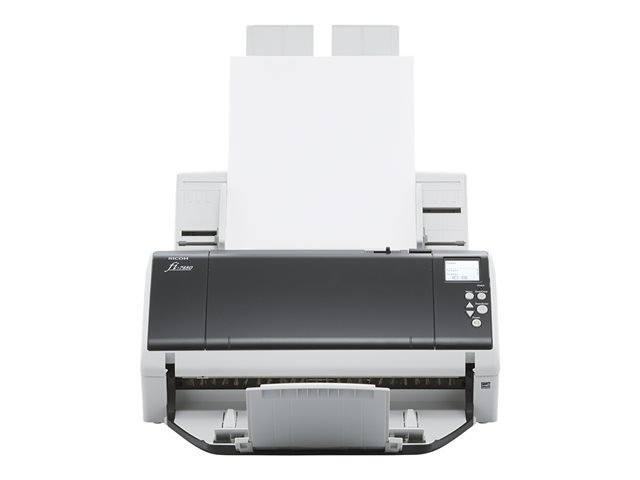

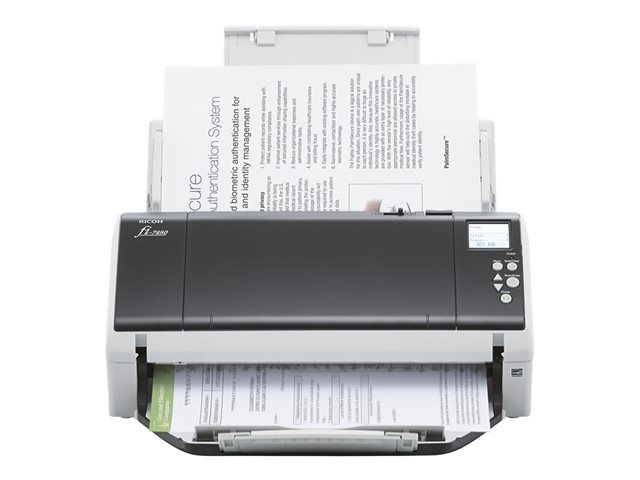

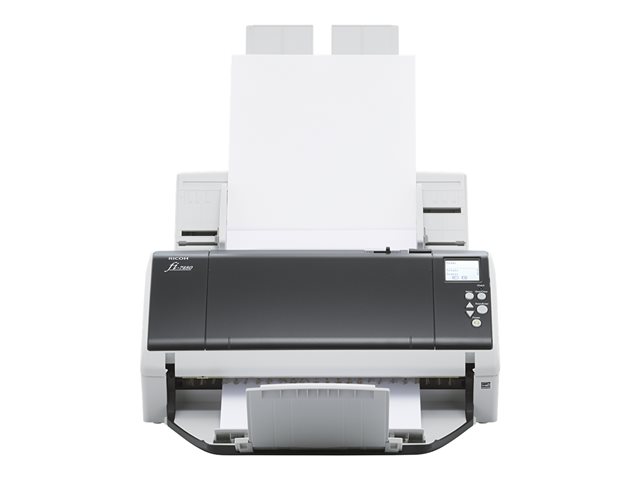

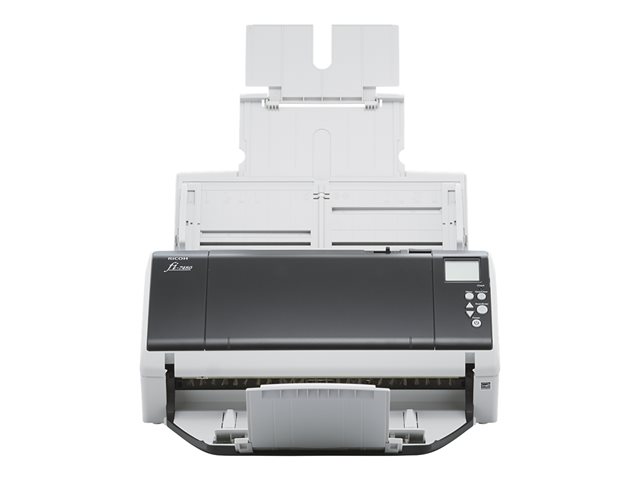

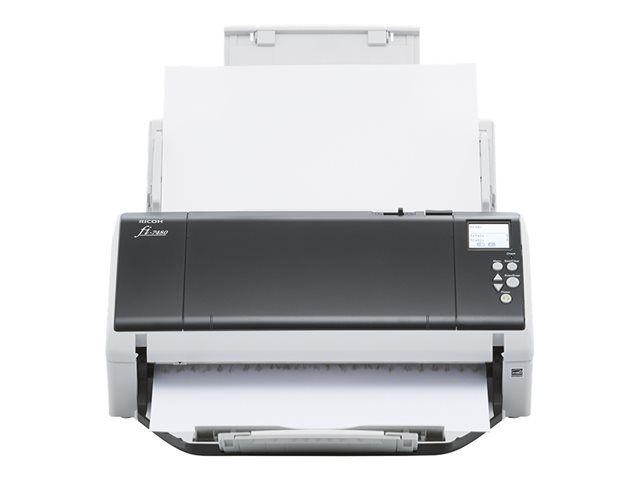

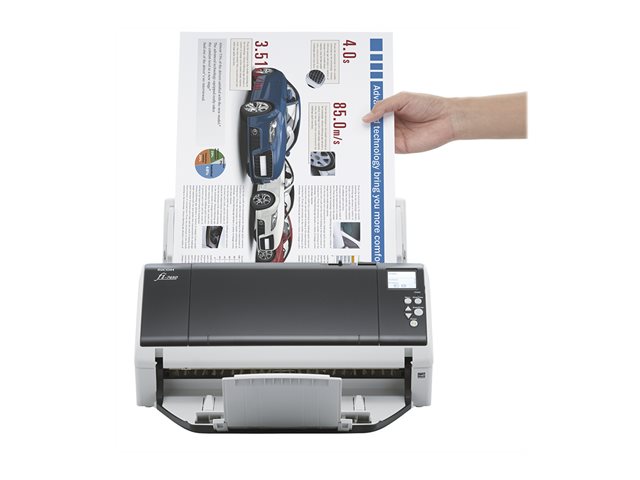

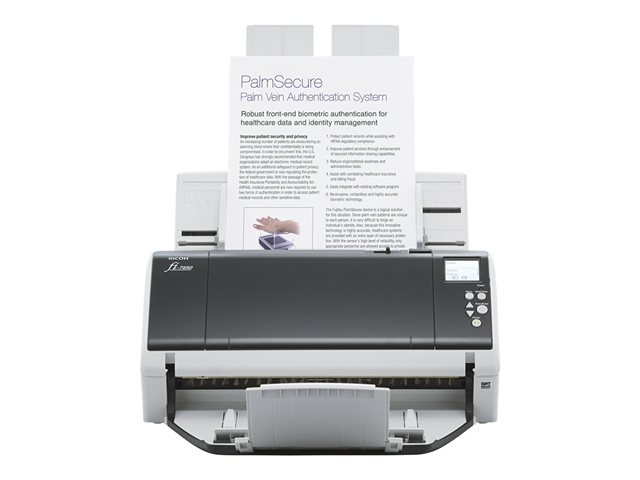

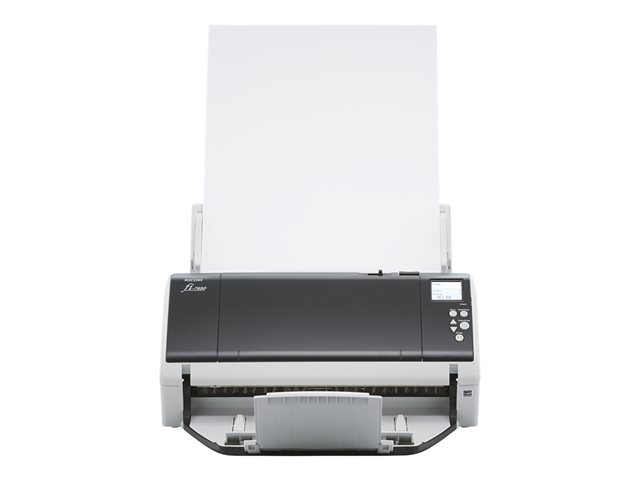

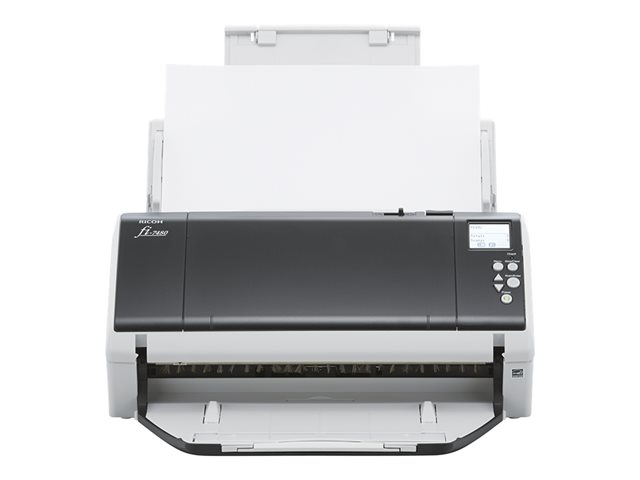

Ricoh fi-7480 - document scanner - desktop - USB 3

Images Manuals

Images for illustrative purposes

Ricoh fi-7480

View all RICOH Document Scanners - Visit the RICOH Store (PA03710-B001) - (ECE3797419)

fi-7480 - Document scanner - Dual CCD - Duplex - 304.8 x 431.8 mm - 600 dpi x 600 dpi - up to 160 ppm (mono) / up to 160 ppm (colour) - ADF (100 sheets) - USB 3.0

Efficient scanning
Advanced image quality
Convenient features

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€3536.94 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The fi-7480 is easy to set up, use and maintain and comes bundled with a user friendly and intuitive scanner driver PaperStream IP along with batch scanning automation and enhancement software PaperStream Capture. A4 landscape scanning speeds in both color or black and white at up to 300 dpi is 80 pages per minute or 160 images per minute through the 100 page capacity ADF. The fi-7480 can scan a huge variety of material from plastic cards to booklets to even folded A1 in size. The fi-7480 scanner comes with a unique paper protection function that is based on acoustic sensors; iSOP (Intelligent Sonic Paper Protection), iSOP reduces the risk of having documents damaged by sensing the audible noise of paper movements and stopping the feeding of sheets when an irregular noise is encountered. The scanner additionally makes use of an ultrasonic sensor that accurately detects multi-feed errors where two or more sheets are fed through the scanner at once plus intelligent multi-feed function that is designed for documents that intentionally feature paper attachments of defined sizes or locations such as sticky notes or photos. The scanner can automatically recognize the location of the attachment and will then exclude that zone from triggering alert conditions. Skew Reducer helps ensure straight paper feeding, should you be scanning mixed batches of differing thicknesses of documents then the "skew reducer" eliminates the risk of physical skew being carried over from one sheet in a mixed batch to the next ensuring that each document is captured with the utmost precision and simplicity. Multi-segmented pick rollers that rotate independently ensure that if a document goes through skewed then this will not affect the alignment of the next document. Integrated within the operating panel a backlight enhanced LCD shows useful information such as current scanner settings, operating status and a paper counter, in addition the fi-7480 comes with Scanner Central Admin tools that includes functions that system administrators can use to manage the installation and operation of multiple scanners, monitor operation status and update drivers and software from one location. This ability dramatically reduces the cost and work that goes into setting up, operating and maintaining many scanners in an organization and also in expanding the scanner network to multiple locations. The fi-7480 comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high-quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well.

Features Summary

Efficient scanning
With automatic duplexing and speeds up to 160 ppm in color, grayscale, and black and white, this scanner ensures quick and efficient processing of documents. Its ability to handle a wide range of document sizes, from A4 to long papers up to 5588 mm, makes it versatile for various scanning needs.
Advanced image quality
The scanner's Dual CCD sensors, combined with a white LED array, provide high-quality scans with a max optical resolution of 600 DPI. Features like Advanced DTC, Multi-Image Output, and automatic color detection enhance image clarity, ensuring that scans are both accurate and vibrant.
Convenient features
Designed to improve workflow, the scanner includes a built-in LCD screen for easy operation and features such as Blank Page Detection, Deskew, and Ultrasonic Multi Feed Detection to streamline the scanning process. Its compatibility with ENERGY STAR standards also ensures energy efficiency during operation.

Specification Summary

Product Description

Ricoh fi-7480 - document scanner - desktop - USB 3.0

Device Type

Document scanner - desktop

Interface Type

USB 3.0

Scanning Sensor Type

Dual CCD

Light Source

White LED array

Max Supported Document Size

304.8 x 431.8 mm

Input Type

Colour

Grayscale / Color Depth (External)

8-bit (256 grey levels) / 24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Max Document Scan Speed

160 ppm (mono) / 160 ppm (colour)

Max Document Size

304.8 mm x 5588 mm

Automatic Duplexing

Yes

Supported Document Type

Plain paper, plastic card

Document Feeder Type

Automatic

Document Storage Capacity

100 sheets

Power

AC 120/230 V

System Requirements

Microsoft Windows Vista (32/64 bits), Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2 x64 Edition, Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit)

Dimensions (WxDxH)

38 cm x 20.9 cm x 16.8 cm

Weight

7.6 kg

Environmental Standards

ENERGY STAR Qualified

Specifications

EAN / GTIN:

4939761308444

General

Type

Document scanner - desktop

Interface Type

USB 3.0

Max Supported Document Size

304.8 x 431.8 mm

Scanner

Input Type

Colour

Grayscale Depth (External)

8-bit (256 grey levels)

Colour Depth (External)

24-bit (16.7 million colours)

Optical Resolution

600 dpi x 600 dpi

Interpolated Resolution

1200 dpi x 1200 dpi

Automatic Duplexing

Yes

Scanning Sensor Type

Dual CCD

Bulb / Light Source Type

White LED array

Max Document Scan Speed B/W

160 ppm

Max Document Scan Speed Colour

160 ppm

Scanner Speed Details

80 ppm - landscape colour - A4 ¦ 80 ppm - landscape greyscale - A4 ¦ 80 ppm - landscape B&W - A4 ¦ 160 ipm - duplex - landscape colour - A4 - 200 dpi ¦ 160 ipm - duplex - landscape greyscale - A4 - 200 dpi ¦ 160 ipm - duplex - landscape B&W - A4 - 200 dpi ¦ 160 ipm - duplex - landscape colour - A4 - 300 dpi ¦ 160 ipm - duplex - landscape greyscale - A4 - 300 dpi ¦ 160 ipm - duplex - landscape B&W - A4 - 300 dpi ¦ 65 ppm - portrait B&W - A4 ¦ 65 ppm - portrait greyscale - A4 ¦ 65 ppm - portrait colour - A4 ¦ 130 ipm - portrait B&W - A4 - 200 dpi ¦ 130 ipm - portrait greyscale - A4 - 200 dpi ¦ 130 ipm - portrait colour - A4 - 200 dpi ¦ 130 ipm - portrait B&W - A4 - 300 dpi ¦ 130 ipm - portrait greyscale - A4 - 300 dpi ¦ 130 ipm - portrait colour - A4 - 300 dpi

Scanner Features

Multi Color Dropout, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, Ultrasonic Multi Feed Detection, Punch Hole Removal, Deskew, Blank Page Detection, edge cleanup

Compliant Standards

TWAIN, ISIS

Media Handling

Max Document Size

304.8 mm x 5588 mm

Supported Document Type

Plain paper, plastic card

Document Feeder Type

Automatic

Document Storage Capacity

100 sheets

Expansion / Connectivity

Interfaces Details

USB 3.0 - Type B

Miscellaneous

Cables Included

1 x USB cable

Compliant Standards

RoHS

Environmental Standards

ENERGY STAR Certified

Yes

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V

Power Consumption Operational (Standby)

43 watt

Power Consumption Stand by

0.35 watt

Power Consumption Sleep

1.4 watt

Software / System Requirements

Software Included

Drivers & Utilities, ScanSnap Manager, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture

OS Required

Dimensions & Weight

Width

38 cm

Depth

20.9 cm

Height

16.8 cm

Weight

7.6 kg

Environmental Parameters

Min Operating Temperature

5 °C

Max Operating Temperature

35 °C

Humidity Range Operating

20 - 80% (non-condensing)
