Startech 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

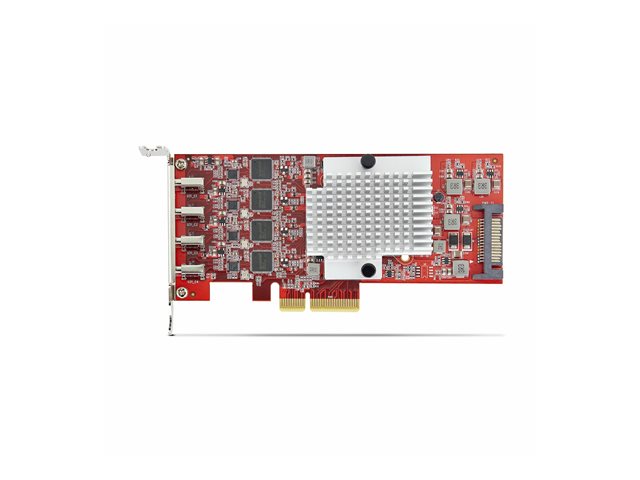

Images for illustrative purposes

Startech 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

View all STARTECH.COM PCI / M.2 Cards and Adapters - Visit the STARTECH.COM Store (P10Q4C-USB-CARD-LP) - (ECE11835759)

Startech 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA - USB adapter - PCIe 3.0 x4 low profile - USB-C 3.2 Gen 2 x 4 - TAA Compliant

Dedicated USB Controllers
USB 3.2 Gen 2 (10Gbps) Performance
Charge and Sync USB Devices
Compatibility

FREE Delivery on orders over €250

5 Available to Ship
Order within 15Hrs 19Mins for: FREE Delivery (8 Jun or 9 Jun)

€289.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

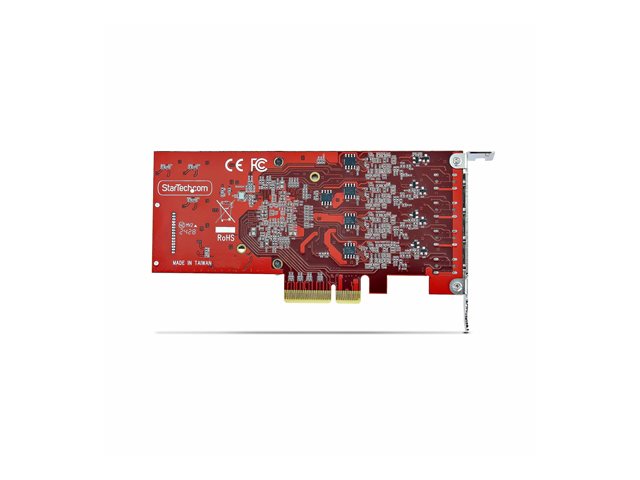

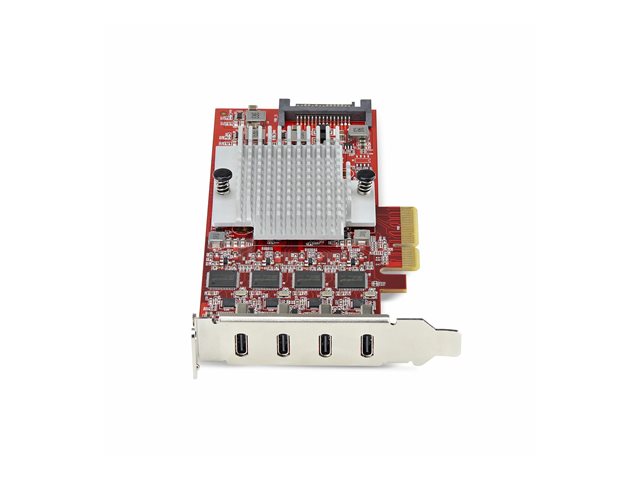

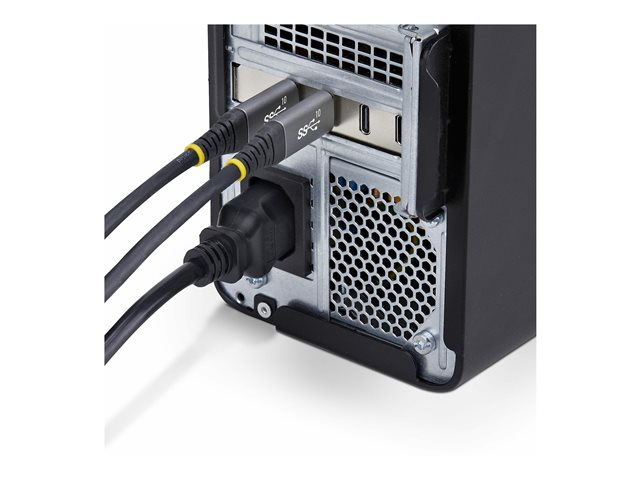

Expand a desktop or server's USB connectivity with four external USB Type-C 10Gbps ports using this PCI Express 3.0 expansion card. It provides up to 5V 3A (15W) per USB-C port for charging and syncing devices. The high bandwidth is ideal for large file transfers, high-resolution photo/video editing on external storage, and high-speed USB network adapters. If the motherboard power is insufficient, a built-in SATA power connector can supply additional power. The card is plug-and-play in Windows, Linux, and macOS and is compatible with PCI Express 3.0 x4, x8, and x16 slots. The PCIe card ships with a low-profile bracket, and a standard profile bracket is included for maximum system compatibility.

Features Summary

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices

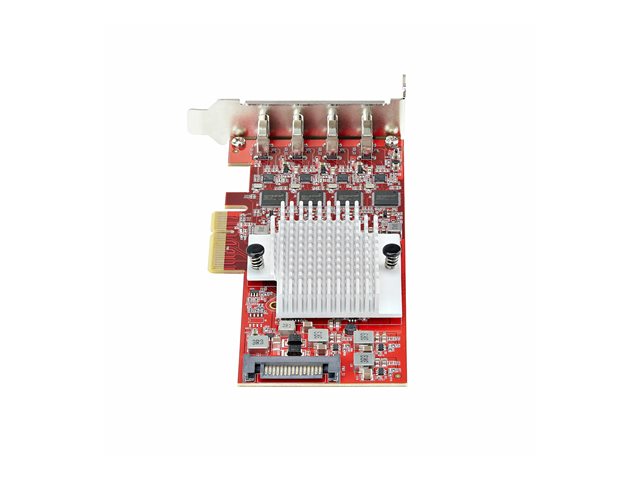

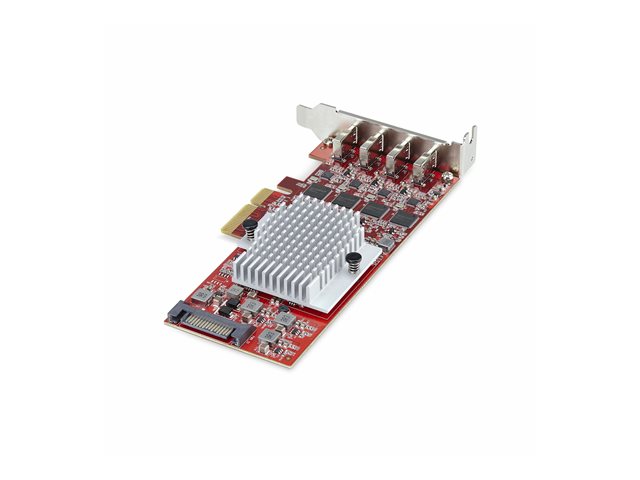

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility

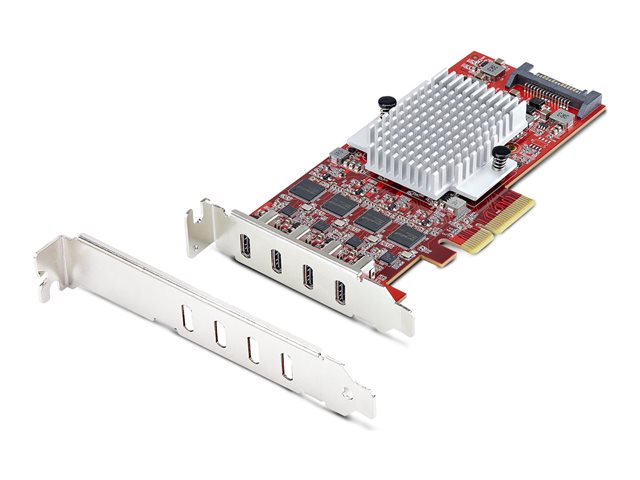

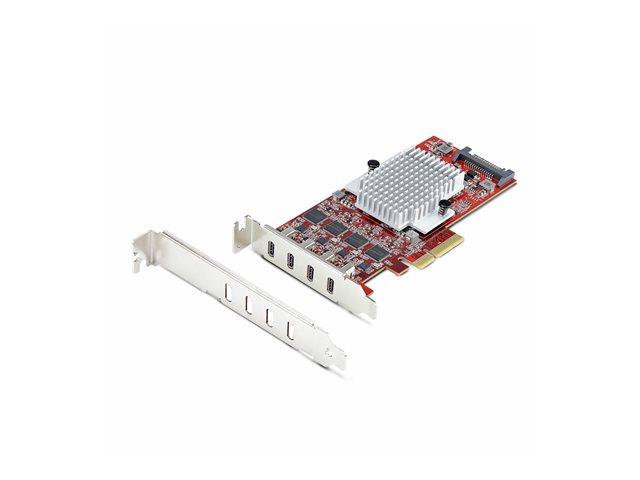

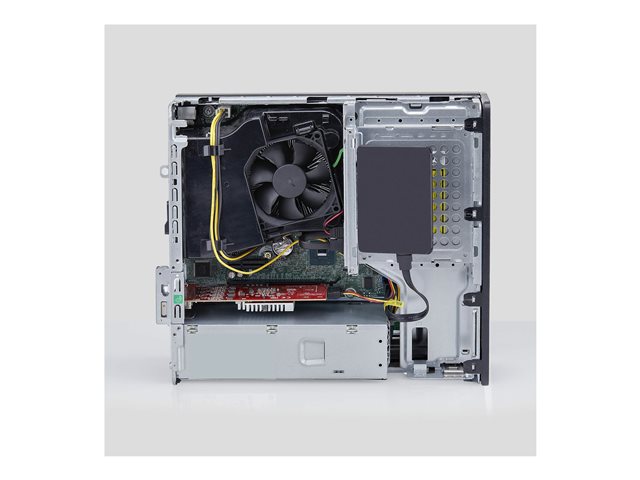

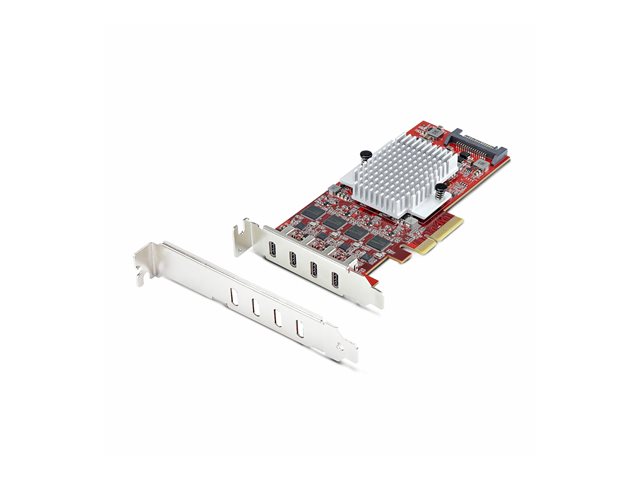

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.

Specification Summary

Product Description

Startech 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA - USB adapter - PCIe 3.0 x4 - USB-C 3.2 Gen 2 x 4 - TAA Compliant

Device Type

USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x4

Ports

USB-C 3.2 Gen 2 x 4

Dimensions (WxDxH)

5.62 cm x 14 cm x 7.92 cm

Weight

100 g

Data Link Protocol

USB-C

Data Transfer Rate

10 Gbps

Compliant Standards

USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2

System Requirements

Linux 2.6.31 or later, Microsoft Windows 10 / 11, Microsoft Windows Server 2019/2022 Standard, Apple macOS Sonoma, Apple macOS Sequoia 15.x

TAA Compliant

Yes

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0065030920292

General

Device Type

USB adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 3.0 x4

Networking

Ports

USB-C 3.2 Gen 2 x 4

Connectivity Technology

Wired

Data Link Protocol

USB-C

Data Transfer Rate

10 Gbps

Features

Built-in SATA power connector, UASP

Compliant Standards

USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2

Expansion / Connectivity

Interfaces

4 x USB-C - 24 pin USB-C - female (external) ¦ 1 x SATA power - 15 pin Serial ATA power (internal)

Miscellaneous

Included Accessories

Low-profile bracket, standard bracket

Compliant Standards

WEEE

TAA Compliant

Yes

Software / System Requirements

OS Required

Linux 2.6.31 or later, Microsoft Windows 10 / 11, Microsoft Windows Server 2019/2022 Standard, Apple macOS Sonoma, Apple macOS Sequoia 15.x

Dimensions & Weight

Width

5.62 cm

Depth

14 cm

Height

7.92 cm

Weight

100 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

85 °C

Humidity Range Operating

20 - 80% RH (non-condensing)
