EAN / GTIN:
4711027791289

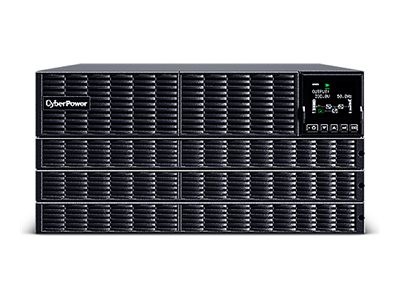

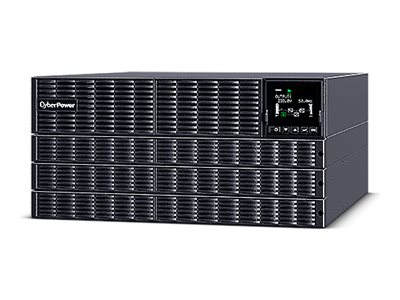

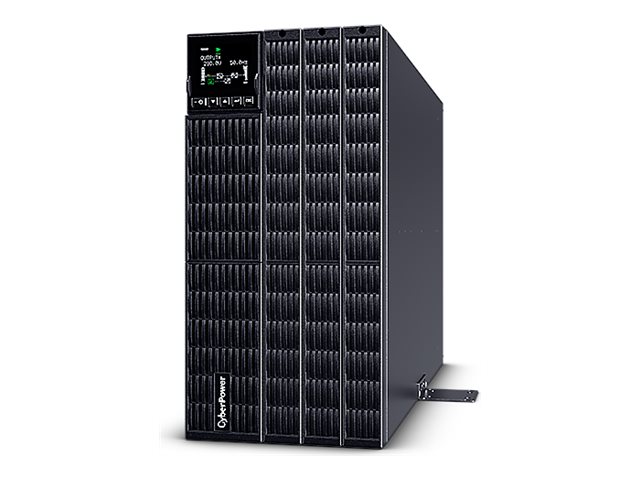

Device Type
UPS - rack-mountable / external
Input Voltage Range
AC 110 - 300 V
Input Voltage Margin
± 10%
Frequency Required
50/60 Hz ± 10Hz
Input Connectors
1 x hardwire
Power Output Connectors Details
Hardwire ¦ 4 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19
Output Voltage
AC 208/220/230/240 V ± 1%
Power Capacity
6000 Watt / 6000 VA
Surge Energy Rating
1335 Joules
Circuit Protection
Circuit breaker, fuse, electronic current limit
Total Harmonic Distortion (THD)
2 %
Run Time (Up To)
23 min at half load ¦ 7.6 min at full load
Remote Management Interface
RS-232, USB
Remote Management Protocol
SNMP, HTTP
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x relay output
Cables Included
4 x power cable - external ¦ USB cable - external ¦ Phone cable - external
Rack Mounting Kit
Included
Features
Auto-sensing, metal housing, built-in bypass switch, LCD display, rotatable LCD panel, double conversion, overload protection, automatic inverter bypass, user-replaceable batteries, Enhanced Battery Management (EBM), built-in EMI filter, LED indicator, audible alarm, start on battery, Smart Battery Management (SMB)
Software / System Requirements
Software Included
PowerPanel Business
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 95% (non-condensing)
