Zyxel NWA90AX Pro - radio access point - 2.5G PoE

Images Manuals

Images for illustrative purposes

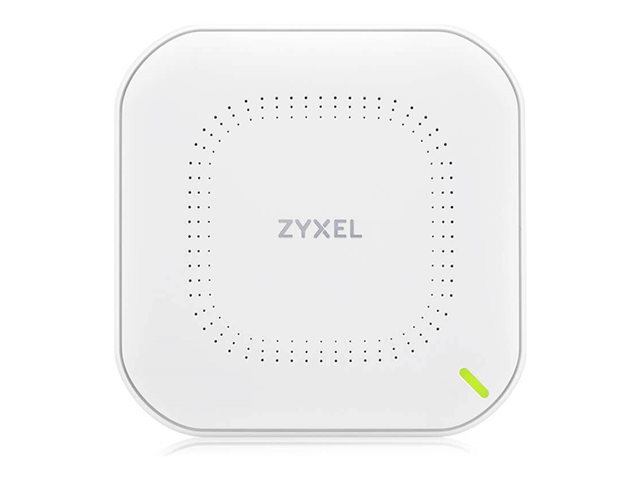

Zyxel NWA90AX Pro

View all ZYXEL Access Points - Visit the ZYXEL Store (NWA90AXPRO-EU0102F) - (MMECI14413)

NWA90AX Pro - radio access point - 2.5G PoE uplink, 3x3 + 2x2 MU-MIMO aerial, AX3000 Multi-gig, NebulaFlex Cloud - Wi-Fi 6

Multi-gig Wi-Fi 6 access point for small businesses
Boost your Wi-Fi performance
Secure authentication to protect business networks
Configure your wireless network in minutes
Easy deployment with Zyxel's Smart Mesh

FREE Delivery on orders over €250

20 Available to Ship
Order within 5Hrs 24Mins for: Delivery (8 Jun or 9 Jun)

€122.69 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Multi-gig Wi-Fi 6 access point for small businesses. AX3000 Dual-Radio Multi-gig PoE access point with support for secure authentication.

Features Summary

Multi-gig Wi-Fi 6 access point for small businesses
Offering AX3000 Wi-Fi speeds with a 2.5G Ethernet uplink port, the Zyxel NWA90AX Pro delivers powerful and faster Wi-Fi 6 speeds for small businesses, SoHo and home offices. Small business owners looking for an affordable Wi-Fi 6 access point with multi-gig connectivity, the Zyxel NWA90AX Pro is undoubtedly the ideal choice for them to support more connected devices and applications at the fastest speeds.
Boost your Wi-Fi performance
To better take advantage of faster speeds in the 5 GHz band, the Zyxel NWA90AX Pro features 3x high-gain antennas to boost Wi-Fi signals and extend coverage, especially to previously hard-to-reach areas. In addition to boosting Wi-Fi signals, the NWA90AX Pro is also equipped with high-quality multi-gig Ethernet connections. Because it can run on regular Cat 5e cabling, the 2.5G uplink port breaks the 1.0G bottleneck without the need for rewiring, making it easy to create an affordable high-speed network environment for a business or home.
Secure authentication to protect business networks
With captive portal support and IEEE802.1x authentication, the NWA90AX Pro not only offers small business users enterprise-level security to protect their networks, but also the flexibility to customize wireless usage logging for marketing and business recognition.
Configure your wireless network in minutes
No networking expertise required - the NWA90AX Pro is designed to be easily configured and installed in places such as small hotels, retail stores, restaurants and home offices.
Easy deployment with Zyxel's Smart Mesh
Zyxel's Smart Mesh technology automatically creates dynamic wireless connections between access points and alleviates complicated, awkward cabling when deploying Wi-Fi. Smart Mesh technology can save you from additional cabling by enabling wireless connectivity between access points for extended coverage and flexible deployment.

Specification Summary

Product Description

Zyxel NWA90AX Pro - radio access point - 2.5G PoE uplink, 3x3 + 2x2 MU-MIMO aerial, AX3000 Multi-gig, NebulaFlex Cloud - Wi-Fi 6

Device Type

Radio access point

Form Factor

External

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (5 GHz): 2.4 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps

Included Accessories

Mounting plate, mounting screws

Power Over Ethernet (PoE) Supported

PoE

Power

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

14 cm x 14 cm x 3.75 cm

Weight

352 g

Specifications

EAN / GTIN:

4718937630592

General

Device Type

Radio access point

Width

14 cm

Depth

14 cm

Height

3.75 cm

Weight

352 g

Networking

Form Factor

External

Connectivity Technology

Wireless

Data Transfer Rate

3 Gbps

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac

Frequency Band

2.4 GHz, 5 GHz

Performance

Maximum data rate (5 GHz): 2.4 Gbps ¦ Maximum data rate (2.4 GHz): 575 Mbps

Wi-Fi Rating

AX3000

Features

3x3 MIMO technology, 2x2 MIMO 2.4GHz, Nebula Cloud Managed Mode, NebulaFlex Pro support, band steering, WDS/Mesh, Fast Roaming, Pre-Authentication, PMK Caching, Dynamic Channel Selection (DCS), MU-MIMO technology, Advanced Cellular Coexistence (ACC), L2-isolation, MAC address filtering, rogue AP detection, Wi-Fi Multimedia (WMM) support, VLAN support, Unscheduled Automatic Power Save Delivery (U-APSD), IPv6 support, ZON Utility

Encryption Algorithm

WPA3, WPA2-PSK, WPA, WEP, WPA2-Enterprise

Authentication Method

RADIUS, Extensible Authentication Protocol (EAP)

Compliant Standards

IEEE 802.1x, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at

Aerial

Antenna

Internal

Expansion / Connectivity

Interfaces

1 x 2.5 GBase-T (PoE) - RJ-45

Miscellaneous

Included Accessories

Mounting plate, mounting screws

MTBF

420,539 hour(s)

Compliant Standards

FCC Part 15 C, FCC Part 15 E, ETSI EN 300 328, EN 301 893, LP0002, EN 60601-1-2, EN 301 489-1, FCC Part 15 B, EN 301 489-17, EN55022, EN55024, EN 61000-3-2, EN 61000-3-3, BSMI CNS 13438, EN 60950-1, IEC 60950-1, BSMI CNS 14336-1

Power

Power Over Ethernet (PoE) Supported

PoE

Power Device

External power adapter

Voltage Required

AC 100-240 V (50/60 Hz)

Dimensions & Weight (Shipping)

Shipping Width

15.5 cm

Shipping Depth

24 cm
