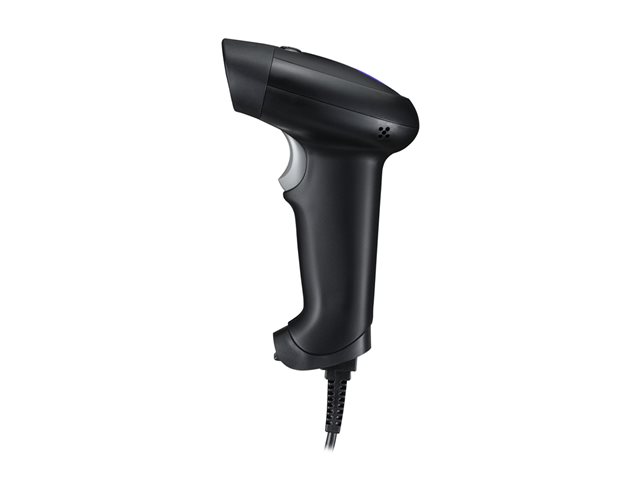

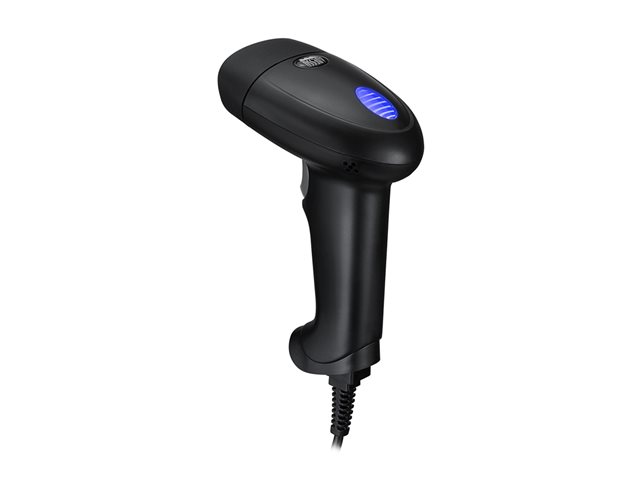

Adesso NuScan 2600U

Name: Adesso NuScan 2600U
Brand: Adesso
SKU: MMECD12244
Price: 83.70 EUR
Availability: InStock

View all Adesso Barcode Scanners - Visit the Adesso Store (NUSCAN 2600U) - (MMECD12244)

Model: Adesso NuScan

NuScan 2600U - barcode scanner

2D scanning engine
Reliable data collection
Superior scanning performance
Drop protection
Long scanning range

FREE Delivery on orders over €250

**Note: PLEASE CHECK, most manufacturers do not provide cables with Handheld Scanners

16 Available to Ship
Order within 4Hrs 37Mins for: Delivery (8 Jun or 9 Jun)

€83.70 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Adesso NuScan 2600U is capable of scanning a wide range of 1D and 2D barcodes, such as UPC-A, UPC-E, EAN-8, EAN-13, PDF417, QR Code, Data Matrix, and Micro QR Code, with its 640*480 CMOS imager. The NuScan 2600U has a 10-inch scan depth. The drop-protection design prevents damage due to accidental drops of less than 1.5 meters. With all these great features, the NuScan 2600U is truly your ultimate barcode scanner.

Features Summary

2D scanning engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.
Reliable data collection
Its built-in decoder can read the majority of 1D & 2D barcodes and its driver-less operation makes it easy to use with both Windows and Mac operating systems.
Superior scanning performance
Equipped with its CMOS sensor the device has a motion tolerance of 5 inches per second, offering fast and accurate scanning results.

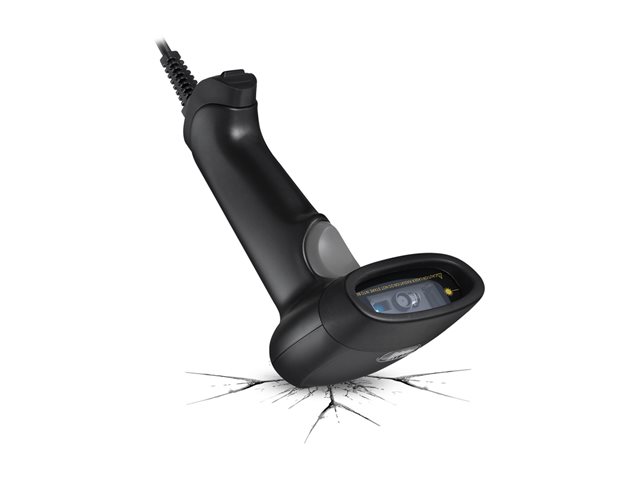

Drop protection
With its drop protection design, the NuScan 2600U less likely to become damaged due to accidental drops.

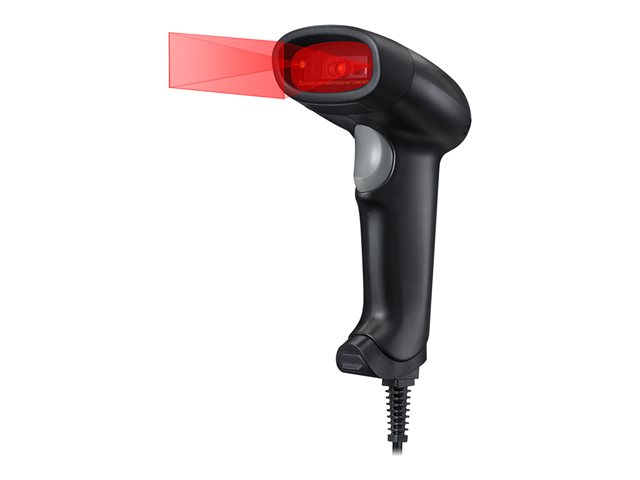

Long scanning range
The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.

Specification Summary

Product Description

Adesso NuScan 2600U - barcode scanner

Type

Barcode scanner - handheld - USB - decoded

Minimum Bar Width

5 mil

Scan Element Type

2D imager - white LED

Sensor Resolution

640 x 480

Scan Speed

300 scan / sec - 30 frames / sec

Connectivity Technology

Wired

System Requirements

Apple MacOS X, Microsoft Windows 2000/XP/Vista/7/8/10

Weight

118 g

Specifications

EAN / GTIN:

0783750010641

General

Type

Barcode scanner - handheld

Barcode

Interface Type

USB

Minimum Bar Width

5 mil

Scan Element Type

2D imager - white LED

Sensor Resolution

640 x 480

Light Source Wave Length

640 nm

Scan Speed

300 scan / sec

Frame Rate

30 frames / sec

Max Working Distance

30.5 cm

Skew (Degrees)

Pitch (Degrees)

Print Contrast Signal (PCS)

25%

Decode Capability

Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISSN, Matrix 2 of 5, UPC-A, UPC-E, PDF417, MicroPDF417, Micro QR code, Data Matrix, QR code, Aztec code

TTL Decoding

Decoded

Connectivity Technology

Wired

OK Notification

Beeper, LED indicator

Features

Drop protection

Expansion / Connectivity

Interfaces

1 x USB

Miscellaneous
