Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

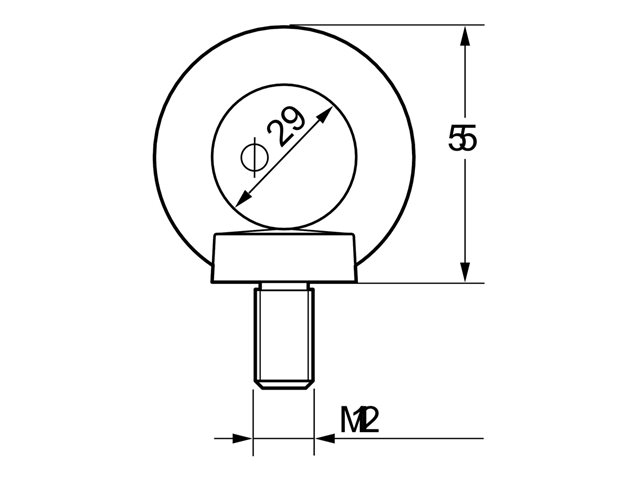

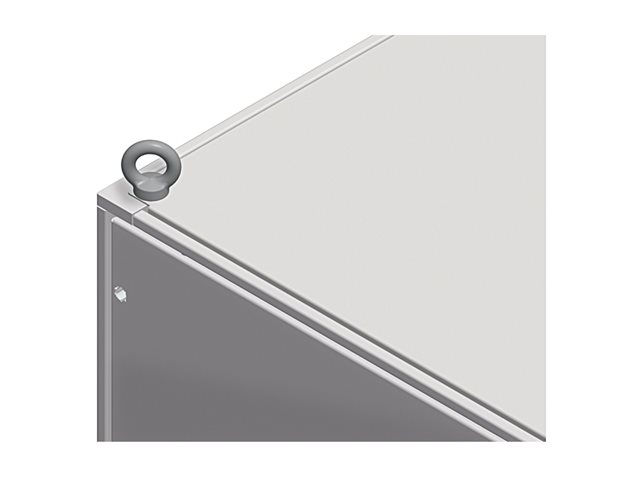

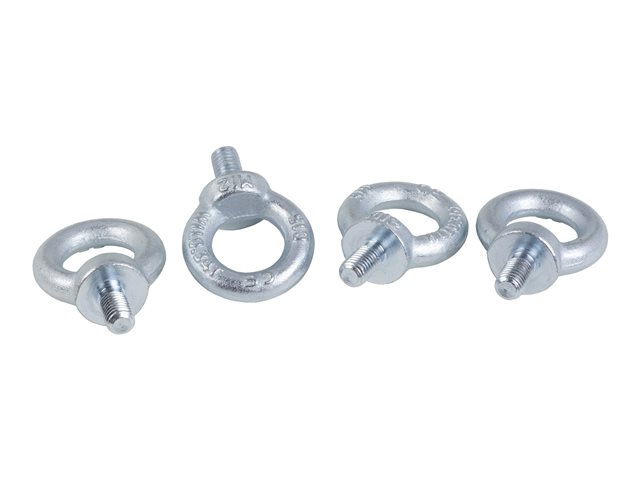

Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4.
Specification Summary
Product Description
Schneider - eyebolt
Packaged Quantity
4 (specifications are for single item)
Product Material
Cast steel
Dimensions (WxDxH)
5.5 cm x 2.4 cm x 6.25 cm
Features
Galvanised, M12 thread
Manufacturer Warranty
18 months warranty
