Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port

Images for illustrative purposes

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port

Name: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port
Brand: EATON
SKU: ECE7748141
Price: 469.75 EUR
Availability: OutOfStock

View all EATON Network Switches - Visit the EATON Store (NGI-U16) - (ECE7748141)

Model: Eaton Tripp

Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port - 10/100/1000 Mbps, DIN Mount - Switch - unmanaged - 16 x 10/100/1000 - DIN rail mountable - DC power - TAA Compliant

16-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
Rugged Metal Housing Built to Last in Harsh Environments
Unmanaged Switch Requires Little to No Configuration
Works with the Most Popular Web Browsers
Pre-Installed DIN Rail Clip Allows for Convenient Installation
TAA-Compliant for GSA Schedule Purchases

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€626.11~~

€469.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, DIN Mount.

Features Summary

16-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Rugged Metal Housing Built to Last in Harsh Environments
The compact NGI-U16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NGI-U16 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U16 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

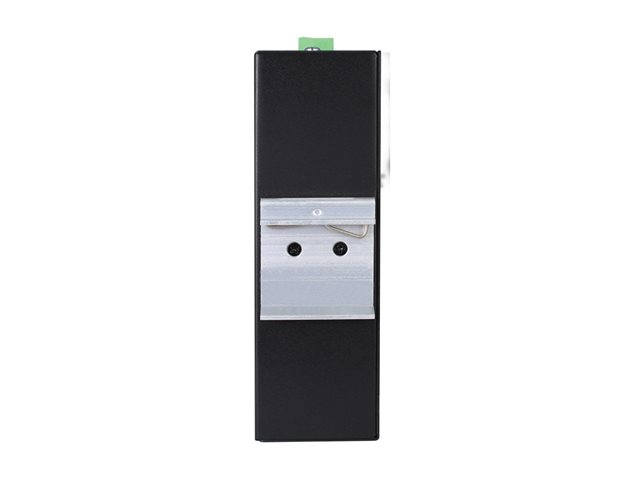

Pre-Installed DIN Rail Clip Allows for Convenient Installation

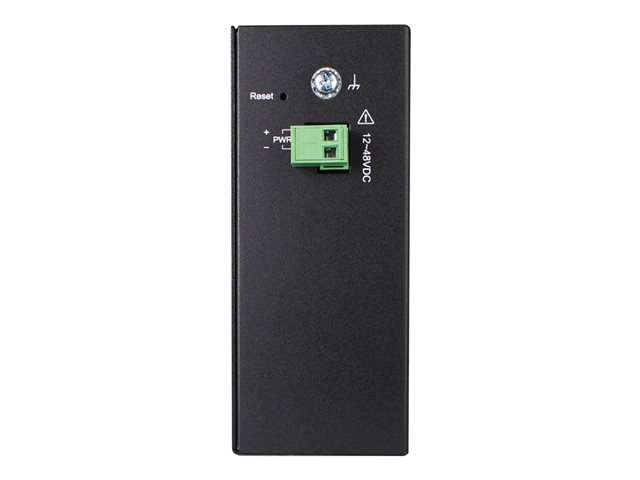

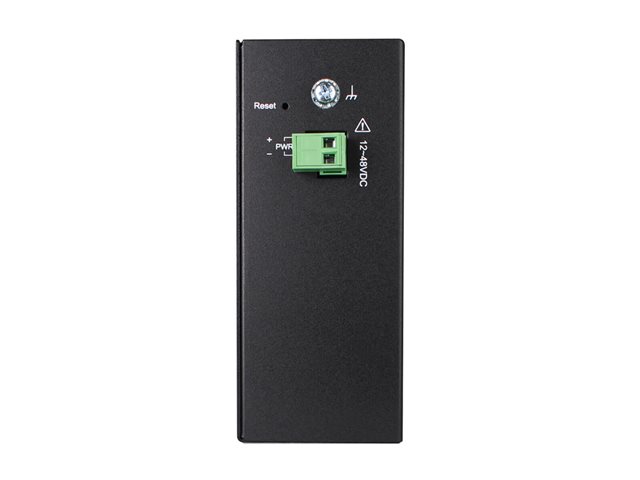

The NGI-U16 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12–48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specification Summary

Product Description

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port - 10/100/1000 Mbps, DIN Mount - switch - 16 ports - unmanaged - TAA Compliant

Device Type

Switch - 16 ports - unmanaged

Ports

16 x 10/100/1000

Performance

Switching capacity: 32 Gbps

MAC Address Table Size

8000 entries

Jumbo Frame Support

10000 bytes

Features

Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Power

DC 12 - 48 V

Dimensions (WxDxH)

11.9 cm x 4.82 cm x 16 cm

Weight

900 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

037332265852

General

Device Type

Switch - 16 ports - unmanaged

Enclosure Type

DIN rail mountable

Ports

16 x 10/100/1000

Performance

Switching capacity: 32 Gbps

MAC Address Table Size

8000 entries

Jumbo Frame Support

10000 bytes

Features

Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Status Indicators

Power, LAN, link/activity, transmit, receive

Expansion / Connectivity

Interfaces

16 x 10/100/1000 Base-T RJ-45

Power

Power Device

External power adapter

Voltage Required

DC 12 - 48 V

Power Consumption Operational

16 Watt

Miscellaneous

Colour

Black

Included Accessories

DIN-rail clip

Compliant Standards

RoHS, REACH, IEEE 802.3, IEEE 802.3u, Plug and Play, FCC Part 15, EN 55011, EN 61000-6-4, EN 61000-6-2, EN 55032, EN55024

TAA Compliant

Yes

Dimensions & Weight

Width

11.9 cm

Depth

4.82 cm

Height

16 cm

Weight

900 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C
