Eaton Tripp Lite series Unmanaged Industrial Gigab

Images Manuals

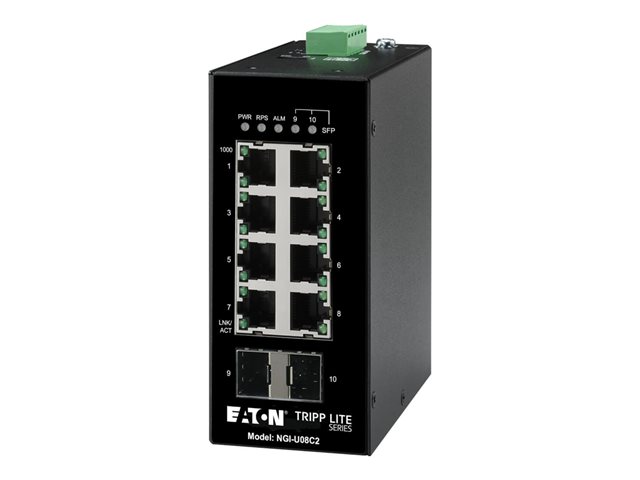

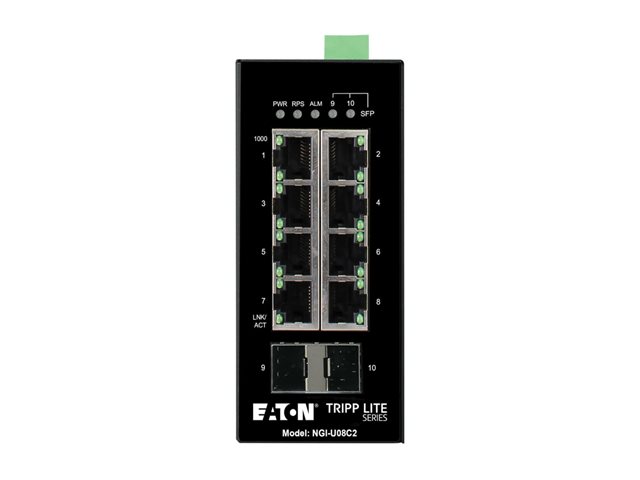

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port

Images for illustrative purposes

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port

Name: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port
Brand: EATON
SKU: ECE7748208
Price: 405.83 EUR
Availability: OutOfStock

View all EATON Network Switches - Visit the EATON Store (NGI-U08C2) - (ECE7748208)

Model: Eaton Tripp

Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, 2 GbE SFP Slots, DIN Mount - Switch - unmanaged - 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) - DIN rail mountable - DC power - TAA Compliant

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
Ruggedized Metal Housing Built to Last in Harsh Environments
Unmanaged Switch Requires Little to No Configuration
Works with the Most Popular Web Browsers
Pre-Installed DIN Rail Clip Allows for Convenient Installation
TAA-Compliant for GSA Schedule Purchases

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€538.53~~

€405.83 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

8-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount.

Features Summary

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.
Works with the Most Popular Web Browsers
The NGI-U08C2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U08C2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

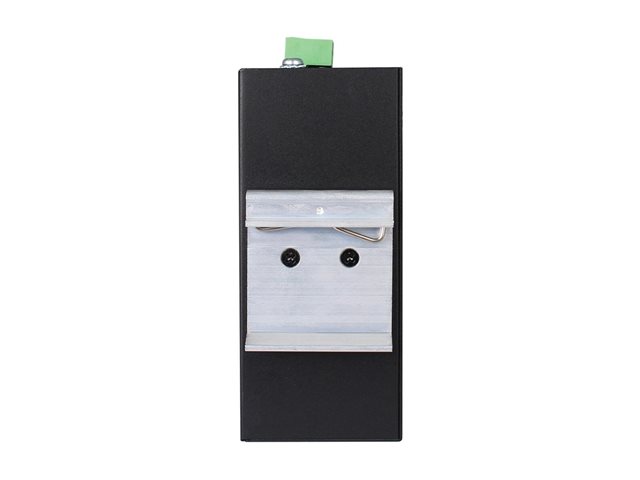

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24–48VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. Device power must be supplied by LPS (Limited Power Source) circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U08C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specification Summary

Product Description

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, 2 GbE SFP Slots, DIN Mount - switch - 8 ports - unmanaged - TAA Compliant

Device Type

Switch - 8 ports - unmanaged

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 + 2 x Gigabit SFP (uplink)

Performance

Switching capacity: 20 Gbps

MAC Address Table Size

8000 entries

Jumbo Frame Support

10000 bytes

Features

Auto-negotiation, rugged, flow control, metal housing, full duplex mode, auto-uplink (auto MDI/MDI-X)

Compliant Standards

IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p

Power

DC 24 - 48 V

Dimensions (WxDxH)

5 cm x 11.6 cm x 10 cm

Weight

558 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

037332265906

General

Device Type

Switch - 8 ports - unmanaged

Enclosure Type

DIN rail mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 + 2 x Gigabit SFP (uplink)

Performance

Switching capacity: 20 Gbps

MAC Address Table Size

8000 entries

Jumbo Frame Support

10000 bytes

Features

Auto-negotiation, rugged, flow control, metal housing, full duplex mode, auto-uplink (auto MDI/MDI-X)

Compliant Standards

IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p

Status Indicators

Status

Expansion / Connectivity

Interfaces

8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP

Power

Voltage Required

DC 24 - 48 V

Miscellaneous

Colour

Black

Included Accessories

DIN-rail clip

Compliant Standards

RoHS, REACH, FCC

TAA Compliant

Yes

Dimensions & Weight

Width

5 cm

Depth

11.6 cm

Height

10 cm

Weight

558 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

80 °C
