Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 5-Port

Images for illustrative purposes

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 5-Port

Name: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 5-Port
Brand: EATON
SKU: ECE7748192
Price: 469.75 EUR
Availability: OutOfStock

View all EATON Network Switches - Visit the EATON Store (NGI-U05POE4) - (ECE7748192)

Model: Eaton Tripp

Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 5-Port - 10/100/1000 Mbps, PoE+ 30W, DIN Mount - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - DIN rail mountable - PoE+ (120 W) - DC power - TAA Compliant

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
PoE+ Ports Deliver Power to Devices Without Access to AC Outlets
Ruggedized Metal Housing Built to Last in Harsh Environments
Unmanaged Switch Requires Little to No Configuration
Works with the Most Popular Web Browsers

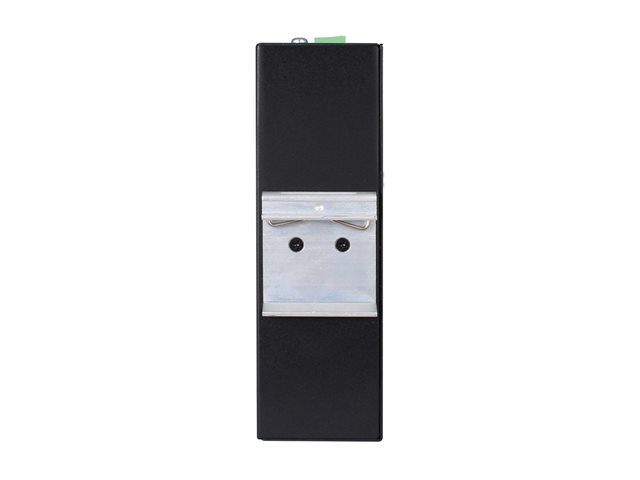

Pre-Installed DIN Rail Clip Allows for Convenient Installation
View More
TAA-Compliant for GSA Schedule Purchases

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€626.18~~

€469.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, DIN Mount.

Specification Summary

Product Description

Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 5-Port - 10/100/1000 Mbps, PoE+ 30W, DIN Mount - switch - 5 ports - unmanaged - TAA Compliant

Device Type

Switch - 5 ports - unmanaged

Ports

4 x 10/100/1000 (PoE+) + 1 x 10/100/1000

Power Over Ethernet (PoE)

PoE+

PoE Budget

120 W

Performance

Switching capacity: 10 Gbps

MAC Address Table Size

8K entries

Jumbo Frame Support

10000 bytes

Features

Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, CoS

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Power

DC 24 - 57 V

Dimensions (WxDxH)

5 cm x 11.2 cm x 16 cm

Weight

860 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

037332266033

General

Device Type

Switch - 5 ports - unmanaged

Enclosure Type

DIN rail mountable

Ports

4 x 10/100/1000 (PoE+) + 1 x 10/100/1000

Power Over Ethernet (PoE)

PoE+

PoE Budget

120 W

Performance

Switching capacity: 10 Gbps

MAC Address Table Size

8K entries

Jumbo Frame Support

10000 bytes

Features

Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, CoS

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Status Indicators

Power, PoE, LAN, data, transmit, receive

Expansion / Connectivity

Interfaces

4 x 10/100/1000 Base-T (PoE) RJ-45 ¦ 1 x 10/100/1000 Base-T RJ-45

Power

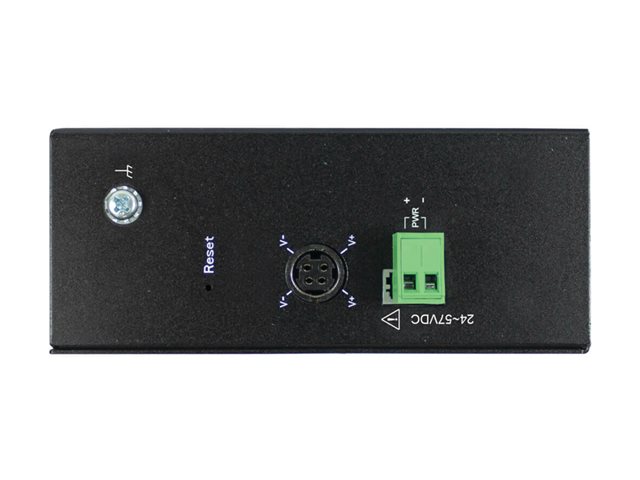

Voltage Required

DC 24 - 57 V

Power Consumption Operational

14 Watt

Miscellaneous

Colour

Black

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, FCC, RoHS, REACH, Plug and Play

TAA Compliant

Yes

Dimensions & Weight

Width

5 cm

Depth

11.2 cm

Height

16 cm

Weight

860 g

Dimensions & Weight (Shipping)

Shipping Width

59.2 cm

Shipping Depth

59.2 cm

Shipping Height

15.8 cm

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-10 °C

Max Operating Temperature

60 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C
