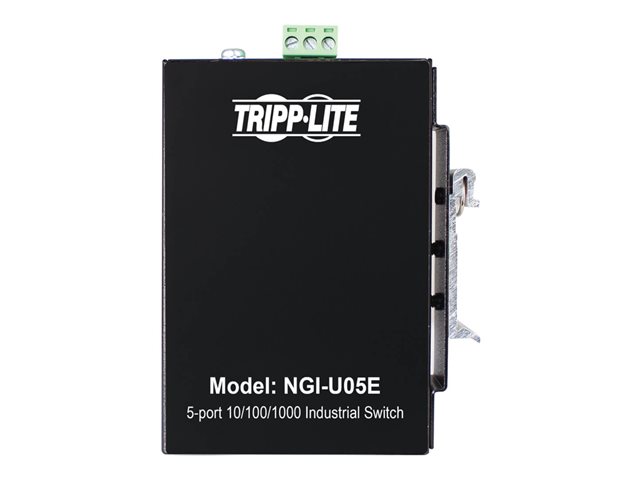

Eaton Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch

Images for illustrative purposes

Eaton Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch

Name: Eaton Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch
Brand: EATON
SKU: ECE12167830
Price: 162.10 EUR
Availability: OutOfStock

View all EATON Network Switches - Visit the EATON Store (NGI-U05E) - (ECE12167830)

Model: Eaton Tripp

Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, Ruggedized, -40░ to 75░C, EIP QoS, DIN/Wall Mount - Switch - unmanaged - 5 x 10/100/1000 - DIN rail mountable, wall-mountable - TAA Compliant - for P/N: DIN242

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
Ethernet/IP Quality of Service (EIP QoS)
Ruggedized Metal Housing Built to Last in Harsh Environments
Unmanaged Switch Requires Little to No Configuration
Works with the Most Popular Web Browsers
Flexible Mounting Options
View More
TAA-Compliant for GSA Schedule Purchases

FREE Delivery on orders over €250

0 Available to Ship
Restock 03-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€211.98~~

€162.10 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN/Wall Mount.

Features Summary

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch with EIP QoS transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ethernet/IP Quality of Service (EIP QoS)
The EIP QoS control mechanism is widely used for Ethernet/IP data streams. Based on the application requirements, this feature helps provide different priorities for different users or data streams. This helps ensure that the performance of data streams deliver at a certain level. Note: While NGI-U05E does support QoS, the feature is handled automatically by our product. If you want to control network traffic flow or prioritize specific ports to your personal preference, you must use a router in your network with a QoS tool to achieve this level of control.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05E adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05E supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NGI-U05E is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U05E accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U05E is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specification Summary

Product Description

Eaton Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, Ruggedized, -40° to 75°C, EIP QoS, DIN/Wall Mount - switch - 5 ports - unmanaged - TAA Compliant

Device Type

Switch - 5 ports - unmanaged

Ports

5 x 10/100/1000

Performance

Switching capacity: 1 Gbps

MAC Address Table Size

2000 entries

Jumbo Frame Support

9000 bytes

Features

Metal housing, MAC address auto-learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged, QoS

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Power

DC 12 - 48 V

Dimensions (WxDxH)

2.2 cm x 7.3 cm x 10.9 cm

Weight

190 g

Colour

Black

TAA Compliant

Yes

Manufacturer Warranty

3-year warranty

Designed For

P/N: DIN24240DC, DIN24480DC, DIN500AC, DIN850AC, N001-050-BK, N002-010-BK, N002-015-GY, N002-025-BK, N002-050-BK, N200-025-BK, N200-050-BK

Specifications

EAN / GTIN:

037332281517

General

Device Type

Switch - 5 ports - unmanaged

Enclosure Type

DIN rail mountable, wall-mountable

Ports

5 x 10/100/1000

Performance

Switching capacity: 1 Gbps

MAC Address Table Size

2000 entries

Jumbo Frame Support

9000 bytes

Features

Metal housing, MAC address auto-learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged, QoS

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Status Indicators

Power, LAN, transmit, receive

Expansion / Connectivity

Interfaces

5 x 10/100/1000 Base-T RJ-45

Power

Voltage Required

DC 12 - 48 V

Power Consumption Operational

3 Watt

Miscellaneous

Colour

Black

Included Accessories

DIN-rail clip, wall mount brackets

Compliant Standards

RoHS, REACH, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, FCC (USA)

TAA Compliant

Yes

Dimensions & Weight

Width

2.2 cm

Depth

7.3 cm

Height

10.9 cm

Weight

190 g

Dimensions & Weight (Shipping)

Shipping Width

12.8 cm

Shipping Depth

23.7 cm

Shipping Height

6.2 cm

Shipping Weight

310 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-40 °C

Max Operating Temperature

75 °C

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

85 °C

Compatibility Information

Designed For

P/N: DIN24240DC, DIN24480DC, DIN500AC, DIN850AC, N001-050-BK, N002-010-BK, N002-015-GY, N002-025-BK, N002-050-BK, N200-025-BK, N200-050-BK
