Range/Series Overview

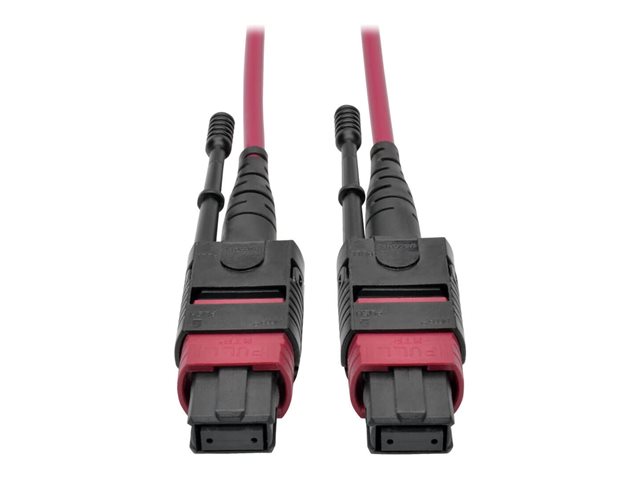

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The two-meter N845-02M-12-MG MTP/MPO Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP/MPO connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main
distribution frames) and IDF (intermediate distribution frames). It’s colored magenta for instant identification as an OM4 cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

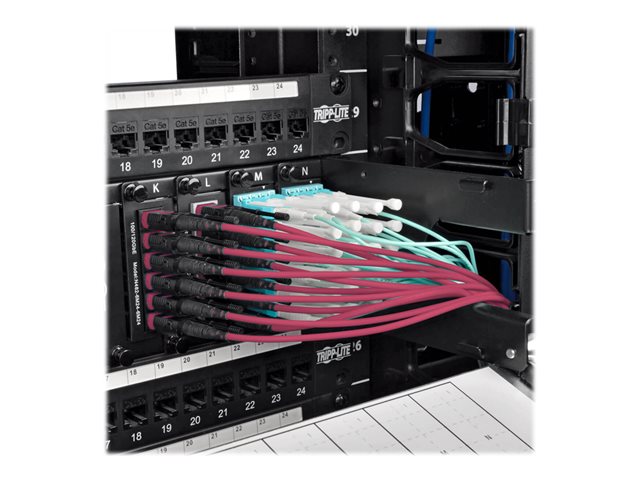

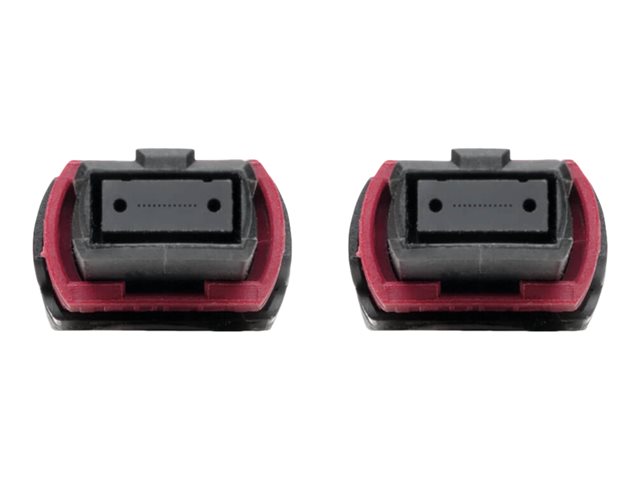

The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
Features Summary
- Reliable Connectivity
This cable features MTP/MPO multi-mode connectors on both ends, ensuring stable and efficient data transmission for demanding network environments. - High Data Capacity
With 12 fibers and a core/cladding diameter of 50 / 125 microns, this multimode cable supports the data needs of modern applications such as 40/100GBASE-SR4. - Flexible Installation
The plenum-rated design allows for versatile installation options in indoor environments, meeting safety requirements for cable management. - Thermal Resilience
This fiber optic cable can withstand temperatures ranging from -20°C to 60°C, making it suitable for various operating conditions. - Easy Handling

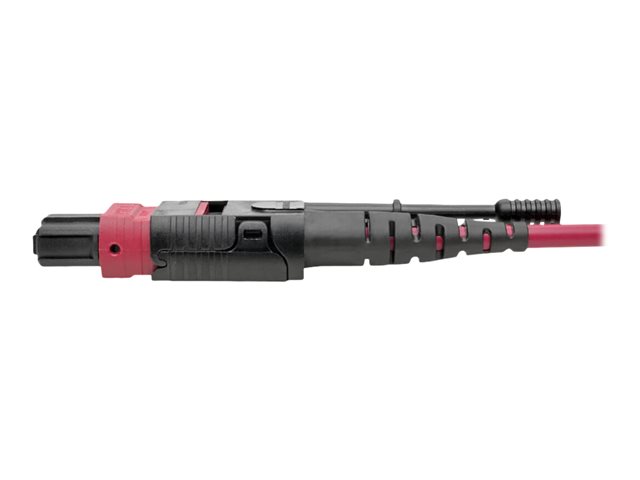

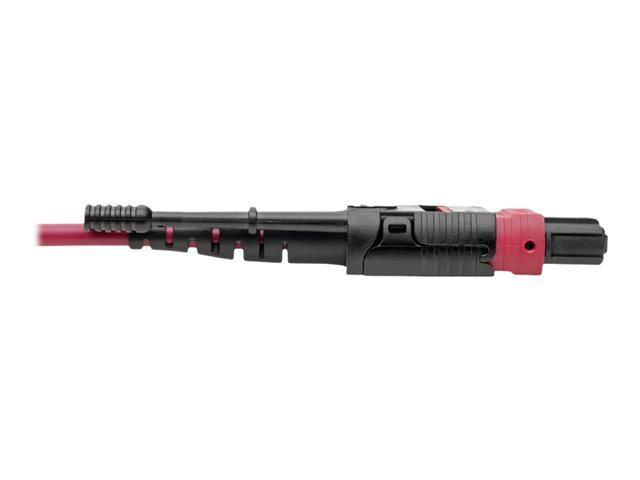

The push-pull connector feature simplifies installation and maintenance, allowing for quick connection and disconnection without hassle.
Specification Summary
Product Description
Eaton Tripp Lite Series 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 2 m - patch cable - 2 m - magenta
Technology
Simplex fibre optic
Type of Fibre Optics
Multimode
Features
Plenum, push-pull connector
Core / Cladding Diameter
50 / 125 micron
Connector
MTP/MPO multi-mode - female
Connector (Second End)
MTP/MPO multi-mode - female
Manufacturer Warranty
Limited lifetime warranty
