Device Type
Fibre media converter
Localisation
Australia, United Kingdom, North America, Europe
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate
1 Gbps
Max Transfer Distance
100 m

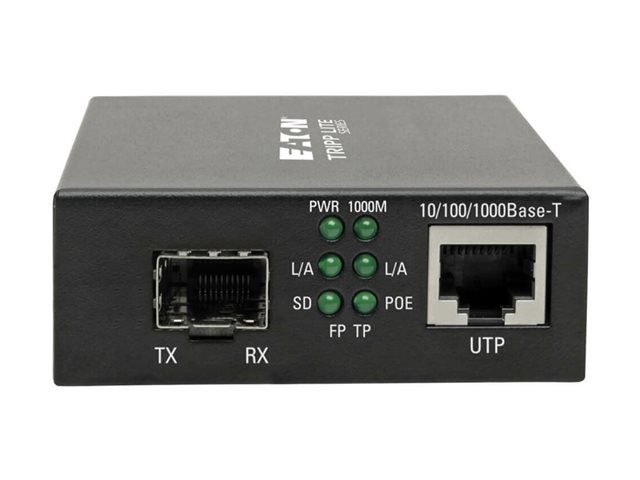

Status Indicators
Power, link/activity, port transmission speed, status, PoE
Features
Half duplex mode, full duplex mode, Automatic Media-Dependent Interface Crossover (MDIX), Link Fault Pass Through function (LFP)
Compliant Standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Interfaces
1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-X - SFP female
Included Accessories

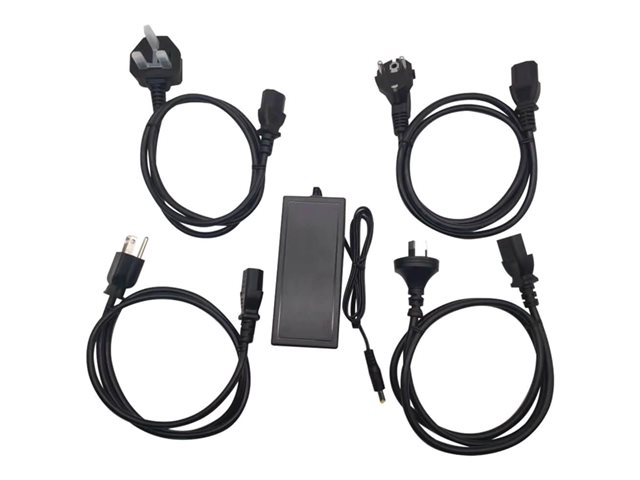

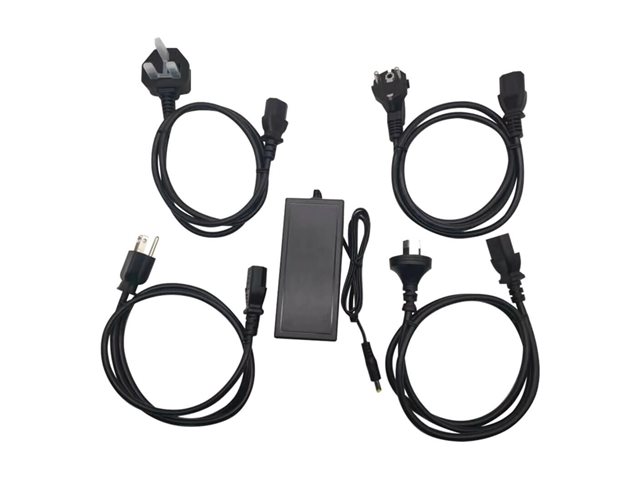

4 power plug adapters
Cables Included
Power cable - 1.1 m
Compliant Standards
Plug and Play, Mexico NOM, RoHS, RoHS3, REACH, UKCA, WEEE, FCC
Power Over Ethernet (PoE)
PoE+
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-20 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 90% RH (non-condensing)
Compatibility Information
Designed For
P/N: N001-025-BK, N201-025-BL, N286-01GLX-SLX, N286-01GSX-MDLC
