Startech patch cable

View all STARTECH.COM Network and Ethernet Cables - Visit the STARTECH.COM Store (N6PAT25CMBLS) - (MMECQ62489)

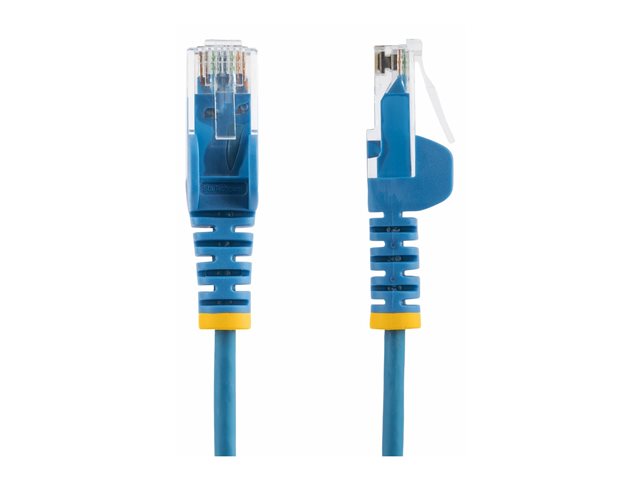

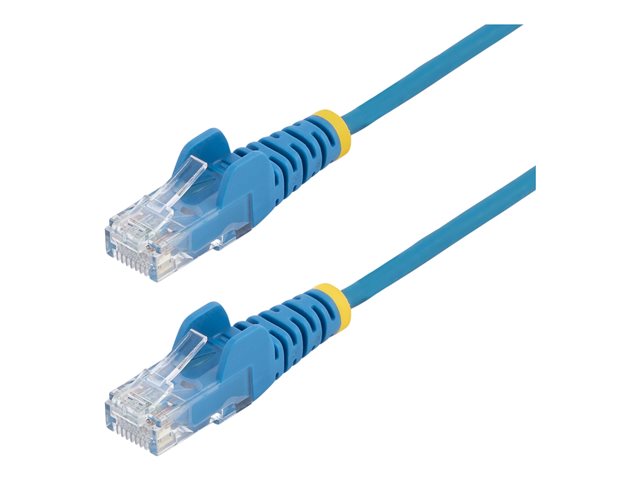

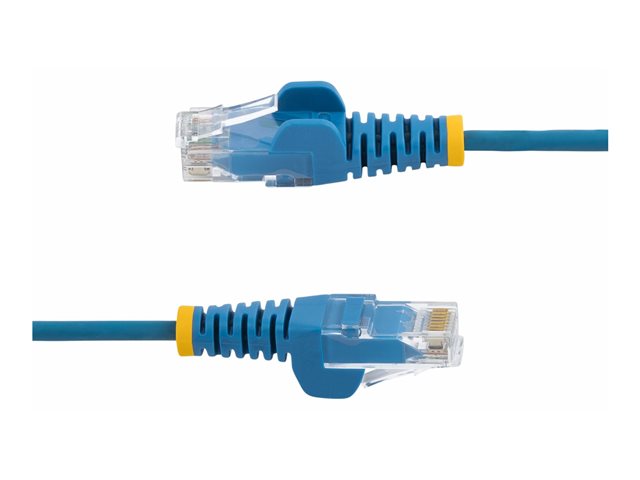

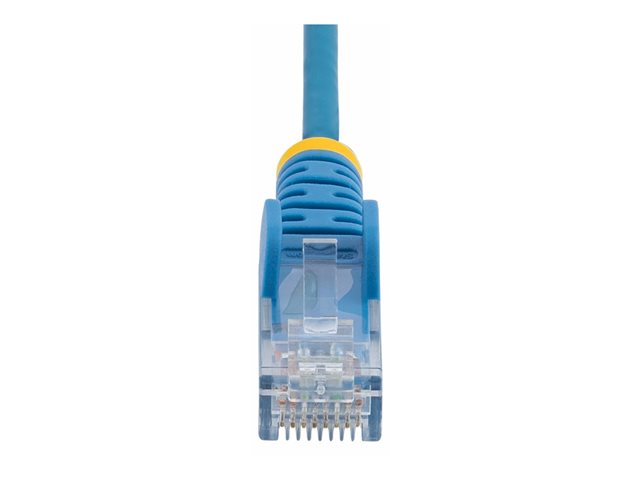

Startech patch cable - 25 cm - blue

High-speed performance
Robust construction
Environmentally friendly
Advanced signal integrity
Secure installation

FREE Delivery on orders over €250

20 Available to Ship
Order within 1Hrs 47Mins for: Delivery (8 Jun or 9 Jun)

€7.53 Incl Vat

Bulk Pricing from €4.17

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The StarTech.com patch cable provides reliable connectivity with speeds of up to 10 Gbps, making it suitable for various networking applications. This cable is compliant with IEEE 802.3bt standards and features flame-retardant properties, ensuring safety in multiple environments. The design incorporates pure bare copper conductors and a Low Smoke Zero Halogen (LSZH) jacket, allowing for minimal environmental impact while offering durability and flexibility. This cable supports 100 W PoE++ technology, making it ideal for powering devices while transmitting data efficiently.

With minimized Near-End Crosstalk (NEXT) and reduced Return Loss (RL), the cable enhances signal integrity and performance across a range of temperatures from 10 °C to 60 °C. Additionally, it includes a snagless design to prevent damage during installation. Featuring gold-plated connectors and a standard T568B wiring scheme, this patch cable is a reliable choice for anyone looking to build a robust and efficient network.

Specification Summary

Product Description

Startech patch cable - 25 cm - blue

Type

Patch cable - CAT 5/5e/6 - IEEE 802.3bt

Technology

Unshielded twisted pair (UTP)

Wiring Scheme

T568B

Wires per Cable

8 wires

Features

Halogen-free, snagless, straight, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 100W PoE++ support

Cable Length

25 cm

Diameter

3.6 mm

Connector

RJ-45 - male

Connector (Second End)

RJ-45 - male

Colour

Blue

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030921565

General

Network Cable Type

Patch cable - CAT 5/5e/6 - IEEE 802.3bt

Technology

Unshielded twisted pair (UTP)

Wiring Scheme

T568B

Jacket Material

Low Smoke Zero Halogen (LSZH)

American Wire Gauge (AWG)

Wires per Cable

8 wires

Pairs per Cable

4 pairs

Plated Connector

Gold

Features

Halogen-free, snagless, straight, flame retardant, strain relief, minimised Near-End Crosstalk (NEXT), reduced Return Loss (RL), pure bare copper conductors, up to 10 Gbps, 100W PoE++ support

Cable Length

25 cm

Diameter

3.6 mm

Colour

Blue

Connectivity

Connector

RJ-45 - male

Connector (Second End)

RJ-45 - male
