Acer S1386WH - DLP projector - short-throw - 3D

Images Manuals

Images for illustrative purposes

Acer S1386WH

View all ACER DLP Projectors - Visit the ACER Store (MR.JQU11.002) - (ECE5076926)

S1386WH - DLP projector - 3D - 3600 ANSI lumens - WXGA (1280 x 800) - 16:10 - 720p - short-throw fixed lens

The Classroom Projector Family
Short-throw Projection
Damage Prevention
Keystone Correction
LAN Network Projection

FREE Delivery on orders over €250

**Note: All Warranties/Dead On Arrival issues for this item are handled by the manufacturer

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€629.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Acer's Education Series projectors portray clear, large images from either a distance, or when positioned conveniently close to the projection screen. This makes them ideal for use in education facilities or any smaller space. Their high resolution makes for clear and detailed big screen images, while color enhancement features deliver vivid hues.

Specification Summary

Product Description

Acer S1386WH - DLP projector - short-throw - 3D

Device Type

DLP projector - 720p

3D Capable

Yes (3D glasses sold separately)

Microdisplay

DarkChip 3

Brightness

3600 ANSI lumens

Contrast Ratio

20000:1 (dynamic)

Resolution

WXGA (1280 x 800)

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Lens

Short-throw fixed lens

Bulb type

220 Watt

Bulb life cycle

Up to 5000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode ¦ Up to 10000 hour(s) - extreme economic mode

Speakers

Speaker(s) - integrated

Dimensions (WxDxH)

31.3 cm x 25.525 cm x 1.137 cm

Weight

3.1 kg

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

4713883722728

General

Device Type

DLP projector - 720p

3D Capable

Yes (3D glasses sold separately)

Projector

Microdisplay

DarkChip 3

Brightness

3600 ANSI lumens

Contrast Ratio

20000:1 (dynamic)

Image Size

91.44 cm - 762 cm

Projection Distance

0.4 m - 3.4 m

Throw Ratio

0.52:1

Digital Zoom Factor

Resolution

WXGA - WXGA (1280 x 800) (native) / 1920 x 1200 (resized)

Native Aspect Ratio

16:10

Colour Support

1.07 billion colours

Max Sync Rate (V x H)

120 Hz x 100 kHz

Bulb type

220 Watt

Bulb life cycle

Up to 5000 hour(s) - normal mode ¦ Up to 6000 hour(s) - economic mode ¦ Up to 10000 hour(s) - extreme economic mode

Features

16:9 aspect ratio support, 4:3 aspect ratio support, DynamicBlack technology, Acer LumiSense, Acer Bluelight Shield, ColorBoost 3D Technology, Acer ColorSafe II Technology, ExtremECO

Lens

Type

Short-throw fixed lens

Focus Type

Manual

Lens Aperture

F/2.8

Keystone Correction Direction

Vertical

Vertical Keystone Correction

-40 / +40

Video Input

Video Interfaces

VGA, HDMI, composite video, component video

Speakers

Type

Integrated

Sound Output Mode

Stereo

Output Power / Channel

16 Watt

Speakers

1 x mixed channel

Expansion / Connectivity

Interfaces

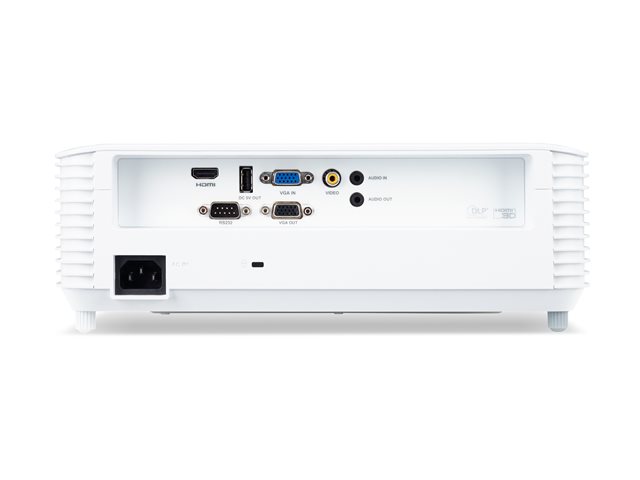

1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x USB (power only) - 4 pin USB Type A ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232

Miscellaneous

Included Accessories

Wireless remote control

Cables Included

1 x VGA cable

Security Features

Security lock slot (cable lock sold separately)

Security Slot Type

Kensington security slot

Power

Power Source

Dimensions & Weight

Width

31.3 cm

Depth

25.525 cm

Height

1.137 cm

Weight

3.1 kg

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Sound Emission

32 dBA

Sound Emission (Economic Mode)

24 dBA
