Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

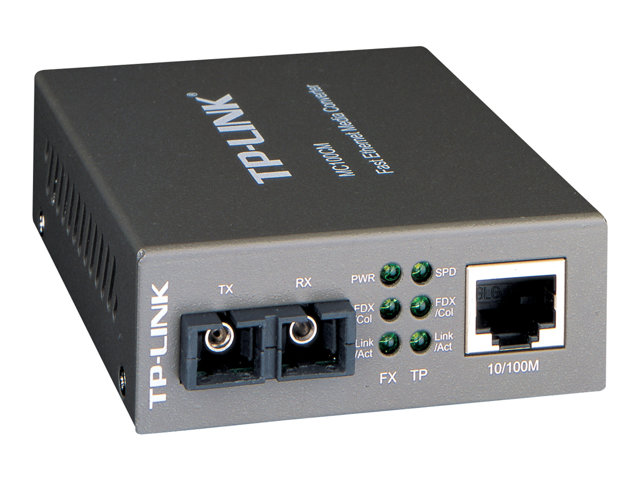

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK's 19''system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.


Specification Summary

Product Description
TP-Link MC100CM - fibre media converter - 10Mb LAN, 100Mb LAN
Device Type
Fibre media converter - RJ-45 / SC multi-mode
Form Factor
External
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Data Transfer Rate
100 Mbps
Optical Wave Length
1310 nm
Data Link Protocol
10Mb LAN, 100Mb LAN
Max Transfer Distance
2 km
Dimensions (WxDxH)
9.5 cm x 7.3 cm x 2.7 cm

Specifications

EAN / GTIN:
1210002619332
General
Device Type
Fibre media converter
Form Factor
External
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-FX, 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Optical Wave Length
1310 nm
Max Transfer Distance
2 km
Status Indicators
Collision status, port duplex mode, power, link/activity
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
Interfaces
1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode
Miscellaneous
Compliant Standards
FCC
Power
Power Device
External power adapter
Dimensions & Weight
Width
9.5 cm
Depth
7.3 cm
Height
2.7 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%
