Range/Series Overview

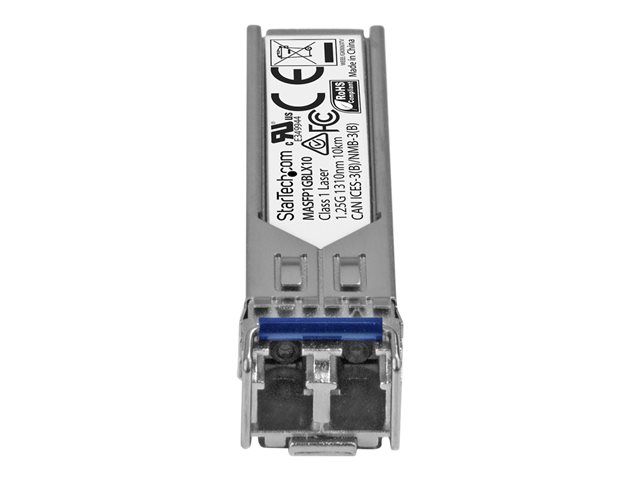

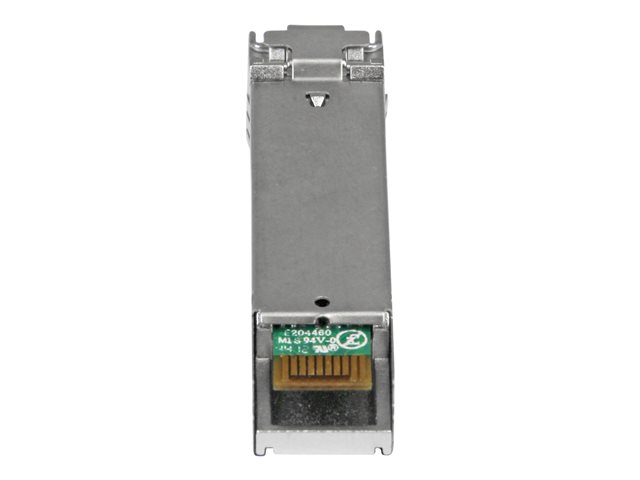

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Features Summary
- Reliable connectivity
This SFP module provides stable wired connections, suitable for Gigabit Ethernet applications ensuring consistent network performance. - Digital monitoring capabilities
Features such as Digital Optical Monitoring and Digital Diagnostics Monitoring allow users to keep track of the module's status and optimize performance. - Wide operating temperature range
Designed to function in environments varying from 0°C to 70°C, this module is versatile and adaptable to multiple operational conditions. - Long-distance data transmission
With a maximum transfer distance of 10 km, this module enables effective communication across greater distances within a network. - Compliant with key standards
Meets various regulatory standards, ensuring safety, compatibility, and reliability in networking solutions.
Specification Summary
Product Description
Startech Cisco Meraki MA-SFP-1GB-LX10 Compatible SFP Module, 1000BASE-LX, 1GbE SMF Optic Transceiver, 1GE Gigabit Ethernet LC Connector, 10km, 1310nm Cisco Meraki MS225, MX400, MS250 - Lifetime Warranty (MASFP1GBLX10) - SFP (mini-GBIC) transceiver module - 1GbE
Device Type
SFP (mini-GBIC) transceiver module - LC single-mode
Form Factor
Plug-in module
Data Transfer Rate
1.25 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
OEM Manufacturer Equivalent Part Number
Juniper SFP-1GE-LX
Dimensions (WxDxH)
1.37 cm x 5.66 cm x 1.25 cm
Manufacturer Warranty
Limited lifetime warranty
