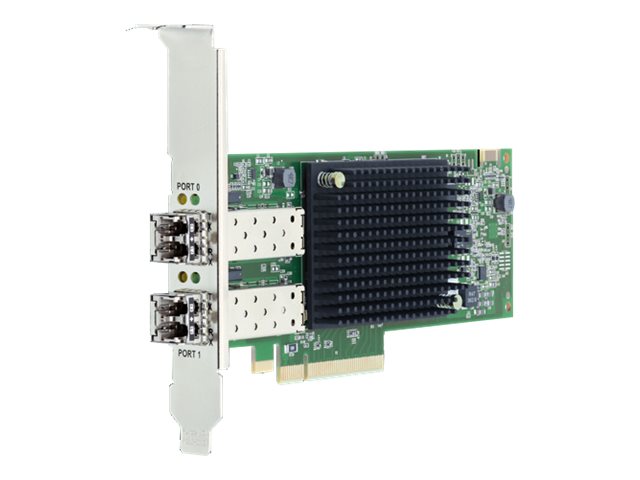

Emulex LPE35002-M2

View all BROADCOM PCI / M.2 Cards and Adapters - Visit the BROADCOM Store (LPE35002-M2) - (ECE4969617)

Emulex LPE35002-M2 - Host bus adapter - PCIe 4.0 x8 low profile - 32Gb Fibre Channel Gen 7 (Short Wave) x 2

Robust connectivity
Wide compatibility
Optimized for performance
Designed for durability
Efficient operation

FREE Delivery on orders over €250

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€4756.30~~

€2966.03 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Emulex LPe35000 Gen 7 Fiber Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed for demanding mission-critical workloads and emerging applications.

Applications continue to grow in size and scale and, to support them, enterprises are increasingly turning to new server technologies that contain hundreds of processor cores as well as high-performance storage solutions including low-latency NVMe all-flash arrays (AFAs). NVMe can significantly increase the performance of storage area networks (SANs), making the selection of high-speed networking technology the critical element for achieving maximum system-wide performance.

Fiber Channel is purpose-built for storage networks, meeting the requirements for high availability, scalability, predictable performance and low latency. Compared to the previous generation, Emulex Gen 7 FC HBAs offer up to 2x higher bandwidth, 3x better latency, enhanced security, and operational efficiency for 32GFC and 64GFC SANs.

Features Summary

Robust connectivity
Equipped with two 32 Gb Fiber Channel Gen 7 (Short Wave) ports, this host bus adapter ensures high-speed, reliable connectivity for seamless data transfer and communication.
Wide compatibility
Supporting a broad range of Fiber Channel protocols including FC-DA, FC-FS, FC-GS, FC-LS, FC-NVMe, and more, the LPE35002-M2 is designed for compatibility with a variety of network infrastructures.
Optimized for performance
With a data transfer rate of 28.05 Gbps and built on the PCI Express 4.0 x8 interface, this adapter maximizes bandwidth and throughput, enhancing overall system performance.
Designed for durability
Operating within a wide temperature range and certified by multiple standards including BSMI, CSA, FCC, and RoHS, the LPE35002-M2 is built for reliability in diverse environments.
Efficient operation
The low-profile form factor and compliance with environmental parameters ensure this adapter operates efficiently, maintaining performance without compromising on space or energy consumption.

Specification Summary

Product Description

Emulex LPE35002-M2 - host bus adapter - PCIe 4.0 x8 - 32Gb Fibre Channel Gen 7 (Short Wave) x 2

Device Type

Host bus adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 4.0 x8

PCI Specification Revision

PCIe 4.0

Ports

32Gb Fibre Channel Gen 7 (Short Wave) x 2

Dimensions (WxDxH)

16.764 cm x 6.891 cm

Cabling Type

Fibre Channel

Data Link Protocol

32Gb Fibre Channel Gen 7 (SW)

Data Transfer Rate

28.05 Gbps

Specifications

EAN / GTIN:

706947011498

General

Device Type

Host bus adapter

Form Factor

Plug-in card - low profile

Interface (Bus) Type

PCI Express 4.0 x8

PCI Specification Revision

PCIe 4.0

Networking

Ports

32Gb Fibre Channel Gen 7 (Short Wave) x 2

Connectivity Technology

Wired

Cabling Type

Fibre Channel

Data Link Protocol

32Gb Fibre Channel Gen 7 (Short Wave)

Fibre Channel

FC-PI-4, FC-DA, FC-DA-2, FC-FS, FC-FS-3, FC-FS-4, FC-FS-5, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-LS-2, FC-LS-3, FC-MI, FC-NVMe, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-PI-7, FC-Tape, FCP-2, FCP-4, FCP-3, SBC-3, SPC-3, SPC-4, SSC-2, SSC-3, SSC-4

Data Transfer Rate

28.05 Gbps

Expansion / Connectivity

Interfaces

2 x 32Gb Fibre Channel Gen 7 (Short Wave) - LC

Miscellaneous

Included Accessories

Low-profile bracket, full-height bracket

Compliant Standards

FCC Class A certified, ICES Class A, UL, CSA, RoHS, RCM, VCCI Class A, KCC Class A, China RoHS, BSMI Class A

Dimensions & Weight

Depth
