Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Samsung's OHN Series outdoor displays are designed to endure harsh outdoor conditions and deliver your message with exceptional clarity around the clock. Perfect for bus stops and roadside billboards with high brightness and a built-in dimming sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player.


Features Summary

  • Optimized outdoor visibility to deliver your message
    At 3,300 nits, this high brightness display delivers excellent legibility and visibility, even in bright sunlight. With a built-in dimming sensor, the display automatically adjusts brightness based on the ambient light to optimize visibility for day or night, while maintaining efficient operating costs for your business.
  • IP56 certification to withstand the elements
    The OHN Series is true all-weather, IP56-certified1 outdoor signage, designed specifically to withstand the elements and fully perform in heat, cold, rain, snow and dust.
  • 24/7 commercial reliability
    Built to handle 24/7 continuous operation, you'll be able to deliver impactful messaging to your audience around the clock.
  • Protected from vandalism
    Advanced protection against external impacts such as vandalism is provided through the tempered Magic Glass featuring IK10-certification. In addition, a gap between the Magic Glass and the LCD panel prevents LCD breakage when the protection glass is broken.
  • Built to handle extreme temperatures

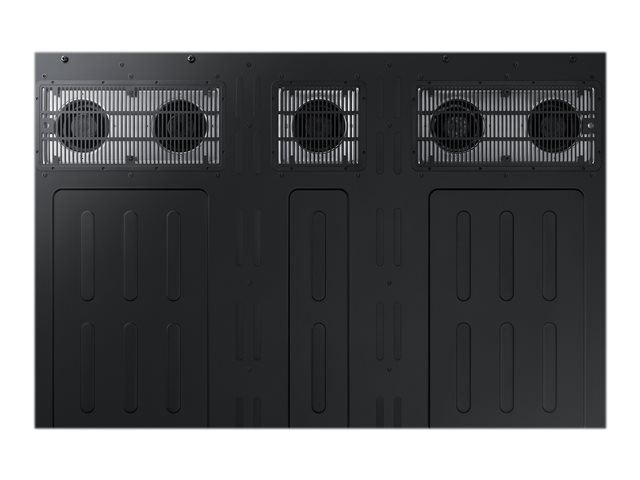

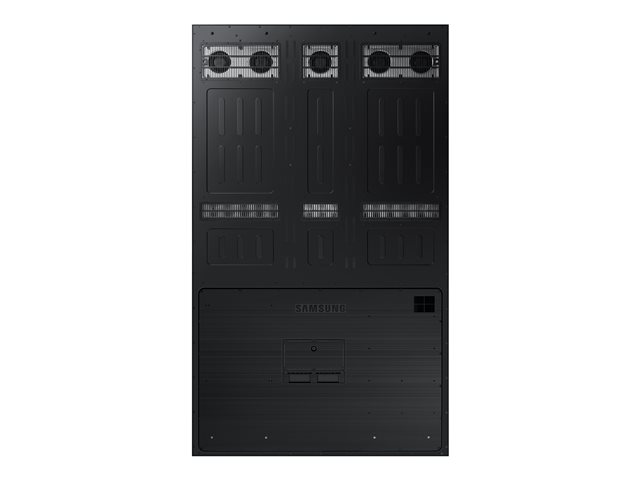

    An innovative patent-pending self-cooling system with a heat exchanger equips this display to handle a wide operating temperature range, from -22 °F to 122 °F. And no supplemental heating or air conditioning unit is required, so you can save the expense.
  • Embedded media player
    The embedded MagicInfo Player 6.0, backed by the powerful Tizen operating system, allows for easy content management and helps to ensure seamless content transitions and playback. All without the need for an external signage player or PC.

Specification Summary

Product Description

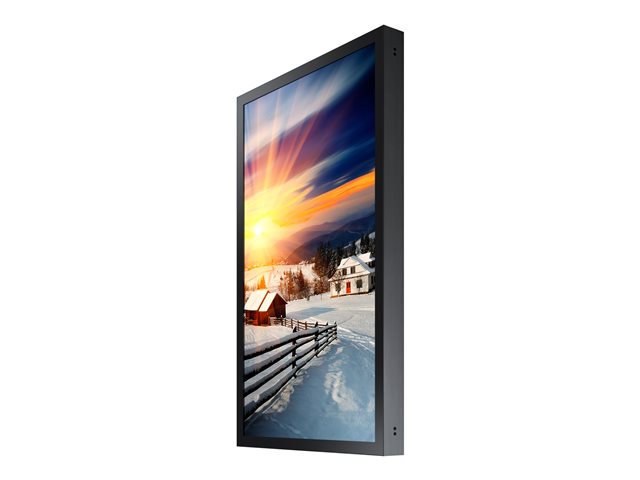

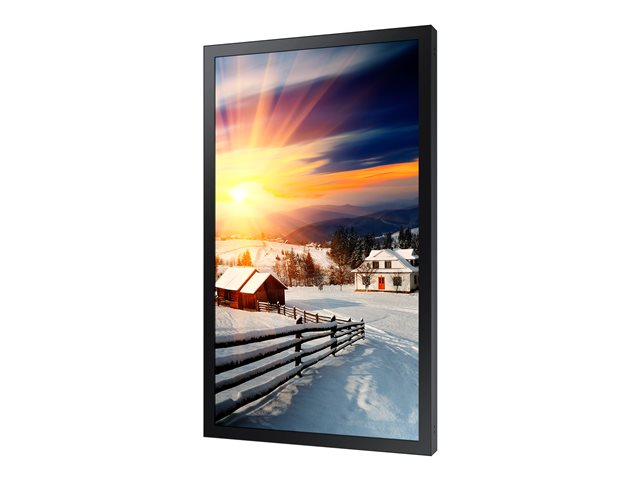

Samsung OH85N OHN Series - 85" Class (84.5" viewable) LED-backlit LCD display - 4K - outdoor - for digital signage
Product Type
LED-backlit LCD flat panel display - outdoor
Diagonal Class
85"
Diagonal Size
84.5"
Commercial Use
Yes - digital signage
Sun Exposure
Full sun
Colour
Black
Platform
Tizen OS
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
Video Interface
Composite, HDMI
HDMI Ports Qty
2 ports
PC Interface
DisplayPort
Technology
S-PVA
LCD Backlight Technology
Edge-lit LED
Image Aspect Ratio
16:9
TV Tuner
No tuner
Commercial Features
MagicInfo S6 Player, MagicInfo Express 2, MagicInfo Premium i compatible
Storage Drive Capacity
8 GB
Storage Capacity
8 GB
USB
Yes
Included Accessories
Remote control, batteries
Energy Class
Class D
Power Consumption (On mode)
600 W
Power Consumption Stand by
0.5 Watt
Energy Consumption per Year
876 kWh
Dimensions (WxDxH) - without stand
200.4 cm x 12 cm
Weight
137 kg

Specifications

EAN / GTIN:
8801643520830
General
Product Type
LED-backlit LCD flat panel display
Energy Class
Class D
Power Consumption (On mode)
600 W
Energy Consumption per Year
876 kWh
Diagonal Class
85"
Diagonal Size
84.5"
Commercial Use
Yes - digital signage
Series
OHN Series
Outdoor
Yes
Sun Exposure
Full sun
Platform
Tizen OS
Operating System
Tizen OS 4.0
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Temperature sensor, dimming sensor
Video Interface
Composite, HDMI
HDMI Ports Qty
2 ports
PC Interface
DisplayPort
Protection
Weatherproof
Dimensions
Without stand
Width
200.4 cm
Depth
12 cm
Weight
137 kg
Enclosure Colour
Black
Display
LCD Display Technology
S-PVA
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
LCD Backlight Technology
Edge-lit LED
Coating
Anti-reflection
Image Contrast Ratio
3000:1
Brightness
3300 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Response Time
8 ms
Commercial Features
MagicInfo S6 Player, MagicInfo Express 2, MagicInfo Premium i compatible
Operation Hours / Days
24 / 7
Features
Pivot, Multiple Display Control (MDC), SSSP 6.0
Stands & Mounts
Flat Panel Mount Interface
Yes
Media Player
Supported Video Formats
MPEG-1, MPEG-2, MPEG-4, AVC, H.264, H.263, VC-1, HEVC, MPEG, VP9, VP8, AVS+
Supported Audio Formats
AC3
Supported Pictures Formats
PNG, JPEG
USB Port
Yes
USB Ports Qty
1
Configuration
ARM Cortex-A72 Quad-Core ( 1.7 GHz ) - 2.5 GB LPDDR4 - 8 GB
Storage Drive Capacity
8 GB
Remote Control
Type
Remote control
Connections
Connector Type

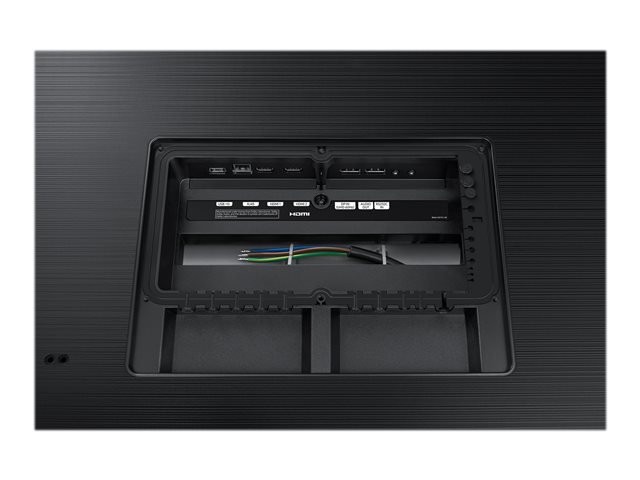

DisplayPort input ¦ 2 x HDMI input ¦ USB 2.0 ¦ Composite video input ¦ RS-232C input ¦ RS-232C output ¦ Remote control
Miscellaneous
Included Accessories
Batteries
Compliant Standards
CB, EMC, EN 60950-1, IEC60950-1, HDCP 2.2, IP56, EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007
Power
Power Device
Power supply
Power Consumption Stand by
0.5 Watt
Power Consumption (Off Mode)
0 Watt
Dimensions & Weight (Shipping)
Width (Shipping)
217.5 cm
Depth (Shipping)
49.5 cm
Weight (Shipping)
185 kg
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 80% (non-condensing)
