Product Type
LED display unit
Commercial Use
Yes - digital signage
Picture Enhancements
Colour temperature adjustment
Frame Rate & Enhancement Technology
60 Hz Video Rate, 7680 Hz Refresh Rate
Image Contrast Ratio
7000:1
Viewing Angle
160 degrees
Viewing Angle (Vertical)
107°
Commercial Features
Flat installation supported
Features
16-bit colour processing, 256 Dimming level, 281 trillion colours, 24-bit video processing
Pixel Configuration
1 red, 1 green, 1 blue
Pixel Density
8605 pixels/m²
LED Type
SMD (XD Cu diode)
LED Lifetime
100000 hours
Maintenance

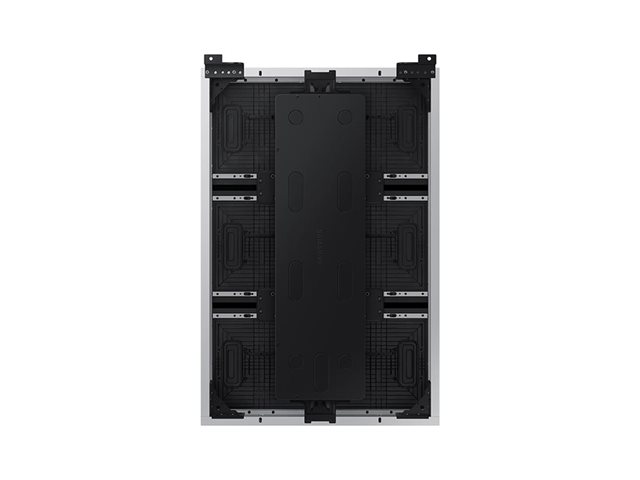

Rear and front
Modules Configuration (Per Cabinet)
2x3
Cabinet Frame Material
Aluminium
Compliant Standards
IP66, UL, ULC, UL 62368-1, UL 60950-1, UL 48
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Video Wall Display Unit Power Consumption (Max)
600 W
Video Wall Display Unit Power Consumption (Typical)
200 W
Video Wall Power Consumption (Max)
840 W/m²
Video Wall Power Consumption (Typical)
280 W/m²
Dimensions & Weight (Shipping)
Width (Shipping)
120.6 cm
Height (Shipping)
86.4 cm
Weight (Shipping)
30.3 kg
Min Operating Temperature
-40 °C
Max Operating Temperature
55 °C
