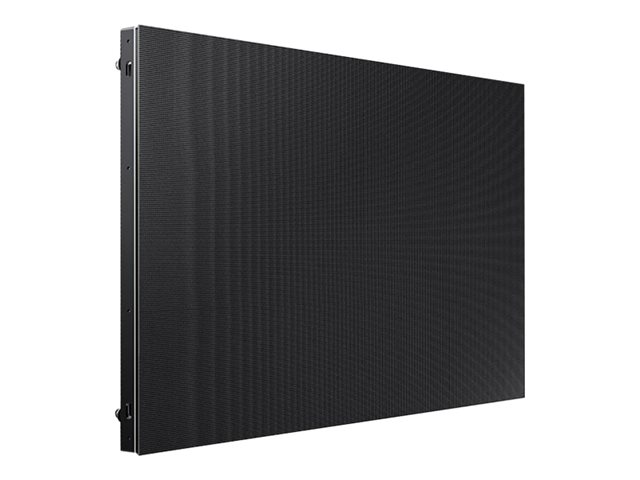

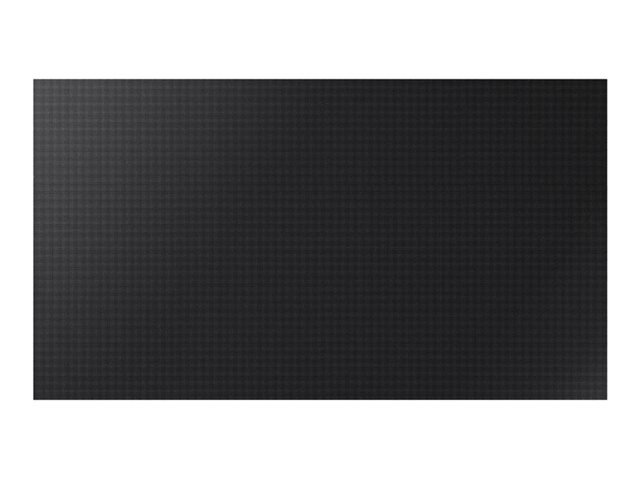

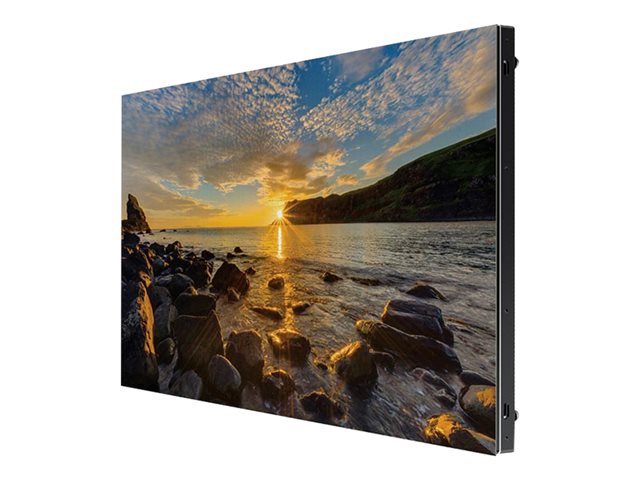

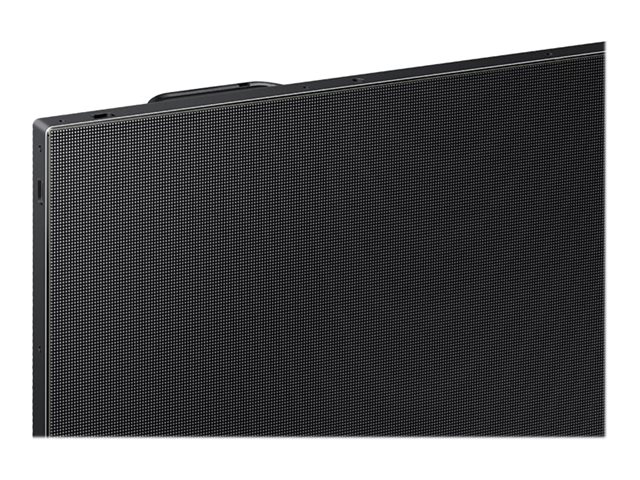

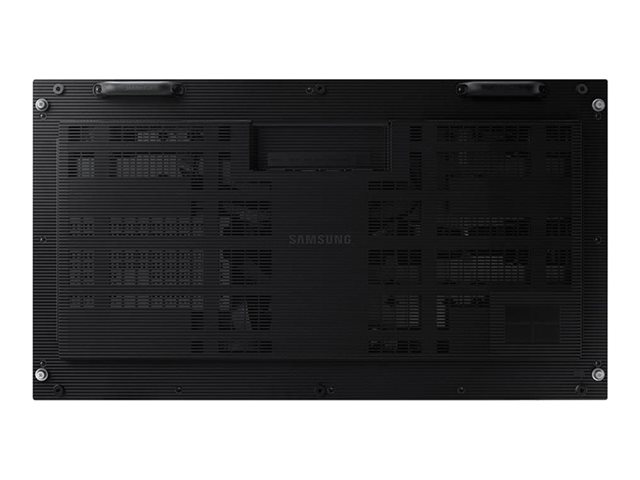

Samsung IF015R IFR Series LED display unit

Images for illustrative purposes

Samsung IF015R IFR Series LED display unit

View all SAMSUNG Digital Signage | Large Displays - Visit the SAMSUNG Store (LH015IFRCLS/EN) - (WCELH015IFRCLSEN)

IF015R IFR Series LED display unit - for digital signage

Clearly refined visuals
Pin-sharp clarity, bright or dark
HDR experience in large scale
Screen uniformity all the time

FREE Delivery on orders over €250

*** Note: There may be additional delivery charges For large monitors, we will contact you if this is the case. ***

13 Available to Ship
Order within 7Hrs 22Mins for: FREE Delivery (8 Jun or 9 Jun)

€4739.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines LED picture quality, flexible design options and efficient operation in any environment.

Features Summary

Clearly refined visuals
LED HDR turns any content into HDR-level without requiring special metadata. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum brightness levels while avoiding glare, and Color Mapping ensures an accurate color presentation.
Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is. The IFR series supports HDR10+ which optimizes brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended.
HDR experience in large scale
With Multi-link HDR technology, IFR series delivers more impactful content than ever before, providing HDR quality content up to 8K resolution. Multi-link HDR turns any content into HDR-level and is a flexible solution that can be applied to various layouts and screen sizes with less cabling.
Screen uniformity all the time
On-site PC and mobile calibration combined with multi-step factory calibration tunes the whole screen of LED displays to uniform brightness and color. Color Expert LED Mobile provides a quick and easy calibration, requiring nothing more than a mobile phone and a Wi-Fi connection.

Specification Summary

Product Description

Samsung IF015R IFR Series LED display unit - for digital signage

Product Type

LED display unit

Commercial Use

Yes - digital signage

HDR Format

HDR10+

HDR Technology

LED HDR, Multi-link HDR

Frame Rate & Enhancement Technology

7680 Hz Refresh Rate

TV Tuner

No tuner

Video Wall Display Unit

SMD - 640 x 360

Voltage

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH) - display unit

96 cm x 7.95 cm x 54 cm

Weight

12.4 kg

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

8806094221190

General

Product Type

LED display unit

Commercial Use

Yes - digital signage

Series

IFR Series

HDR Capable

Yes

HDR Format

HDR10+

HDR Technology

LED HDR, Multi-link HDR

TV Tuner

No tuner

TV Tuner Presence

Design

Flexible design

Dimensions

Display unit

Width

96 cm

Depth

7.95 cm

Height

54 cm

Weight

12.4 kg

Display

Frame Rate & Enhancement Technology

7680 Hz Refresh Rate

Colour Temperature

2800 - 10000K

Image Contrast Ratio

12000:1

Brightness

800 cd/m²

Viewing Angle

160 degrees

Viewing Angle (Vertical)

160 degrees

Features

16-bit colour processing

Video Wall Display Unit

Pixel Pitch

1.5 mm

Pixel Configuration

1 red, 1 green, 1 blue

LED Type

SMD

Resolution

640 x 360

LED Lifetime

100000 hours

Maintenance

Front

Modules Configuration (Per Cabinet)

4x3

Miscellaneous

Compliant Standards

EMC Class A, IP20, Safety 60950-1, Safety 62368-1

Power

Power Device

Power supply

Input Voltage

AC 100-240 V (50/60 Hz)

Video Wall Display Unit Power Consumption (Max)

360 W

Video Wall Display Unit Power Consumption (Typical)

117 W

Video Wall Power Consumption (Max)

694 W/m²

Video Wall Power Consumption (Typical)

226 W/m²

Features

Power Redundancy

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Width (Shipping)

111.9 cm

Depth (Shipping)

20.6 cm

Height (Shipping)

69.9 cm

Weight (Shipping)

17.5 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 80% RH
