Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

KIOXIA CM7-R Series is a read-intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe 5.0 (for U.3 host: PCIe 4.0) and NVMe 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CM7-R Series of enterprise NVMe SSDs delivers 1 DWPD (Drive Writes Per Day) of endurance and support a large storage capacities, making them ideally suited for read-intensive enterprise applications.


Features Summary

  • Robust durability
    Designed to withstand the rigors of constant operation, the KIOXIA CM7-R Series solid state drive boasts a shock acceleration operating at 1000 g and a vibration frequency range of 5-800 Hz, ensuring reliability in a variety of challenging environments.
  • Exceptional reliability
    With an MTBF (Mean Time Between Failures) of 2,500,000 hours, this internal hard drive is built for endurance. Its enterprise, read intensive class and 24x7 operation capability make it an ideal choice for critical data storage solutions.
  • Advanced data protection
    Featuring end-to-end data protection and Power Loss Protection (PLP), the KIOXIA CM7-R Series ensures your data remains safe and intact, even in unexpected power loss scenarios.
  • High-performance interface
    Equipped with PCI Express 5.0 (NVMe) interface, this solid state drive offers fast data transfer speeds, enhancing overall system performance and efficiency.
  • Innovative technology
    Leveraging 112-layer 3D BiCS FLASH technology, the KIOXIA CM7-R Series provides high-density storage solutions, making it perfect for read-intensive applications.

Specification Summary

Product Description

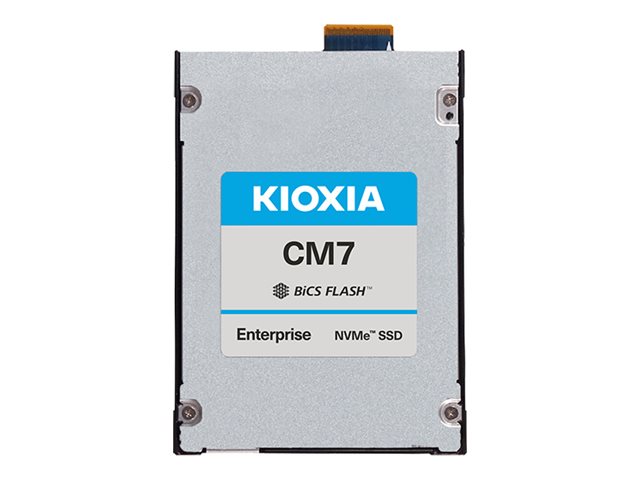

KIOXIA CM7-R Series KCM7XRJE1T92 - SSD - Enterprise, Read Intensive - 1920 GB - PCI Express 5.0 (NVMe)
Type
Solid state drive - internal
Capacity
1920 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
E3.S
Interface
PCI Express 5.0 (NVMe)
Drive Class
Enterprise, Read Intensive
Features
112-layer 3D BiCS FLASH, 24x7 continuous operation, Dual Port, Open Compute Project 2.0, Power Loss Protection (PLP), Sanitize Instant Erase (SIE), End-to-end data protection, NVMe 2.0
Dimensions (WxDxH)
76 mm x 112.75 mm x 7.5 mm
Weight
110 g
Manufacturer Warranty
5-year warranty

Specifications

EAN / GTIN:
8592978559199
General
Device Type
Solid state drive - internal
Capacity
1920 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
E3.S
Interface
PCI Express 5.0 (NVMe)
Features
112-layer 3D BiCS FLASH, 24x7 continuous operation, Dual Port, Open Compute Project 2.0, Power Loss Protection (PLP), Sanitize Instant Erase (SIE), End-to-end data protection, NVMe 2.0
Width
76 mm
Depth
112.75 mm
Height
7.5 mm
Weight
110 g
Performance
Drive Writes Per Day (DWPD)
1
Drive Class
Enterprise, Read Intensive
Internal Data Rate
14000 MBps (read) / 3500 MBps (write)
4KB Random Read
2000000 IOPS
4KB Random Write
155000 IOPS
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Expansion & Connectivity
Interfaces
1 x PCI Express 5.0 (NVMe)
Compatible Bay
E3.S
Power
Power Consumption
21 Watt (active (typical)) ¦ 5 Watt (ready)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
76 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95% RH
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 gRMS @ 5-800 Hz
