Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The CD8-V Series is a mixed-use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe 4.0 interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 310K IOPS (random write).


Features Summary

  • Enhanced durability
    Designed for 24x7 operation and equipped with end-to-end data protection, the KIOXIA CD8-V Series SSD ensures reliability and durability for intensive data center environments. Its robust 112-layer 3D BiCS FLASH technology further enhances its endurance, making it a resilient storage solution.
  • High-speed performance
    With an impressive internal data rate of up to 7200 MBps for reading and 3500 MBps for writing, alongside maximum 4KB random read of 1,250,000 IOPS and write of 310,000 IOPS, this SSD delivers exceptional speed and efficiency for data processing and transfer.
  • Efficient power management
    The KIOXIA CD8-V Series SSD features an active power consumption of just 14 W and drops to 5 W in idle mode, offering an energy-efficient solution without compromising on performance. Its power loss data protection ensures data integrity during unexpected power outages.

Specification Summary

Product Description

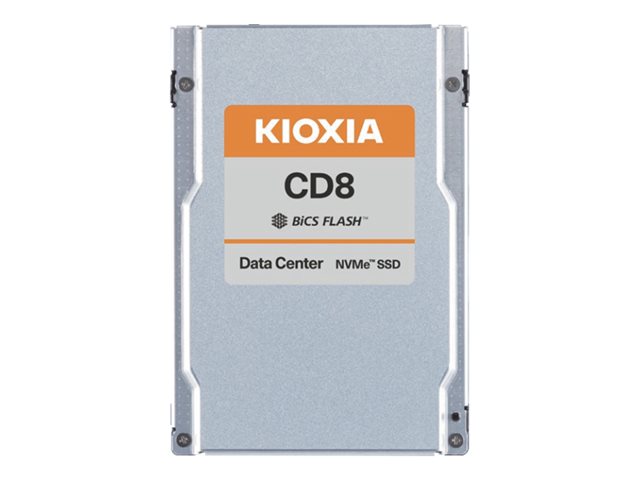

KIOXIA CD8-V Series KCD8XVUG1T60 - SSD - Mixed Use - 1600 GB - data centre SSD - PCIe 4.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
1600 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
2.5"
Interface
PCIe 4.0 x4 (NVMe)
Drive Class
Mixed Use
Features
112-layer 3D BiCS FLASH, Sanitize Instant Erase (SIE), power loss data protection, End-to-end data protection
Dimensions (WxDxH)
69.85 mm x 100.45 mm x 15 mm
Weight
130 g
Manufacturer Warranty
5-year warranty

Specifications

EAN / GTIN:
8592978525804
General
Device Type
Solid state drive - internal
Capacity
1600 GB
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
2.5"
Interface
PCIe 4.0 x4 (NVMe)
Features
112-layer 3D BiCS FLASH, Sanitize Instant Erase (SIE), power loss data protection, End-to-end data protection
Width
69.85 mm
Depth
100.45 mm
Height
15 mm
Weight
130 g
Performance
Drive Writes Per Day (DWPD)
3
Drive Class
Mixed Use
Internal Data Rate
7200 MBps (read) / 3500 MBps (write)
Maximum 4KB Random Write
310000 IOPS
Maximum 4KB Random Read
1250000 IOPS
Reliability
MTBF
2500000 hours
24x7 Operation
Yes
Expansion & Connectivity
Interfaces
1 x PCI Express 4.0 (NVMe1.4)
Compatible Bay
2.5"
Power
Power Consumption
14 Watt (active (typical)) ¦ 5 Watt (idle)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
75 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95% RH
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 gRMS @ 5-800 Hz
