Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

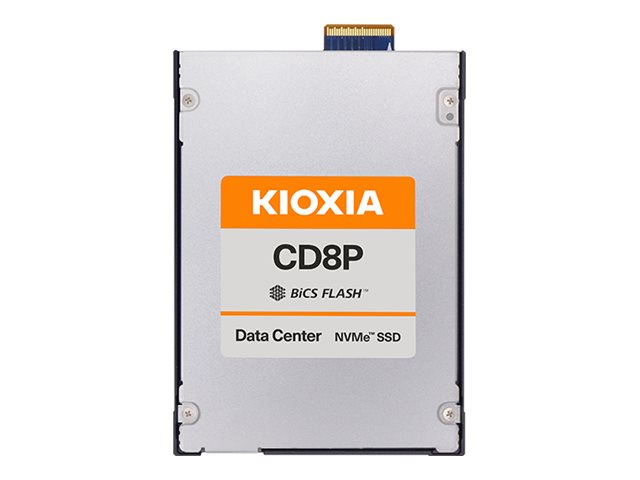

The KIOXIA CD8P-V Series solid state drive is engineered to meet the demands of data center and mixed-use environments. Offering a substantial 3,200 GB of storage capacity and powered by PCI Express 5.0 x4 (NVMe) interface, it delivers high-speed data transfer rates of up to 12,000 MBps read and 5,500 MBps write. This drive is designed for 24x7 operation, supporting a high endurance rating of 3 DWPD, which makes it reliable for continuous use. Features such as end-to-end data protection, Power Loss Protection (PLP), and Sanitize Instant Erase (SIE) ensure data integrity and security. With an MTBF of 2,500,000 hours and built to withstand operational shock and vibration, the KIOXIA CD8P-V Series is a resilient storage solution that offers both performance and durability. Its support for Open Compute Project 2.0 standards further ensures compatibility and interoperability in diverse IT environments.


Specification Summary

Product Description
KIOXIA CD8P-V Series KCD8XPJE3T20 - SSD - Data Centre, Mixed Use - 3200 GB - PCI Express 5.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
3200 GB
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
E3.S
Interface
PCI Express 5.0 x4 (NVMe)
Drive Class
Data Centre, Mixed Use
Features
24x7 continuous operation, single port, Power Loss Protection (PLP), End-to-end data protection, Sanitize Instant Erase (SIE), Open Compute Project 2.0
Dimensions (WxDxH)
76 mm x 112.75 mm x 7.5 mm
Weight
110 g
Manufacturer Warranty
5-year warranty

Specifications

General
Device Type
Solid state drive - internal
Capacity
3200 GB
NAND Flash Memory Type
Triple-level cell (TLC)
Form Factor
E3.S
Interface
PCI Express 5.0 x4 (NVMe)
Features
24x7 continuous operation, single port, Power Loss Protection (PLP), End-to-end data protection, Sanitize Instant Erase (SIE), Open Compute Project 2.0
Width
76 mm
Depth
112.75 mm
Height
7.5 mm
Weight
110 g
Performance
Drive Writes Per Day (DWPD)
3
Drive Class
Data Centre, Mixed Use
Internal Data Rate
12000 MBps (read) / 5500 MBps (write)
4KB Random Read
1900000 IOPS
4KB Random Write
400000 IOPS
Reliability
MTBF
2,500,000 hours
24x7 Operation
Yes
Expansion & Connectivity
Interfaces
1 x PCI Express 5.0 x4 (NVMe)
Compatible Bay
E3.S
Power
Power Consumption
19 Watt (active) ¦ 5 Watt (idle)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
76 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Operating
5 - 95% RH
Shock Tolerance (operating)
1000 g @ 0.5 ms
Vibration Tolerance (operating)
2.17 gRMS @ 5-800 Hz
