Arista 7280CR2K-30

Name: Arista 7280CR2K-30
Brand: HPE
SKU: ECE4650985
Price: 113853.36 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (JQ208A) - (ECE4650985)

Model: Arista

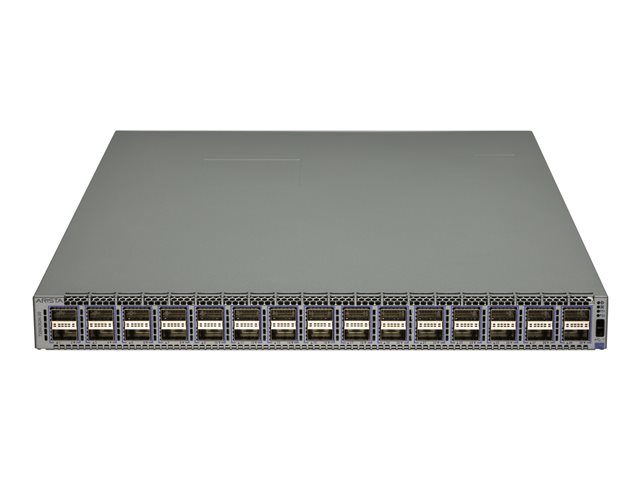

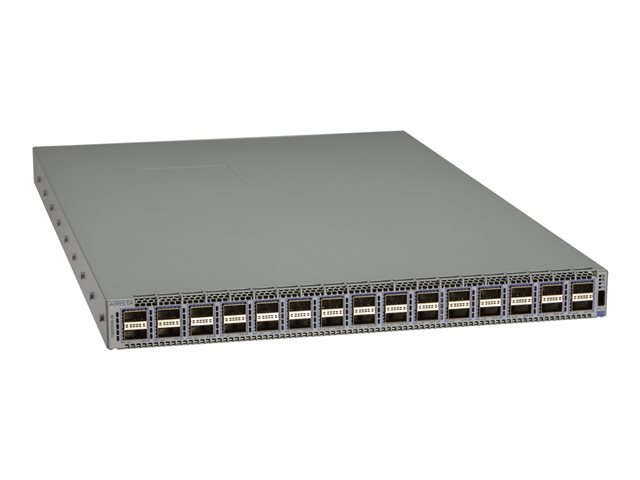

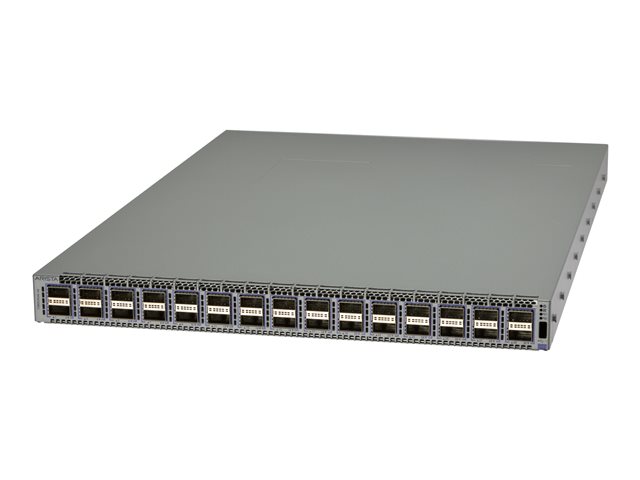

Arista 7280CR2K-30 - Switch - L3 - Managed - 30 x 100 Gigabit QSFP28 - front to back airflow - rack-mountable

Scaling Data Center Performance
Designed for the Data Center
Arista Extensible Operating System (EOS)

FREE Delivery on orders over €250

SPO - THIS ITEM CANNOT BE RETURNED AS UNWANTED AS IT IS A SPECIAL ORDER DIGITAL DOWNLOAD PRODUCT. **

Electronic Delivery By Email
Order within 5Hrs 27Mins for: FREE Delivery (8 Jun or 9 Jun)

€113853.36 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Arista 7280R Data Center Switch Router Series are designed for storage, content delivery, leaf and spine networks and data center interconnects. This solution's fixed-configuration switches combine dynamic and deep buffering for lossless forwarding with high density, internet scale table sizes and comprehensive Layer 2 and Layer 3 features. Advanced Extensible Operating System (EOS) features for network monitoring, precision timing, VXLAN network virtualization and rich automation are combined with extensive hardware resources. A choice of density and interface types allows this router series to address the myriad different applications and traffic patterns found in modern data centers.

Features Summary

Scaling Data Center Performance
Arista 7280R Data Center Switch Router Series delivers non-blocking switching capacity that enables dramatically faster and simpler network designs for data centers and lowers both capital and operational expenses.
Series of fixed and modular systems with a single consistent Arista Extensible Operating System (EOS) allows for flexible selections at all tiers of the network and deployment scenarios including Layer 2 MLAG, Layer 3 ECMP, VXLAN overlay, and Internet peering.
The Arista FlexRoute engine provides the flexible scalability to support deployment as a routing platform with Internet scale routing.
Designed for the Data Center
Arista 7280R Data Center Switch Router Series delivers a suite of advanced traffic control and monitoring features to improve the agility of modern high-performance environments, with solutions for automation and virtualization.
Automates complex IT workflows and simplifies network operations while reducing or even nearly eliminating downtime.
Addressing the needs of one of the largest public cloud environments as well as applying those lessons learned in the turnkey Arista CloudVision automation offering.
Arista Extensible Operating System (EOS)
The Arista 7280R Data Center Switch Router Series features Arista EOS, which is a modular switch operating system with a unique state sharing architecture that cleanly separates switch state from protocol processing and application logic.
Built on top of a standard Linux kernel, all EOS processes run in their own protected memory space and exchange state through an in-memory database.
Arista EOS automates complex IT workflows and simplifies network operations while reducing downtime. It's rich automation capabilities not only reducing the human error element in network operations but also enables IT operators to make the network work the way they want.

Specification Summary

Product Description

Arista 7280CR2K-30 - switch - 30 ports - Managed - rack-mountable

Device Type

Switch - 30 ports - L3 - Managed

Enclosure Type

Front to back airflow rack-mountable 1U

Subtype

100 Gigabit Ethernet

Ports

30 x 100 Gigabit QSFP28

Performance

Throughput: 6 Tbps ¦ Packets per second: 2.51 Bpps ¦ Latency: 3.8 µs

Capacity

IPv4 routes: 256000 ¦ Equal-Cost Multipathing (ECMP) ways: 128 ¦ LAG groups: 1152 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 128 ¦ Priority queues per port: 8 ¦ Longest prefix match (LPM) entries (IPv4): 1300000 ¦ Longest prefix match (LPM) entries (IPv6): 1300000

MAC Address Table Size

768K entries

Jumbo Frame Support

9216 bytes

Routing Protocol

OSPF, IS-IS, RIP-2, BGP, IGMPv2, VRRP, PIM-SM, static IP routing, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, Bidirectional PIM, MSDP, ECMP, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP (VARP)

Remote Management Protocol

SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI

Features

ARP support, trunking, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Equal-Cost Multipath (ECMP), Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LACP support, DHCP relay, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Zero Touch Auto Provisioning, Virtual Routing and Forwarding (VRF), Strict Priority Queuing (SPQ), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, MAC and IP-based ACLs support, Storm Control, Virtual Output Queuing (VOQ), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), VLAN Trunking Protocol (VTP), 12GB packet buffer, rate limit, IF MIB, Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), Multi-Chassis Link Aggregation (MLAG), CloudVision, Zero-touch provisioning (ZTP), hot swappable 4+1 fans, Virtual ARP, AlgoMatch, AlgoMatch-2, Accelerated sFlow

Compliant Standards

IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz

Power

AC 230V (50/60 Hz)

Power Redundancy

Yes

Dimensions (WxDxH)

48.3 cm x 67 cm x 4.4 cm

Weight

15.5 kg

Manufacturer Warranty

1-year warranty

Specifications

General

Device Type

Switch - 30 ports - L3 - Managed

Enclosure Type

Front to back airflow rack-mountable 1U

Subtype

100 Gigabit Ethernet

Ports

30 x 100 Gigabit QSFP28

Performance

Throughput: 6 Tbps ¦ Packets per second: 2.51 Bpps ¦ Latency: 3.8 µs

Capacity

MAC Address Table Size

768K entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Remote Management Protocol

SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI

Authentication Method

RADIUS, TACACS+

Features

Compliant Standards

RAM

32 GB

Flash Memory

4 GB

Expansion / Connectivity

Interfaces

1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 30 x 100Gbit LAN QSFP28 ¦ 2 x USB

Power

Power Device

Internal power supply - hot-plug

Installed Qty

Max Supported Qty

Power Redundancy

Yes

Power Redundancy Scheme

1+1

Power Provided

1600 Watt

Voltage Required

AC 230V (50/60 Hz)

Miscellaneous

Compliant Standards

VCCI, C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, IEC 60950-1, EN 60950-1, WEEE, NRTL, Directive 2006/95/EC, EAC, MSIP, RoHS 2011/65/EU, EMC 2004/108/EC, WEEE 2012/19/EU, EN 300 386, UL/CSA60950-1, IEEE 1588

Dimensions & Weight

Width

48.3 cm

Depth

67 cm

Height

4.4 cm

Weight

15.5 kg

Manufacturer Warranty

Service & Support

Limited warranty - parts and labour - 1 year - response time: 10 business days
