HPE Networking Instant On 1960 24G 2XGT 2SFP+ Swit

Images Manuals

HPE Networking Instant On 1960 24G 2XGT 2SFP+ Switch

Images for illustrative purposes

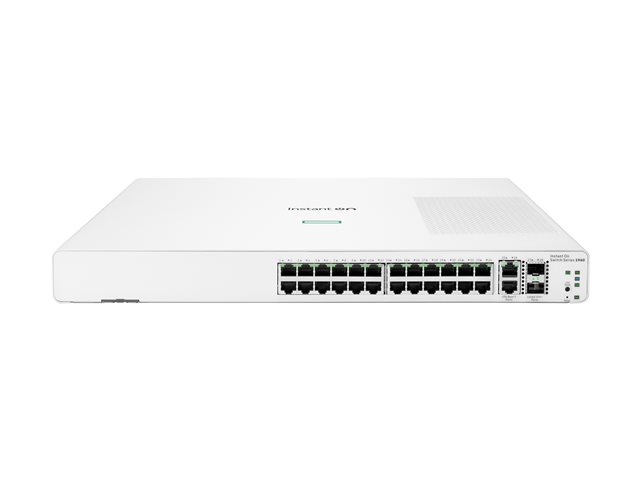

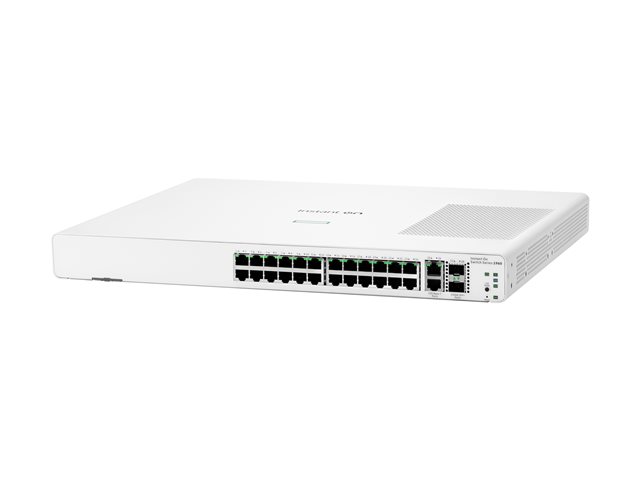

HPE Networking Instant On 1960 24G 2XGT 2SFP+ Switch

Name: HPE Networking Instant On 1960 24G 2XGT 2SFP+ Switch
Brand: HPE
SKU: MMECD08238
Price: 574.52 EUR
Availability: InStock

View all HPE Network Switches - Visit the HPE Store (JL806A) - (MMECD08238)

Model: HPE Networking

Networking Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable

High-level Gigabit with 10GbE Networking for Advanced Small Businesses
Simplify Network Deployment and Management for Small Organizations
Ease of Use with Cloud-Managed Stacking
Robust Security to Protect Your Network

FREE Delivery on orders over €250

4 Available to Ship
Order within 16Hrs 15Mins for: FREE Delivery (10 Aug or 11 Aug)

RRP ~~€769.45~~

€574.52 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

Specification Summary

Product Description

HPE Networking Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable

Device Type

Switch - 24 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T

Performance

Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs

Capacity

MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS

Features

Fanless, EEE, ARP support, auto-uplink (auto MDI/MDI-X), DHCP support, TPM, VLAN support, auto voice VLAN, LLDP-MED, LACP, STP support, BPDU Filter, flow control, IPv6 support, auto-negotiation, ACL support, CoS, port mirroring, half duplex mode, full duplex mode

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p

Power

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

44.25 cm x 35.05 cm x 4.395 cm

Weight

3.9 kg

Specifications

EAN / GTIN:

0190017520391

General

Device Type

Switch - 24 ports - Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T

Performance

Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs

Capacity

MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32

MAC Address Table Size

16000 entries

Jumbo Frame Support

9216 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS

Authentication Method

RADIUS

Features

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p

Processor

1 x ARM: 800 MHz

Status Indicators

Port status, power

Expansion / Connectivity

Interfaces

24 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+ ¦ 2 x 10GBase-T RJ-45

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Miscellaneous

MTBF

123 years

Compliant Standards

IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class A, CISPR 32:2015 Class A, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KN35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3

Dimensions & Weight

Width

44.25 cm

Depth

35.05 cm

Height

4.395 cm

Weight

3.9 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

15 - 95% (40 °C)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C
